Overview:

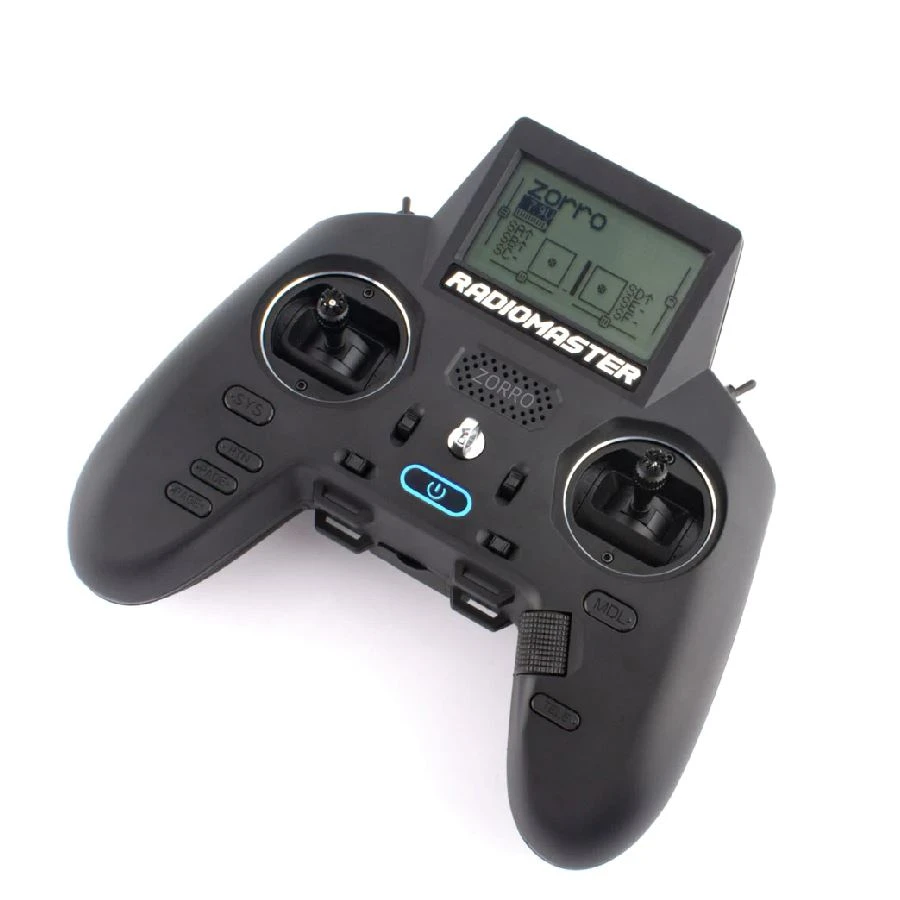

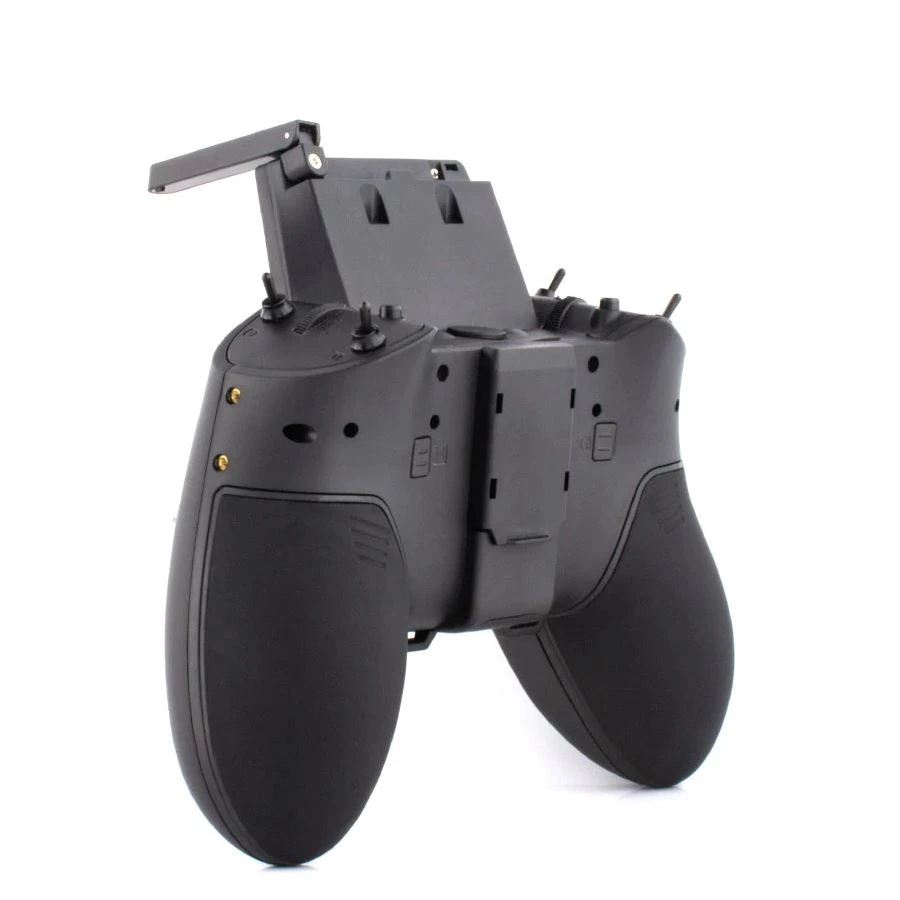

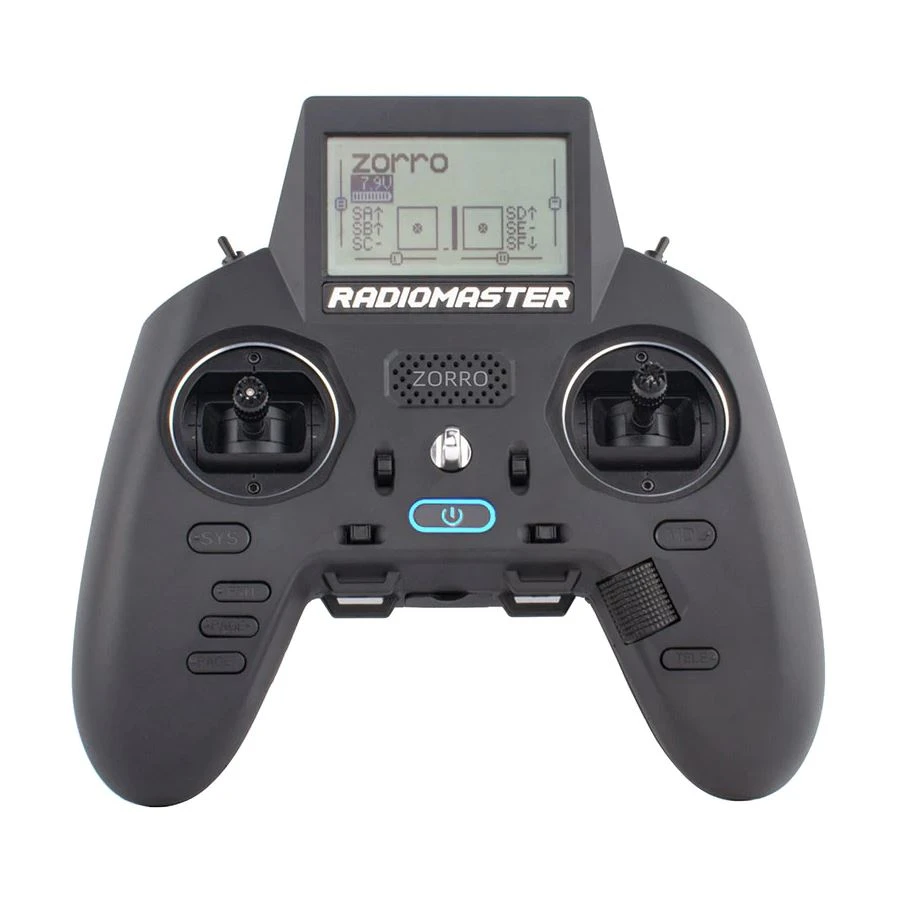

The Radiomaster Zorro features an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. This version supports only ELRS receivers/protocol
** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **
** Requires 2x 18350 button top cells (not included – see related items). Batteries will come pre-installed if ordered together **
Radiomaster ZorroFeatures:
– Switchable in Mode 1 and Mode 2 – Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
– Adjustable Hall Gimbals
– External Module Bay – Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
– ELRS module, compatible with ELRS receivers only (firmware needs to match)
– 18350 Battery Compartments
– Battery Charging – Supports USB-C Directing Charging
– Supports External 2S Battery Power Supply
– Oversized LCD & Foldable Antenna
– Ergonomically Designed
– Physical Dimensions 170*159*108mm
– Weight: 350g
– Operating Frequency:2.400GHz-2.480GHz
– Antenna Gain: Folding 2db
– Operational Current: [email protected]
– Operational Voltage: 6.6-8.4v DC
– Control Distance: > 2km @ 20dbm
– Operating system: OpenTX / EdgeTX Compatible
– Control channels: Maximum 16 (Rx dependent)
– Display: 128*64 Monochrome LCD
– Battery: 2 x 18350 (Not included)
– Charging: Built in USB-C Charging
– Gimbal: Hall-effect
– Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
– Firmware Upgrade Method: Via USB or SD card
Included:
– 1x Radiomaster Zorro Transmitter (ELRS Only) MODE 2
