RushFPV Blade 60A Racing 4in1 ESC (20mm)

Overview:

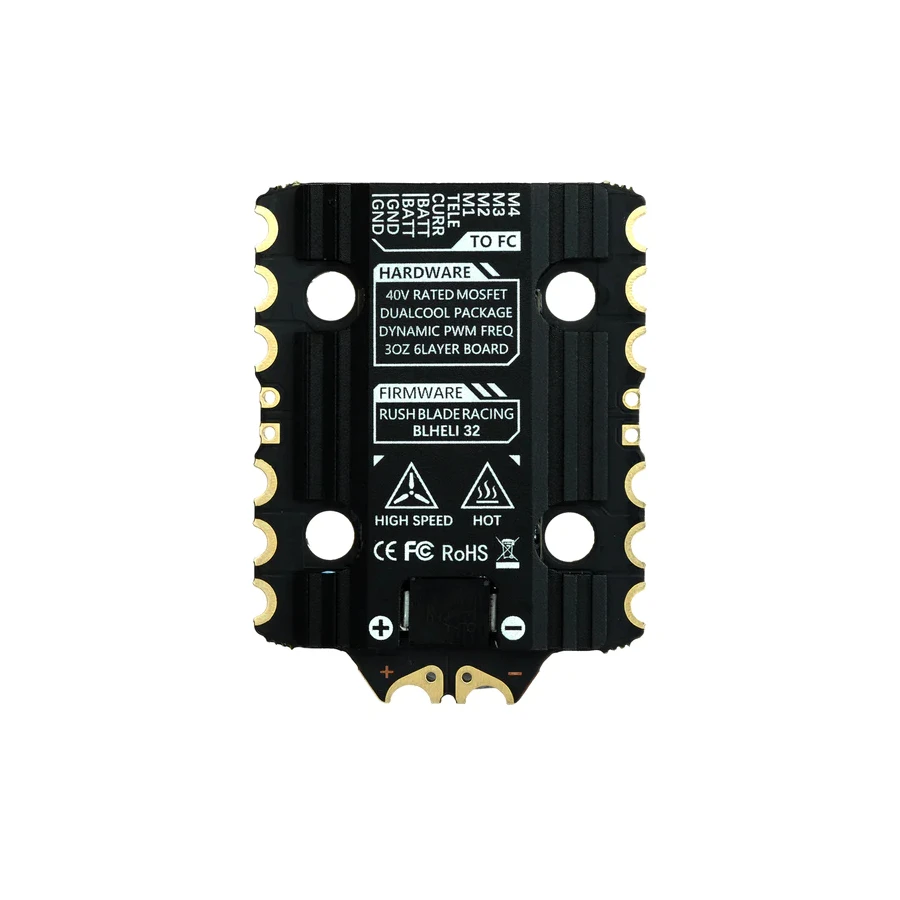

The RUSH Blade 60A Racing 4in1 ESC is a 20×20 mounted 4in1 ESC made by RUSHFPV. It supports upto 128KHz drive frequency and is rated at 60A.

Features:
– BLHeli_32 firmware is the third generation of BLHeli firmware, following base BLHeli and BLHeli_S.
– Supports up to 48K PWM frequency, so the response speed is faster and smoother, reducing mid-throttle oscillations.
– Equipped with double-sided lightweight metal armor to avoid hardware damage caused by crashes, and the armor can effectively assist the MOSFET to dissipate heat.
– Double PCB board design, high current circuit, and signal circuit are independent of each other.
– All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.
– Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
– Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up, No need for throttle calibration.
– Supports beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding a lost drone.

Specifications:
– Current Rating: 60A
– Mounting: 20mm x 20mm
– Battery: 3-6V Lipo
– PWM Freq: 24-48K
– Weight: 15.5g
– Size: 45x33x9mm

Included:
– RushFPV Blade 60A Racing 4in1 ESC (20mm)
– Accessories
