RushFPV Blade F722 FC Analogue

Overview:

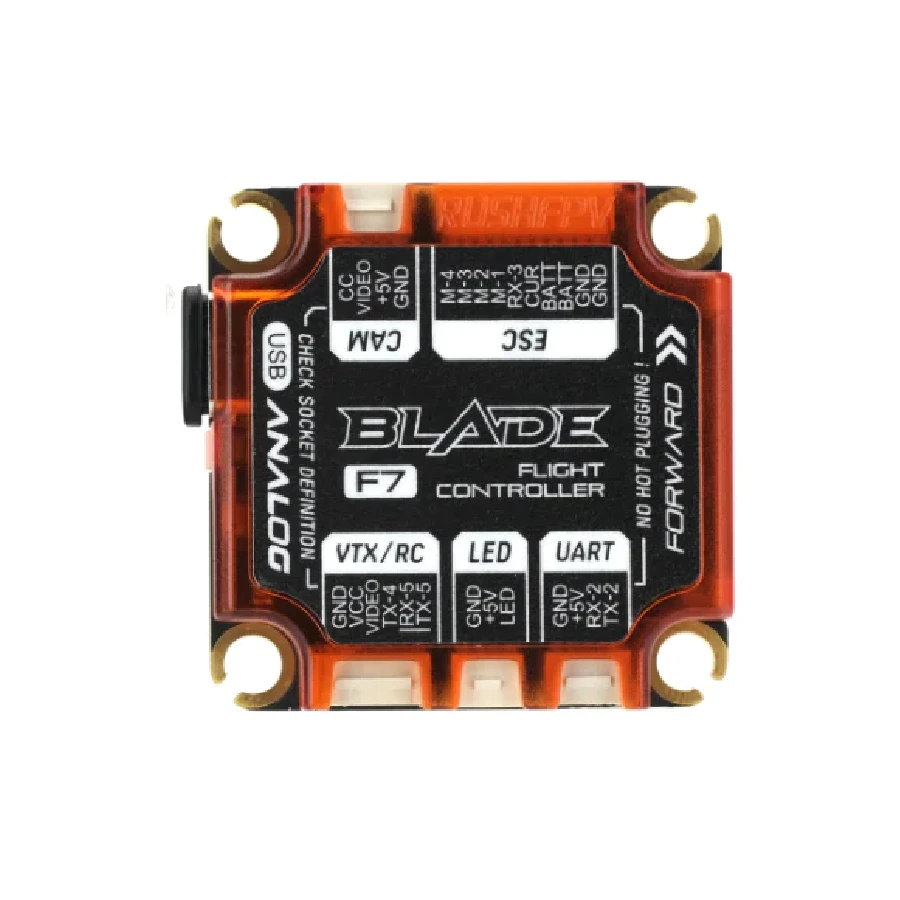

The RUSH BLADE F722 Analogue is a 30.5×30.5 mounted Flight Controller by RUSHFPV. It is compatible with Analogue FPV video systems. This FC features high-performance STM32 F722 MCU, ICM42688P Gyro, 16Mb Black Box memory and barometer.

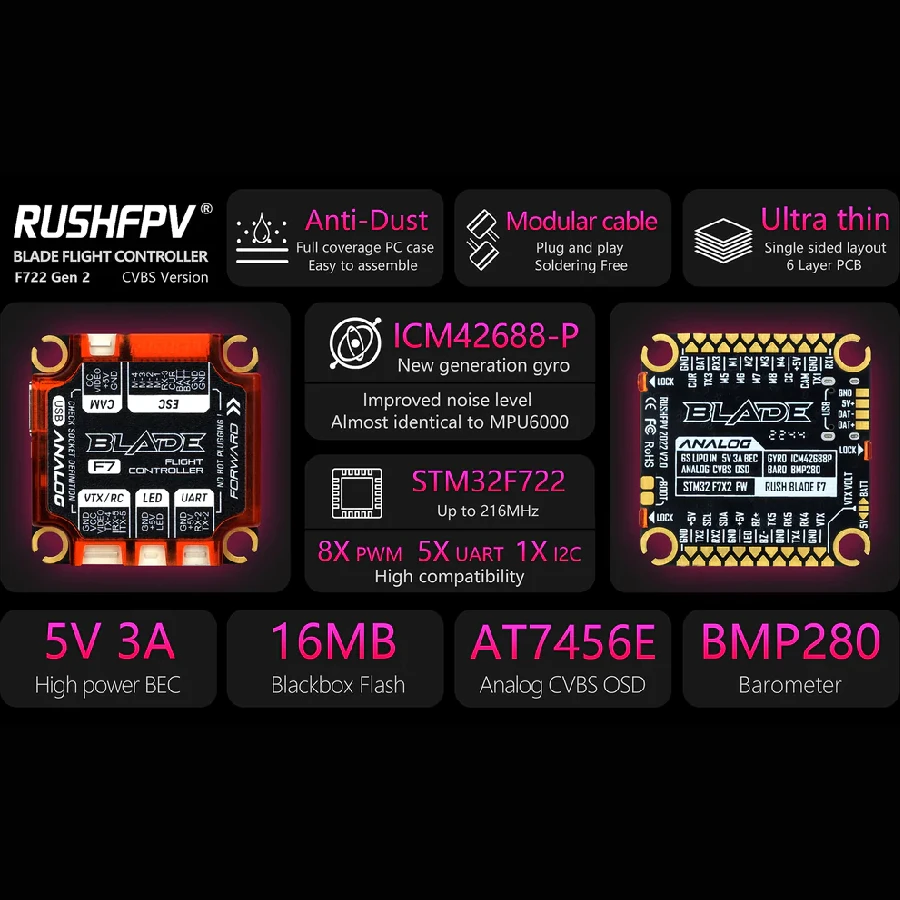

Features:

– High-performance STM32 F722 MCU with speeds up to 216MHz.
– ICM42688P gyroscope, independent low-noise power supply.
– Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port.
– High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
– Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
– Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
– PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specifications:
– MCU STM32F722RET6
– Gyro ICM42688P
– OSD AT7456E
– Blackbox Logging: 16Mb
– BEC Input: 7-36V / 3-6S LIPO
– BEC Output: 5V 3A
– Ports: 8×PWM 5×UART 1×I2C
– ADC: V-BATT / CURR-ESC
– Barometer: BMP280
– Size: 36.5mm*37mm*5.2mm
– Mounting Holes: 30.5*30.5mm
– FC Target: RUSH_BLADE_F7
– Weight: 11g(without cable)

Included:
– RushFPV Blade F722 FC Analogue
– Accessories
