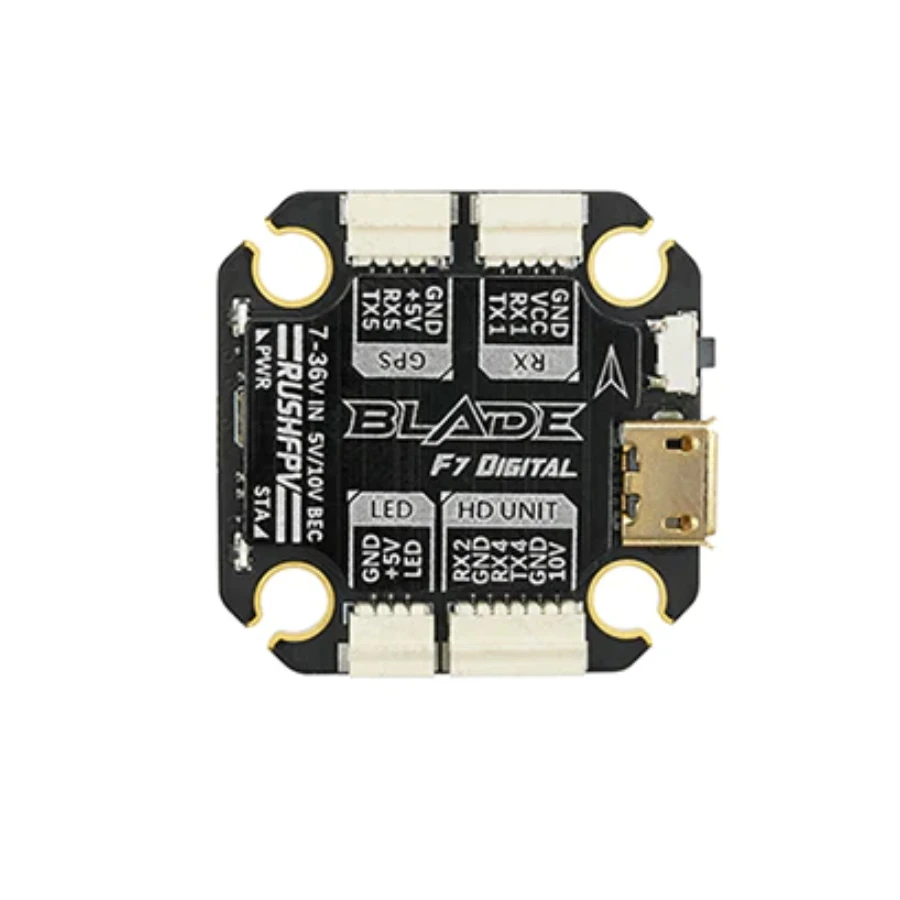

RushFPV Blade F722 Mini FC Digital

Overview:

The RUSH BLADE F722 Digital Mini is a 20×20 mounted Flight Controller by RUSHFPV. It is compatible with Digital FPV video systems like DJI, Walksnail, HDZero etc. This FC features high-performance STM32 F722 MCU, MPU6000, 16Mb Black Box memory, and barometer.

Features:
– High-performance STM32 F722 MCU with speeds up to 216MHz.
– Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
– Built-in 16Mb black box memory, Barometer, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 l2C port.
– Integrated dual 36V input synchronous rectifier power supply, and built-in power filter, up to 6S lipo battery power supply, 5V 2A /10V 1.5A output provides sufficient power, you can connect more external devices.
– Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
– Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
– The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Specifications:
– MCU: STM32 F722 RET6 216MHz
– GYRO: MPU6000
– Blackbox: 16Mb SPI Flash
– Input Voltage: 7-36V (3-6S)
– BEC Output: 5V/2A 10V/1.5A
– Ports: 6 x PWM, 5 x UART, 1 x I2C
– LED: Supports WS2812 LED Strip
– Mounting Holes: 20x20mm
– Dimensions: 29mm x 29mm x 6.8mm
– Weight: 5g (Without Cables)
– Firmware Target: Rush_Blade_F7_HD

Included:
– RushFPV Blade F722 Mini FC Digital
– Accessories
