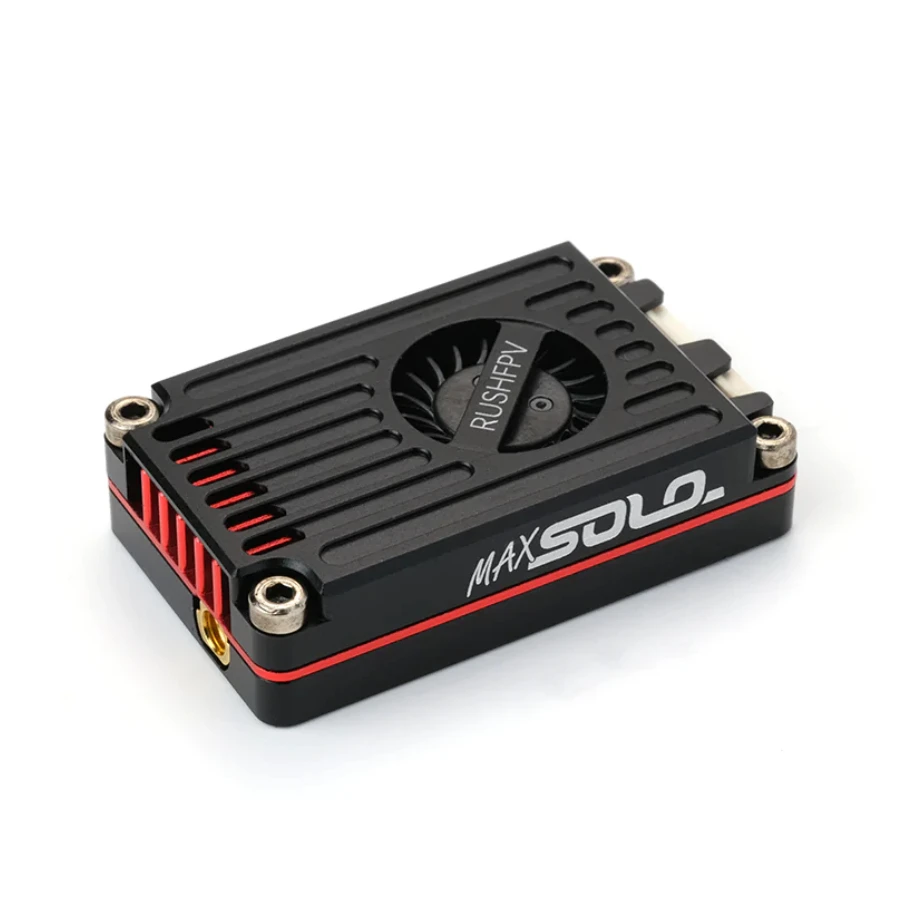

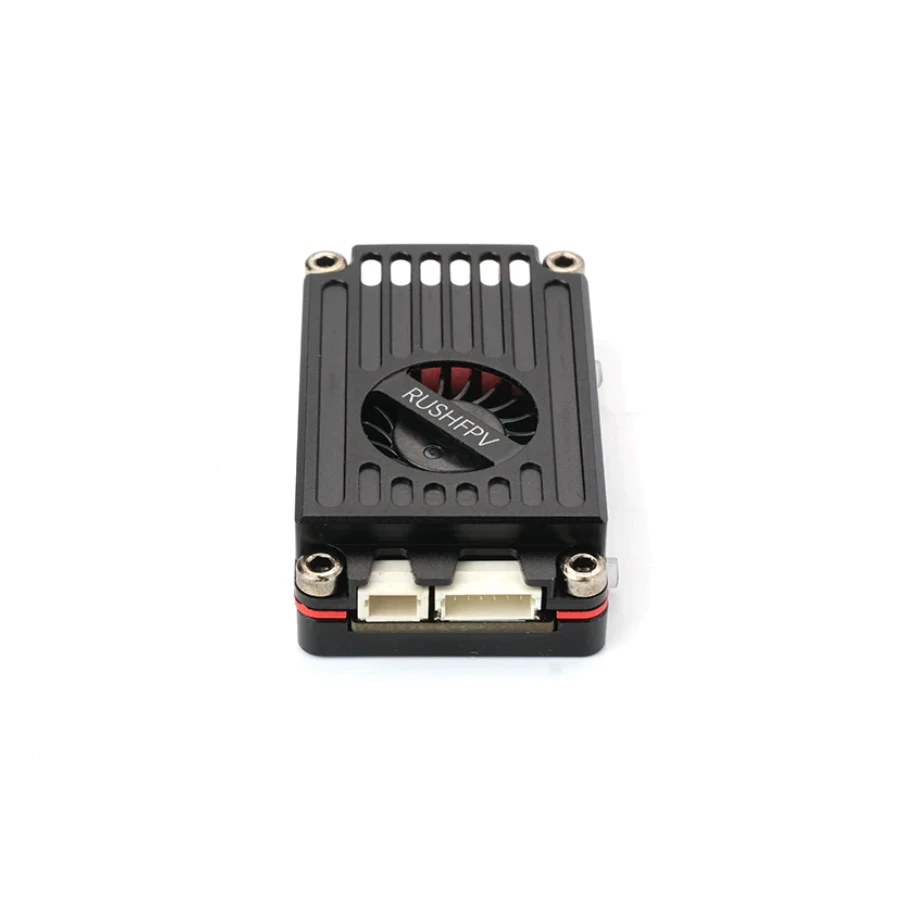

RushFPV Max Solo VTX

Overview:

The RushFPV Max Solo VTX is a high power analogue 5.8GHz video transmitter. The transmitter was designed for extreme long range pilots. The VTX features an Aluminium heatsink and built in fan to help disipate heat. The RushFPV jitter-free technology ensures jitter-free transmition channels with no sweep interference when flying near other pilots. The Max Solo features a low noise DC-DC power supply to help filter the video signal and keep the video signal clean.

Specifications:

– Channels: 48CH
– Input: DC 7-36V
– Output: DC 5V (max 500mA)
– Video In: CVBS PAL/NTSC
– Audio In: 6.5M MONO
– Antenna Connector: MMCX
– Size: 40mm x 24mm x 10.5mm
– Weight: 15g
– External Control: Smart Audio

Included:
– RushFPV Max Solo VTX
– Accessories (Pigtail, Linear Antenna, Cables)

IMPORTANT:

Never turn on your transmitter without an antenna connected! Doing so can cause irreparable damage and as such we cannot accept returns on any transmitter damaged in this way.

LEGAL NOTICE:

We strongly advise you to make yourself aware of any laws in your own country related to the maximum radio transmission power on this 5.8Ghz module as usage of this transmitter may not be legal. You may need to use an attenuator to lower the transmission power of your module to conform with these laws.
