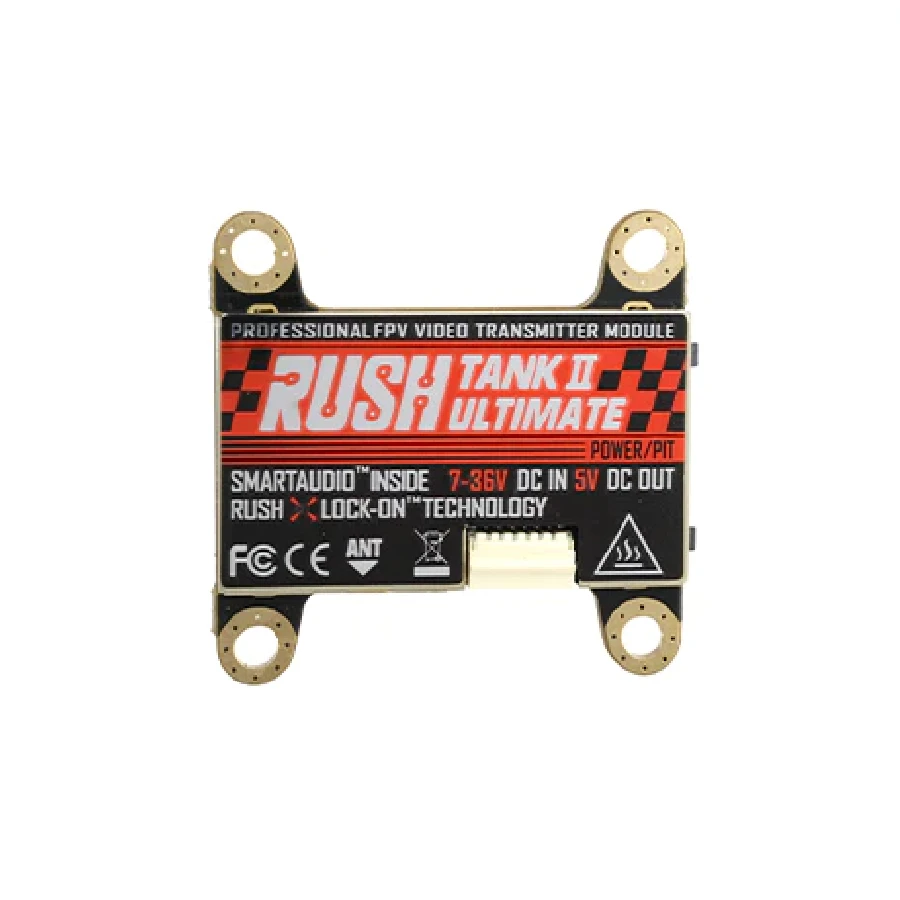

RushFPV Tank II Ultimate VTX

Overview:

The RushFPV Tank II Ultimate VTX is a 5.8GHz analogue VTX with metal casing. The VTX has multiple power modes and is designed to filter out noisey power supplies to provide the cleanest video feed possible. The Tank II VTX has smart audio built in allowing the video channel to be changed by supported flight controller.

The Tank II VTX has 30.5mm mounting holes so can be directly mounted on a stack or used standalone.

Features:
– Four adjustable levels of transmitting power. (PIT/25/200/500/800/mW) The superior performance of Tank Racing
– VTX allows 8 quads to race in the same band, without interference.
– Side LED indicators to mean more intuitive status reading.
– Impregnable: The newly designed power filtering system allows TANK RACING VTX to work stably with any power system within its limits without interference from the power supply.
– Power LUT: Built-in high precision power lookup table which performs milliwatt power calibration for all channels. Full band has it’s own unique power output. In multi-pilot flight, all pilots will benefit from this and obtain a fair and consistent signal.
– LOCK-ON: Frequency drift is completely eliminated, the full frequency band power is constant, 8 pilots compete at once easily.
– Silent setting: The intelligent transmit circuit of TANK will not generate any interference signal during the switching and setting of VTX.
– SmartAudio protocol authorized by TBS. This can be set with RGB LEDs by conventional double buttons, which can then access SmartAudio to set up and view the VTX information via the OSD menu.
– Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don’t worry about disturbing others.
– Tank Armor: Under the fully covered metal case there are 6 layers of PCB after waterproofing work. VTX is fully protected, avoiding external
interference and achieving ultra-high heat dissipation efficiency.
Simple installation, Intuitive operation.

Specifications:

– Channels: 48CH
– Input: DC 7-36V
– Output: DC 5V (max 1A)
– Video In: CVBS PAL/NTSC
– Audio In: Supported
– Power: PIT/25/200/500/800 mW
– Antenna Connector: MMCX
– Size: 36mm x 36mm x 4.5mm
– Weight: 6.8g
– External Control: Smart Audio

Included:
– RushFPV Tank II Ultimate VTX
– Accessories (MMCX to SMA Pigtail, Cable)

IMPORTANT:

Never turn on your transmitter without an antenna connected! Doing so can cause irreparable damage and as such we cannot accept returns on any transmitter damaged in this way.

LEGAL NOTICE:

We strongly advise you to make yourself aware of any laws in your own country related to the maximum radio transmission power on this 5.8Ghz module as usage of this transmitter may not be legal. You may need to use an attenuator to lower the transmission power of your module to conform with these laws.
