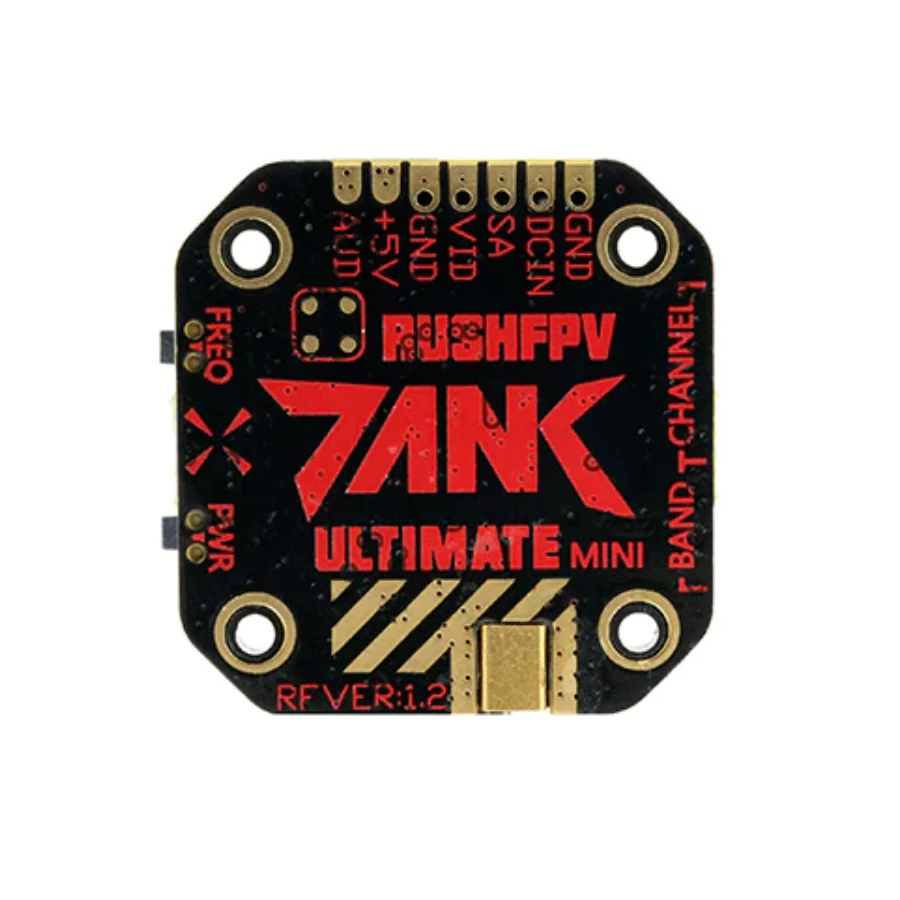

RushFPV Tank Mini VTX

Overview:

The RushFPV Tank Mini VTX is a compact analogue 5.8GHz video transmitter with 20mm mounting holes. The VTX features multiple power outputs and includes TBS smart audio to allow a configured flight controller to adjust the channels. The Tank Mini also includes buttons to change channel and band.

Features:
– Compact Robust Design
– Variable Output from 25 to 800mW
– Pit Mode
– Officially Licensed Smart Audio from TBS
– Optional Protective Shield Included

Specifications:

– Channels: 48CH
– Input: DC 7-36V
– Output: DC 5V (max 1A)
– Power: PIT/25/400/800 mW
– Video In: CVBS PAL/NTSC
– Antenna Connector: MMCX
– Size: 28mm x 28mm x 3.3mm
– Weight: 4.46g
– External Control: Smart Audio

Included:
– RushFPV Tank Mini VTX
– Accessories (Linear Antenna, Cables, Plastic Cover)

IMPORTANT:

Never turn on your transmitter without an antenna connected! Doing so can cause irreparable damage and as such we cannot accept returns on any transmitter damaged in this way.

LEGAL NOTICE:

We strongly advise you to make yourself aware of any laws in your own country related to the maximum radio transmission power on this 5.8Ghz module as usage of this transmitter may not be legal. You may need to use an attenuator to lower the transmission power of your module to conform with these laws.
