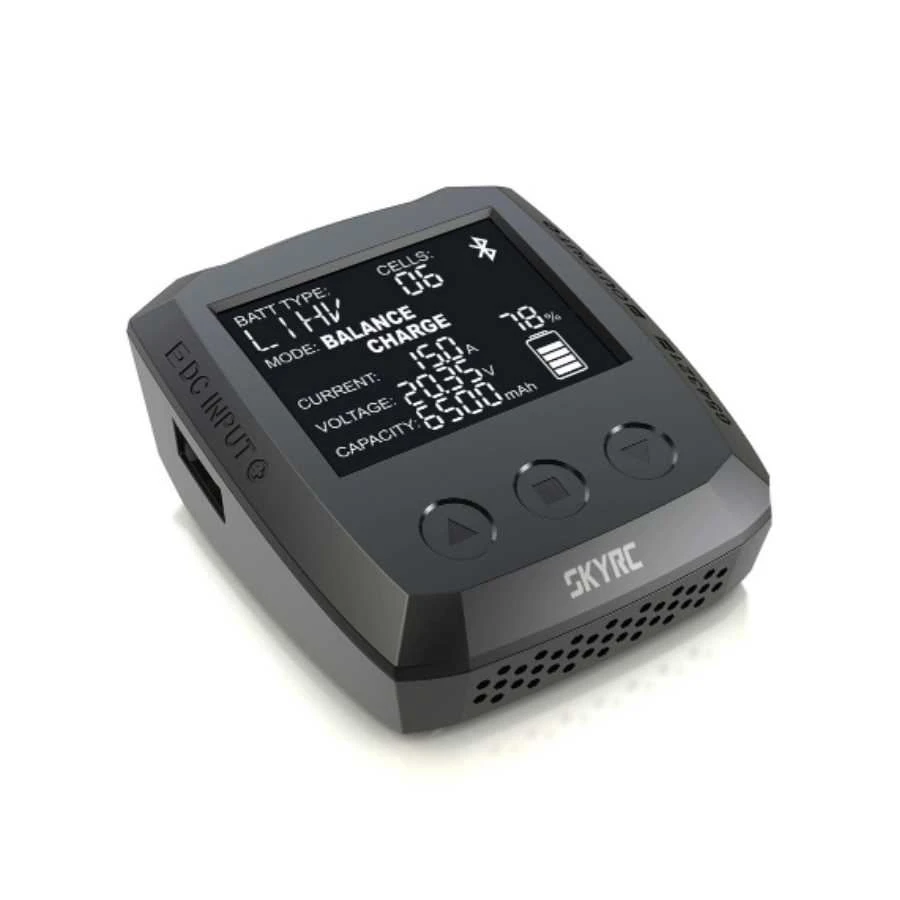

SkyRC B6 Nano 320W Charger

Overview:

SkyRC B6 Nano is a 9-32V DC powered charger capable of charging at 320W. The B6 Nano supports multiple battery chemistries including LiPo/LiIon/LiFe/LiHV 1-6S and NiMH/NiCd 1-15S. The B6 nano is very small at only 76x85x37mm and weighs only 130g. The charger features 3 capacitive touch buttons for quick-response and ease of operation. The B6 Nano also allows monitoring via a mobile phone (android or apple) supported and supports over the air updates.

** Requires Suitable AC>DC adaptor (not included) to power, or can be powered from a larger battery with XT60 connector for in the field charging **

Features:

– Dimensions – 76 x 85 x 37mm
– Net Weight – 130g
– Input Voltage – DC 9-32V
– Charge Circuit Power – 320W max
– Discharge Circuit Power – 5W
– Charge Current Range – 0.1A- 15A
– Discharge Current Range – 0.1A – 3.0A
– LiPo/LiFe/Lilon/LiHV Battery Cell Count – 1-6S
– NiMH/NiCd Battery Cell Count – 1-15S
– Bluetooth for mobile connectivity

Included:

– SkyRC B6 Nano DC Charger
– 1x XT60 Cable

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
