SkyRC B6 Nex 200W/50W DC/AC Battery Charger

Overview:

Specifications:

– With dual AC/DC power input, this charger is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. Protection is built-in such as high/low input voltage, and input/output reverse, reverse polarity protection.

– Size and Weight:
– Case Material: Plastic

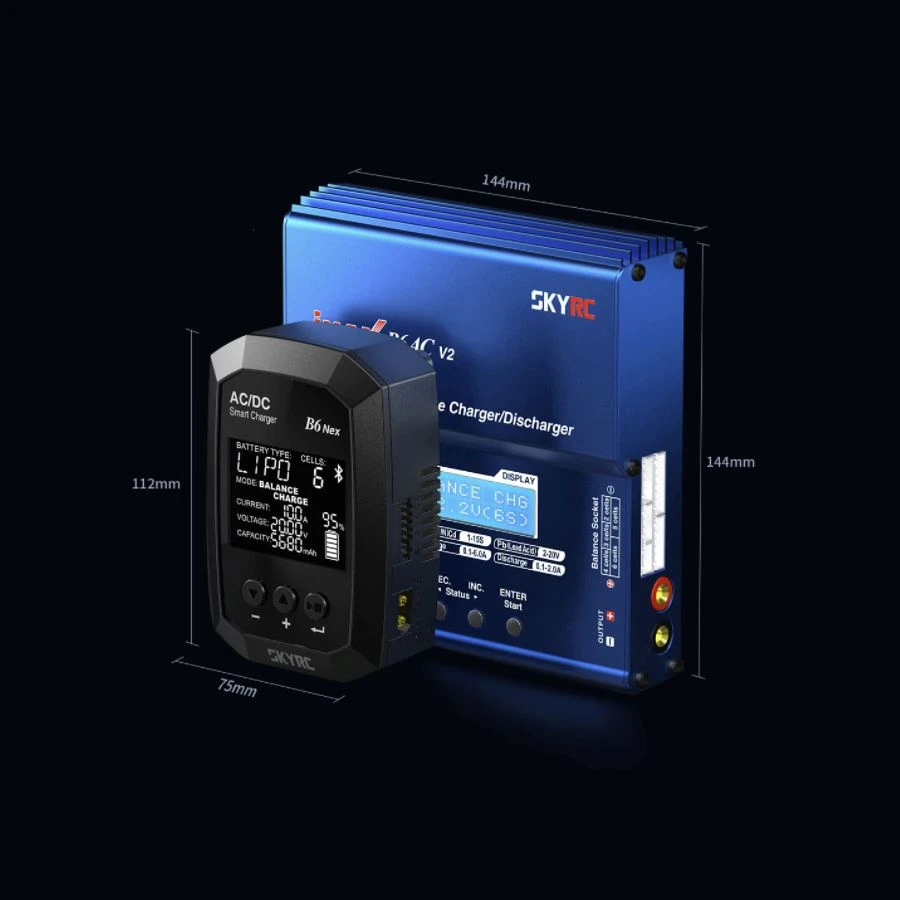

– Case Size: 112x75x38mm
– Weight: 237.7g

– Display:
– Type: VA LCD
– Buttons And Port

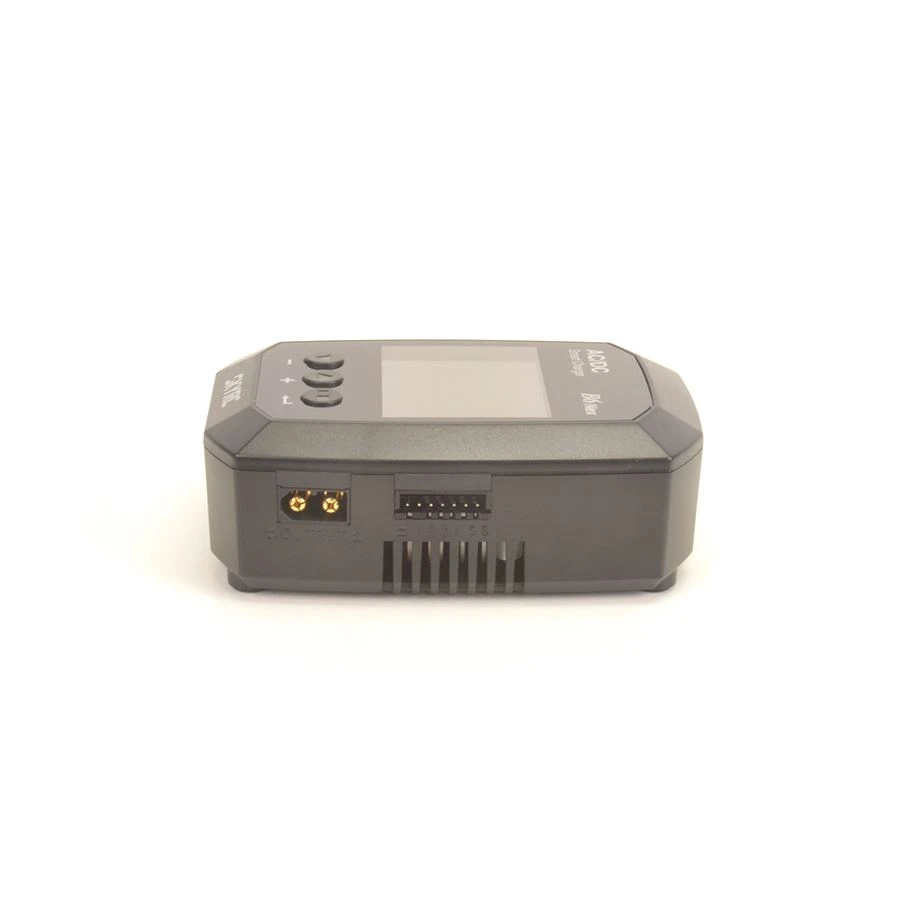

– External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input, AC Input
– Buttons: Increase Button, Decrease Button, Start/Stop Button

Power:
– DC Input : 10-30V
– Charge: 200W
– Discharge: 10W
– AC Input: 100-240V(50-60HZ)
– Charge: 50W
– Discharge: 10W

Battery:
BatteryTypes/Cells:
– LiPo/LiIon/LiFe/LiHV: 1-6cells
– NiMH/NiCd: 1-15cells
– Pb: 1-10S(2-20V)

Battery Capacity Range:
– NiMH/NiCd: 100-50000mAh
– LiPo/LiIon/LiFe/LiHV: 100-50000mAh
– Pb: 100-50000mAh

Charge and Discharge:
– Charge Voltage:
– NiMH/NiCd: Delta peak detection
– LiPo: 4.18-4.25V/cell
– LiFe: 3.58-3.7V/cell
– Pb: 2.4V/cellLiIon: 4.08-4.2V/cell
– LiHV: 4.25-4.35V/cell
– AGM/COLD: 2.45V/cell

Discharge Cut-off Voltage:
– NiMH/NiCd:0.1-1.1V/cell
– LiPo: 3.0-3.3V/cell
– LiFe: 2.6-2.9V/cell
– Pb: 1.8V/cellLiIon: 2.9-3.2V/cell
– LiHV: 3.1-3.4V/cell

– Charge Current: 0.1A-10.0A
– Discharge Current: 0.1A-2.0A
– Balance Cells: 1-6 cells
– Balance Current: 1000mA/cell Max
– Safety Timer: 1-720minutes off
– Charge Method:CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Included:

– SkyRC B6 Nex AC/DC Battery Charger
– UK Plug

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
