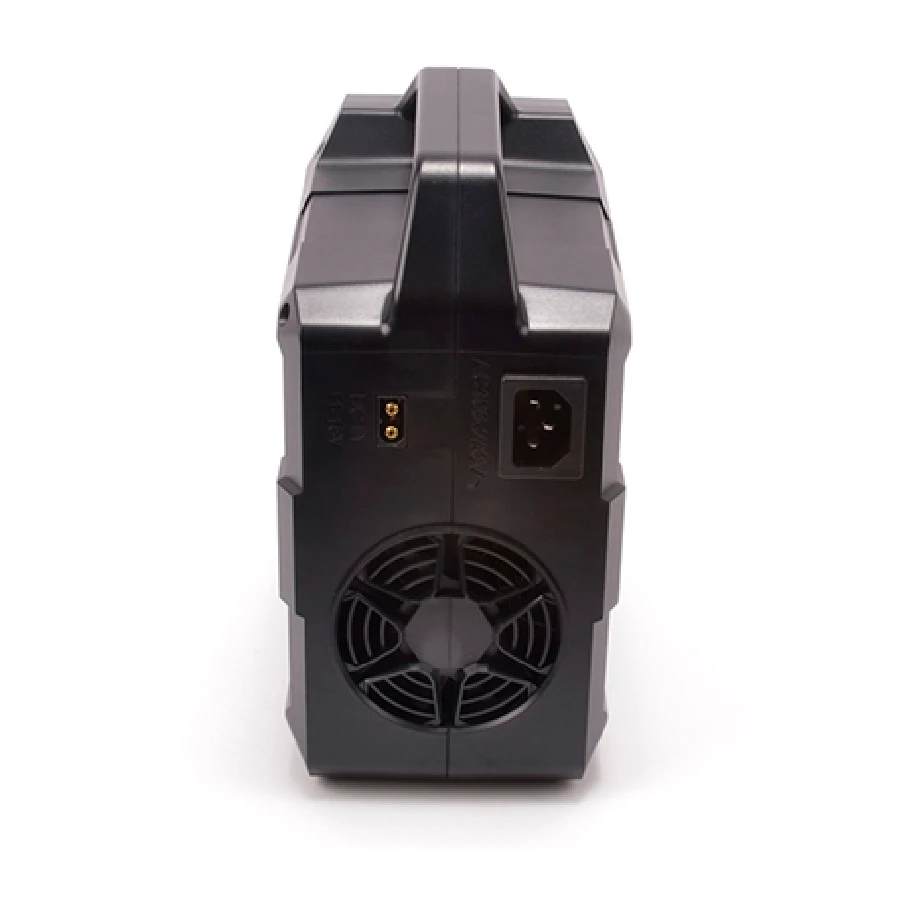

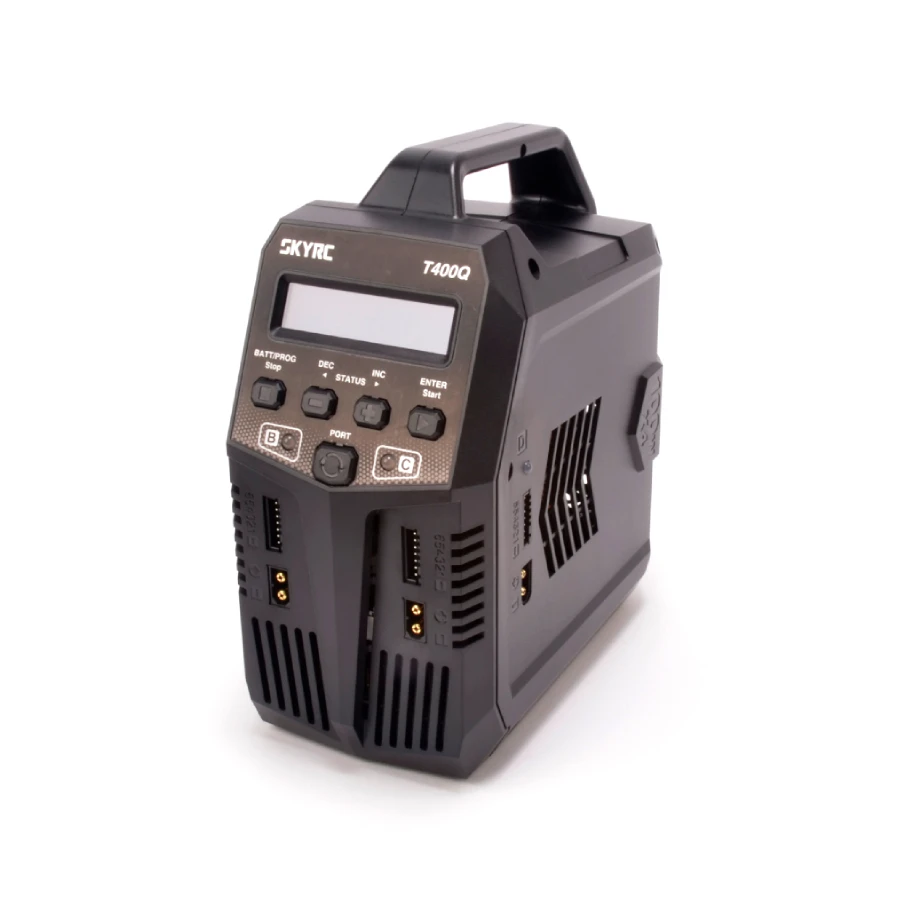

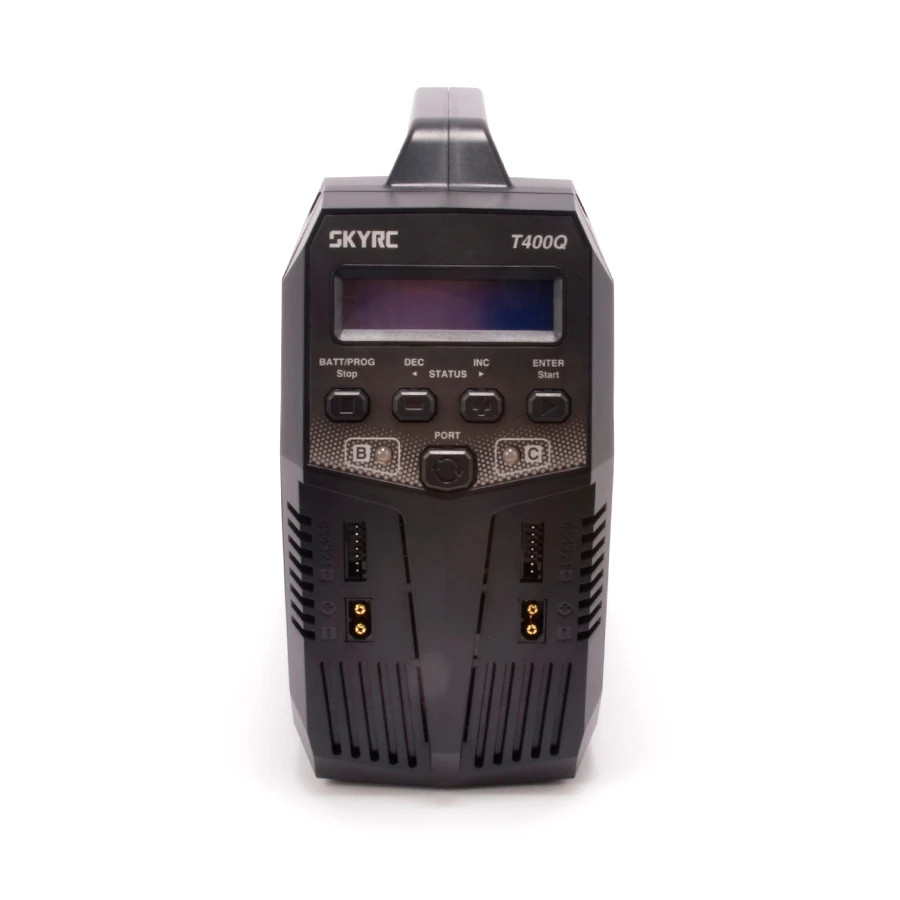

SkyRC T400Q 4CH 400W AC/DC Charger

Overview:

The SkyRC T400Q has a classic, minimal, sleek vertical tower design. The T400Q frees up more bench space for RC hobbyists to tweak gadgets by taking the footprints of a pair of battery packs.
T400Q can simultaneously deliver up to 100 watts and 12 amps per charging circuit. The total charging power is 400 watts. It allows hobbyists to get prepared in the shortest time, whether charging the receiver’s battery or up to 6s Lithium battery packs and 15s NiMH/ NiCd packs.

The SkyRC T400Q is a multi-chemistry Quattro balance charger/discharger with four independent circuits that can work simultaneously. Its charging algorithm suits the most common battery chemistries in the market, such as LiPo, LiIon, LiHV, LiFe, NiMH, NiCd, and Pb (lead-acid).

Features:

– 4 independent charging channels.
– 4x 100W charging power and maximum 12.0A charging current.
– 10 Battery memories.
– High-contrast LCD display.
– Easy operation.
– XT-60 connector on charging outputs
– XH balancer connector.
– Various safety monitoring.

Specifications:

– Input Voltage AC: 100V – 240V.
– Input Voltage DC: 11V-18V.
– Charge Circuit Power max: 4x 100W.
– Discharge Circuit Power max: 10W.
– Charge Current: 0.1A – 12.0A (Subject to Watts limit)
– Discharge Current: 0.1A – 2.0A.
– Balance Current max: 500mA.
– Cell Count: LiPo/LiFe/LiIon/LiHV 1s – 6s.
– Cell Count: NiMH/NiCd 1s – 15s.
– Pb Voltage: 2V – 20V.
– Weight: 1610g.
– Dimension: 186x103x209mm.

Included:

– SKYRC T400Q AC/DC 400W Charger
– UK Mains Plug

** NO CABLES INCLUDED, Direction connection via XT60 cable + balance cable supported. For non-XT60 applications a custom cable will need to be ordered **

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
