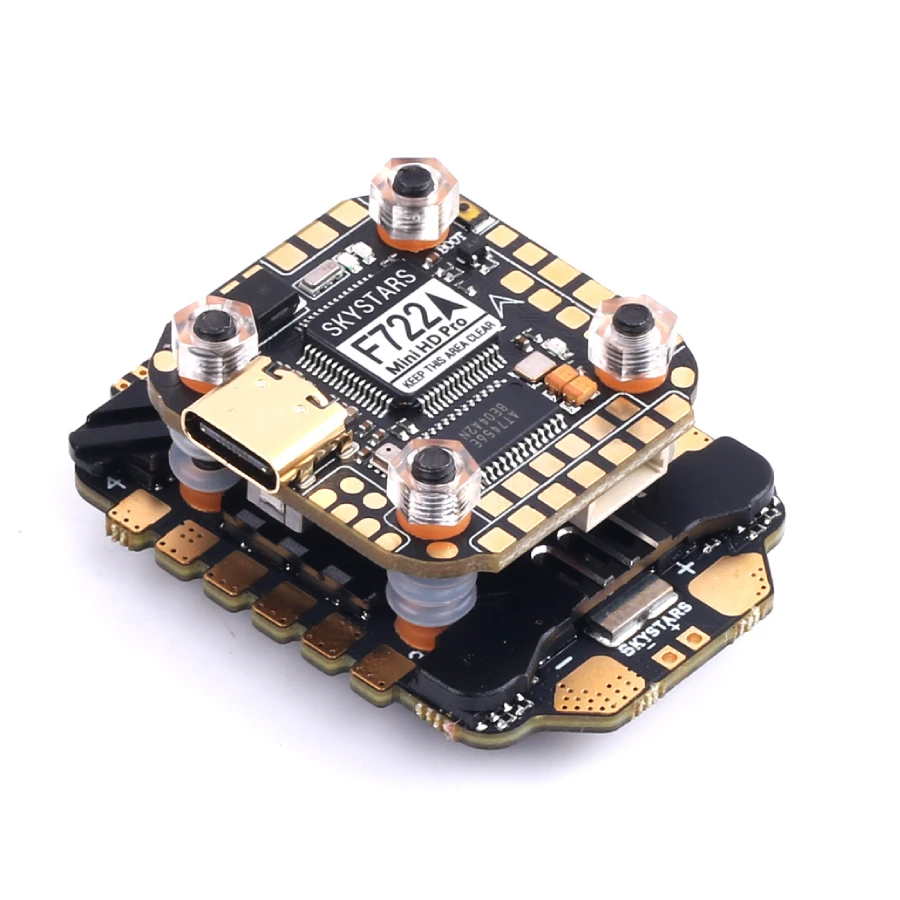

Skystars F7 HD FC + KM55 55A 4in1 ESC Stack (20mm)

Overview:

The Skystars KM55 4in1 55A ESC and F7 Flight controller stack is a 20x20mm mounting stack suitable for 3-6S voltages. The KM45 ESC supports 3-6S and includes high quality Mosfets. It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc.

The Skystars F7 HD flight controller supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. It features a high speed F7 processor and has 6 uarts for connecting peripherals.

ESC Specifications:

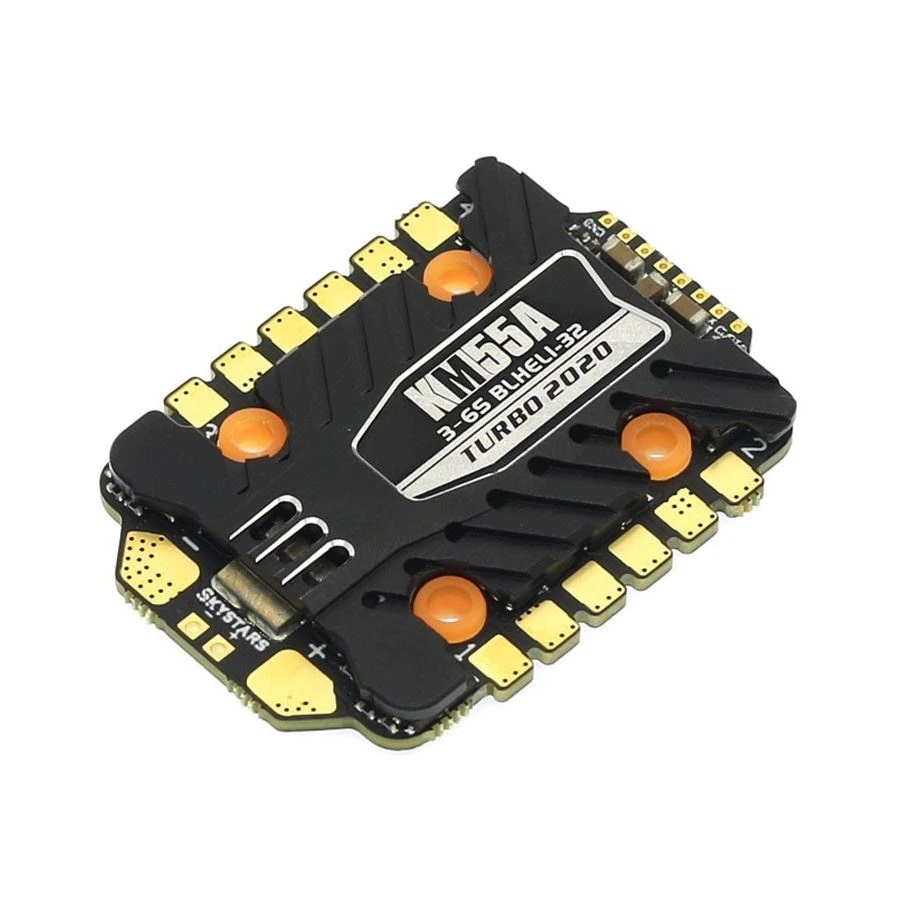

– Skystars KM55 55A 3-6S 4 in 1 ESC
– Input voltage: 3-6S LiPo
– Con.Current: 55A
– Peak Current: 70A ≥ 10S
– Firmware: BLHeli_32
– Support : Dshot 600/1200
– Mounting hole : 20X20 mm/M3
– BEC: No
– Product size: 35*47*6.5mm
– Weight: 16.5g

Skystars F7 HD (20mm) FC Specifications
– SKYSTARS F7 HD 20X20 Flight Controller
– IMU:BMI270 (SPI)
– OSD: Betaflight OSD &  DJI HD OSD (UART6)
– 6 hardware UARTS (UART1,2,3,4,5,6)
– Barometer: YES
– Buzzer Pad: YES
– 5V 2A & 10V 2A
– Input Voltage: 3-6S Lipo
– Blackbox: 16MB
– Firmware: SKYSTARS F7HDPRO
– Dimensions: 31x30x7.8mm
– Mounting Holes: Standard 20mm/M3 or M2 square to center of holes
– Weight: 6g

Includes:
– 1x Skystars F7 HD Flight Controller (20mm)
– 1x Skystars KM55A 4in1 55A ESC
– Accessories (Wires, capacitor etc)
