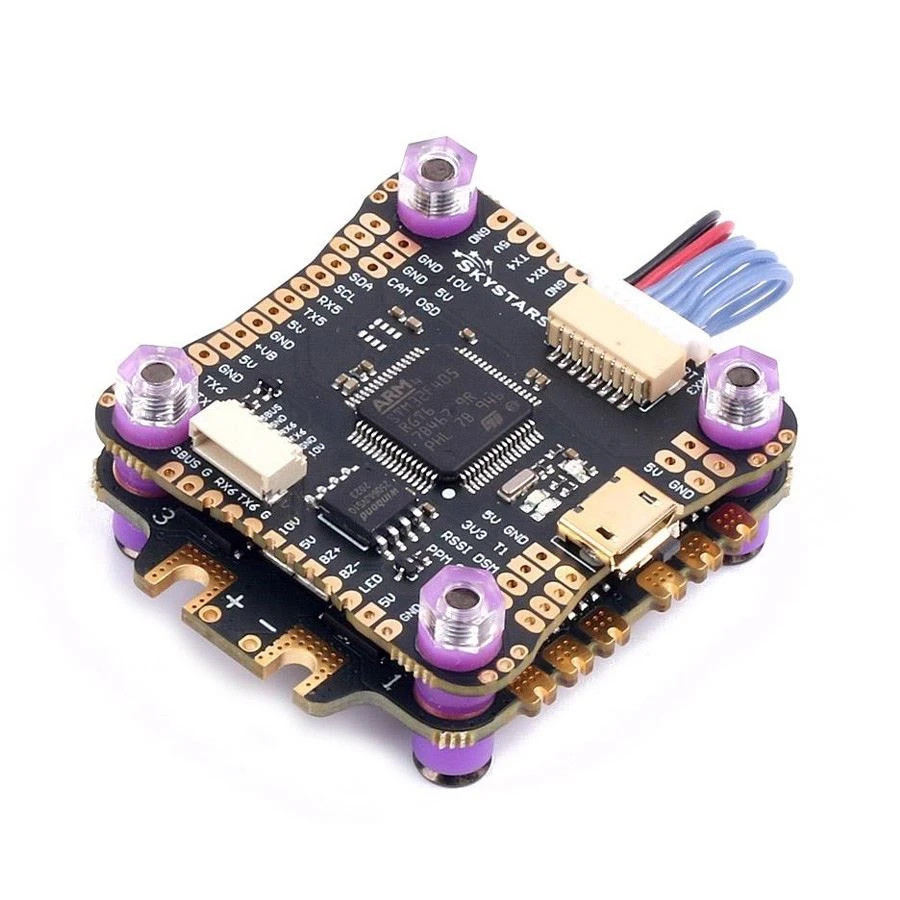

Skystars F7 HD FC + KO60 60A 4in1 ESC Stack

Overview:

The Skystars KO60 4in1 60A ESC and F7 Flight controller stack. The KO60 ESC supports 3-6S and includes high quality Mosfets, It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc.

The Skystars F7 HD Pro V3 flight controller supports the DJI air unit with a dedicated 10V output as well as traditional analogue video OSD. It features a high speed F7 processor and has 6 uarts for connecting peripherals.

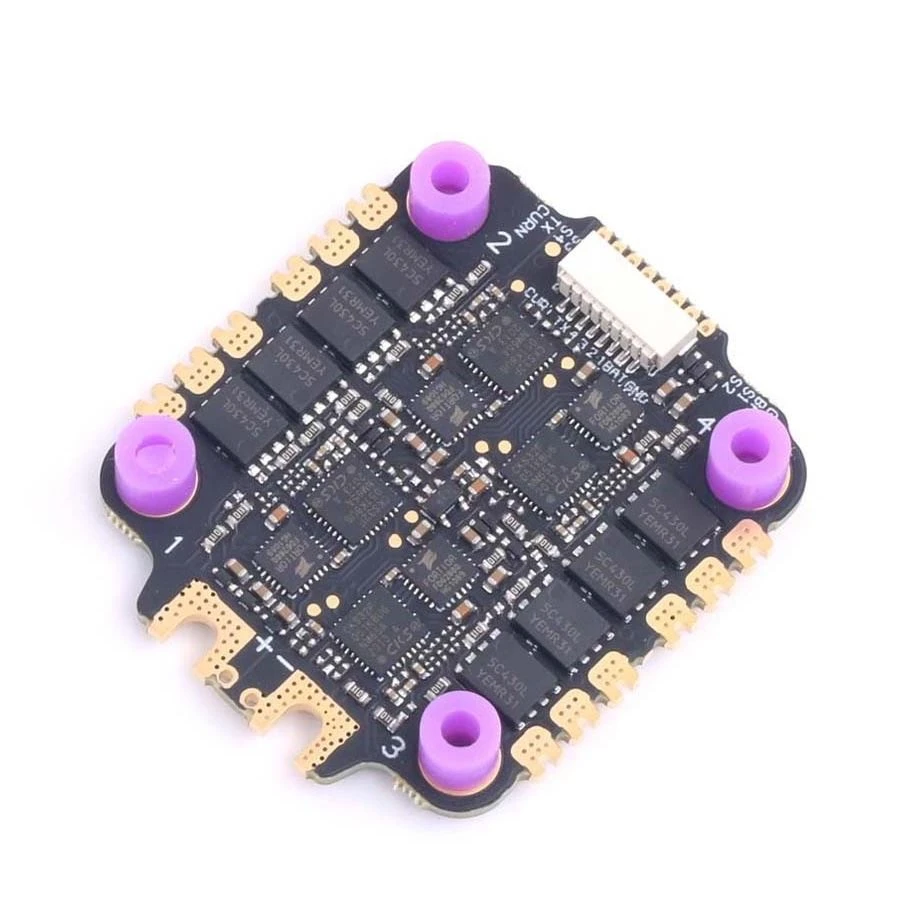

ESC Specifications:

– Skystar KO60 ESC
– The installation size is 30.5mm x 30.5mm. The installation hole is M4.
– ESC weight: 12g
– ESC onboard current sensor.
– Continuous current: 60A
– Instantaneous current [5 seconds]: 65A
– Drive signal: Dshot 300-1200 / Proshot1000 / Oneshot / Multishot / PWM
– MCU: STM32F051 Operation frequency: 48MHz
– Firmware: BLheli-32
– MOS tube model is NVMFS5C430L

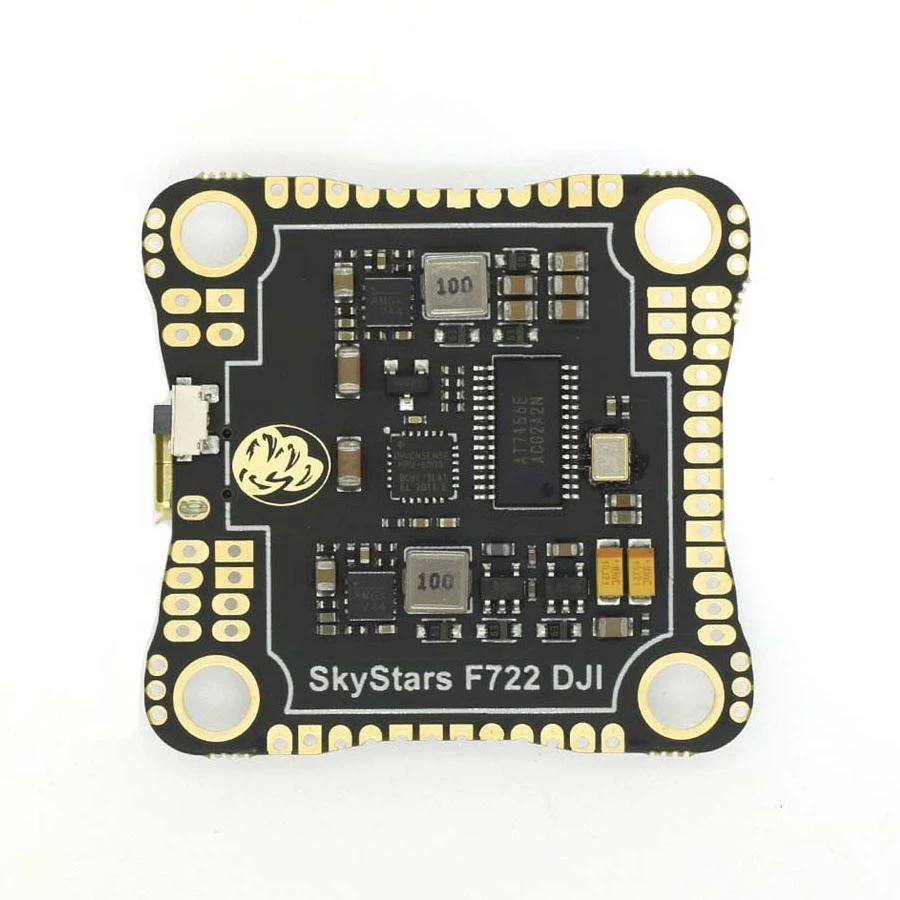

Skystars F7 HD Pro V3 FC Specifications
– Skystar F7 HD Flight controller
– Input Voltage: 3-6S LiPo (11.1V ~ 22.2V)
– MCU: STM32F722RGT6 216MHz
– IMU: BMI270 (SPI)
– Baro: BMP280
– OSD: Betaflight OSD & DJI HD OSD (UART6)
– BEC Output: 5V 3A & 10V 3A
– RSSI Pad: Yes
– Buzzer Pad: Yes
– CURR Pad: Yes
– Blackbox: 16MB
– Firmware: SKYSTARS F7HD
– 6 hardware UARTS (UART1,2,3,4,6)
– Dimensions: 39x439x6.2mm
– Mounting Holes: Standard 30.5mm square to the center of holes
– Weight: 6.9g

Includes:
– 1x Skystars F7 HD Pro V3 Flight Controller
– 1x Skystars KM60A 4in1 60A ESC
– Accessories (Wires, capacitor etc)
