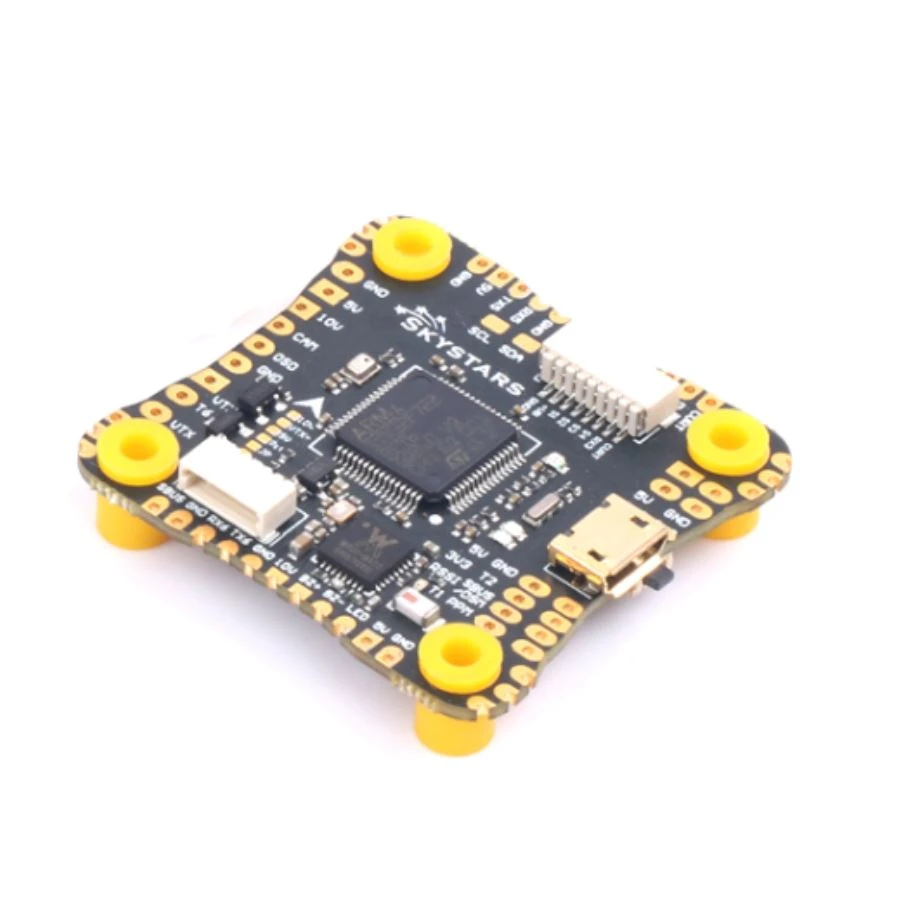

Skystars F7 HD Wifi Flight Controller

Original price was: $44.90.Current price is: $31.43.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The Skystars F7 HD Wifi flight controller supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. It features a high speed F7 processor and has 6 uarts for connecting peripherals. The flight controller features an innovative design which allows more of the F7 pins to be broken out to the outside of the board.

The F7 HD Wifi also features a wifi module that allows wireless in the field configuration via the SpeedyBee app.

** Please note the top pads on the flight controller are quite small so this board should only be purchased by customers who are experienced at soldering **

Skystars F7 HD Wifi FC Specifications
– MCU: STM32F722RGT6 216MHz 32BIT
– IMU: BMI270 (SPI)
– Barometer: BMP280
– OSD: Betaflight OSD & DJI HD OSD (UART6)
– 6 hardware UARTS (UART1,2,3,4,5,6,)
– Receiver: TBS/PPM/SBUS/IBUS/DSM
– ESC Telemetry: RX3
– Blackbox: 8MB
– ESC Soft: Dshot300/600/1200
– LED indicator: Blue for FC Status,Green 9V,Red 5V
– WIFI: SpeedyBee APP target name SKYSTARS F7
– Input voltage: 3-6S LiPo(11.1V~25V)
– LED Controller: 4 corner LED interface to support BF led
– RSSI Pad: YES
– Buzzer Pad: YES
– CURR Pad: YES
– Smartaudio: YES
– BEC 5V 2.5A & 10V 2.5A(Max 3A)
– Firmware: SKYSTARS F7HDPRO
– Dimensions: 38.5x40x6.2mm
– Mounting Holes: Standard 30.5mm square to center of holes
– Weight: 6.9g
Note:Since STM32F722 heat large , please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.
