Overview:

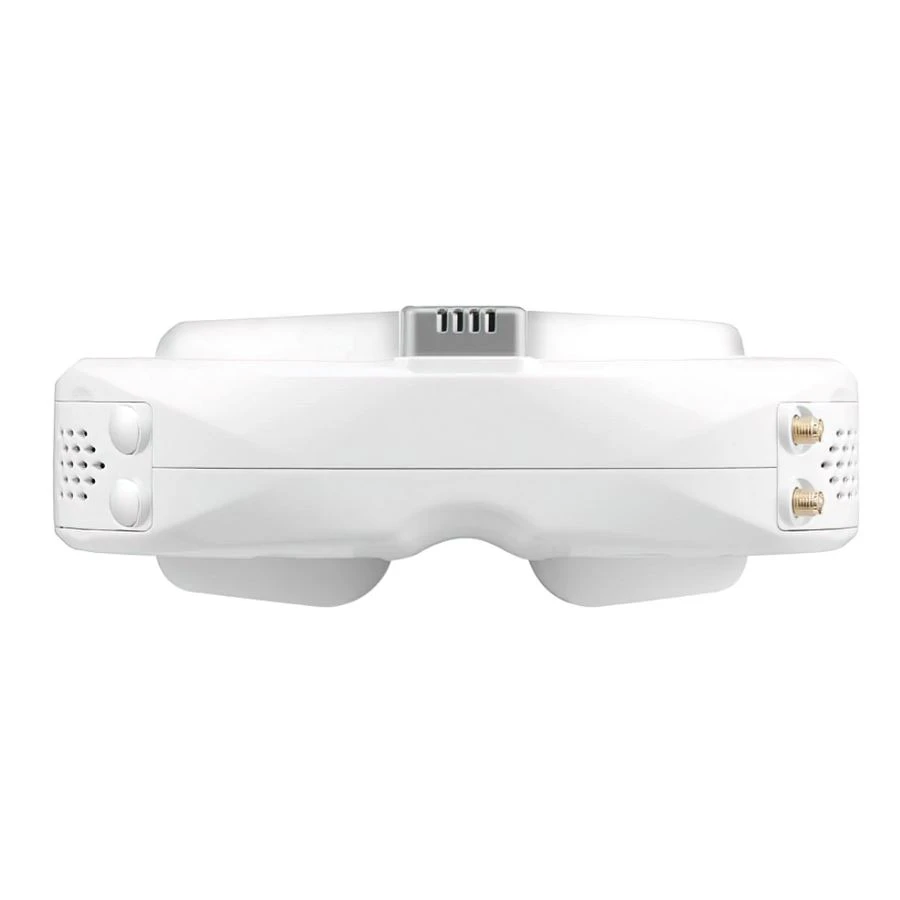

The Skyzone SKY04X V2 FPV goggles feature a 1280×960 high resolution OLED screen. The OLED screen means the image quality is vivid and high contrast so the pilot can see more details while racing compared to non-OLED screens. The goggles include newly designed optics with focus and IPD adjustment and a wide 46 degree field of view. The SKY04X includes a Steady View diversity receiver which merges the two received image into one helpping to avoid image tearing and rolling on weak signals.
The new colorful user interface has user-friendly menu navigation.
Features:
– 1280×960 OLED
– Advanced Screen Settings
– 46° Field of View Angle
– Shuttle Wheel Control
– SteadyView Receiver
– Focus Adjustment
– 60FPS DVR Unit
– 10 Languages
– New UI
Specifications:
– Resolution: 1280×960
– DVR: H264,60fps, MOV6Mbps, SD Card support up to128Gb
– Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
– Receiver: 5.8Ghz 48CH Steadyview Receiver
– Interpupillary distance(IPD): 58-71mm
– Power Supply: DC6.5-25.2V / USB5V
– Power Consumption: 720mA at 12V
– Dimensions: 185x75x67mm
– Language: 10 Language
– Focus: -6~+6 adjustable
– Aspect Ratio: 4:3/16:9
– FOV (Diagonal): 46°
– Screen: OLED
– Weight: 267g
– Color: White
Included:
– 1x Skyzone SKY04X V2 OLED FPV Goggles – White
– 2x 5.8GHz Antennas
– Accessories (Headtracker Cable, Video/Audio Cable, Receiver Module, Power Cable, Head Strap, Carry Case)
