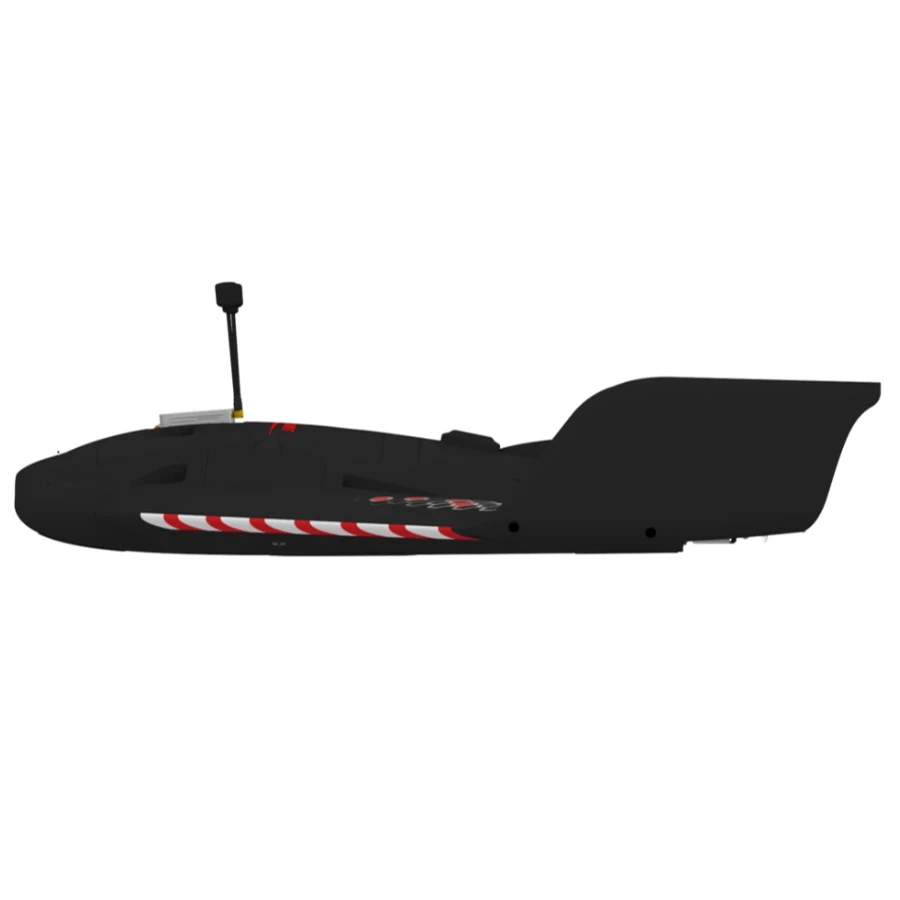

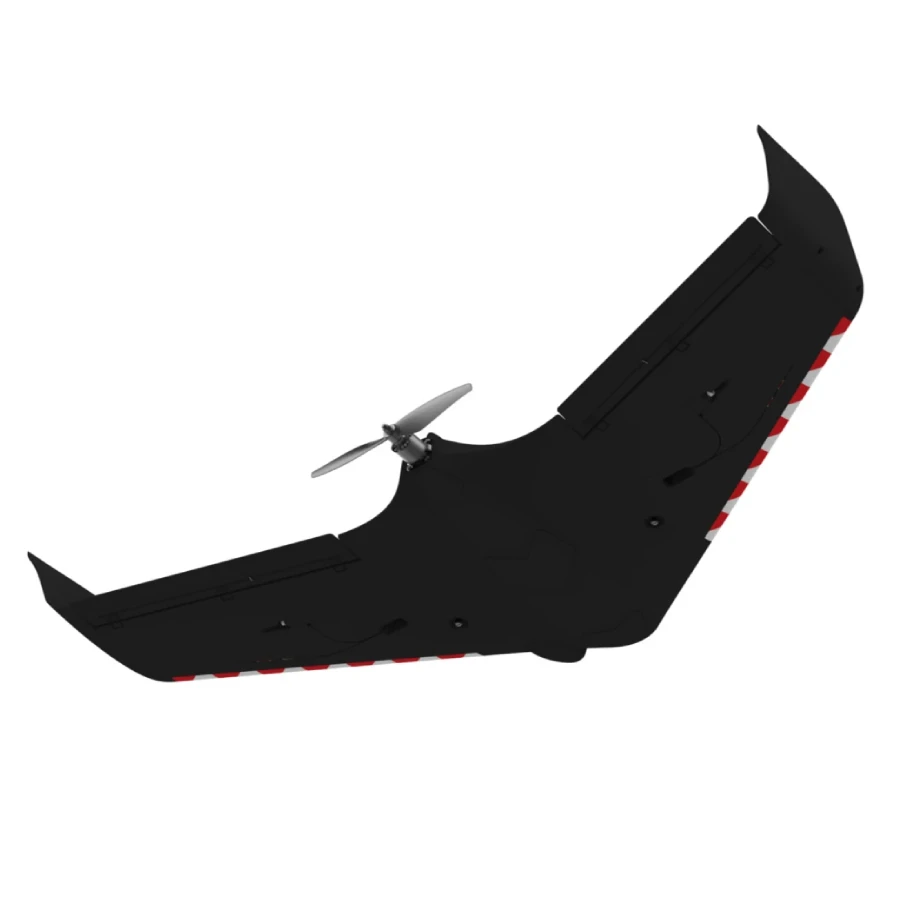

SonicModell AR Wing Pro (Kit)

Overview

The SonicModell AR Wing Pro (Kit) is a sleek and aerodynamic FPV wing that has a wingspan of 1000mm and a length of 450mm. It is made of high-quality EPP material with a built-in carbon fiber spar for strength and durability. It has a large fuselage with multiple equipment bays and tunnels for easy wiring and cooling.

The AR Wing Pro has a dedicated nose camera bay and main hatch bay for the DJI HD Air Unit System, as well as extra nose and side camera bays for other FPV and AIO cameras. It also has a large battery bay that can fit 4S Lipo or Li-ion batteries, and a decent rear bay for ESC.

The AR Wing Pro has a built-in plate inside the fuselage for extra enhancement, and extra CA hinges for stiff and agile control. It also has an optimized air-cooling design to keep the gear safe from overheating. The SonicModell AR Wing Pro (Kit) is a fast and efficient FPV wing that can be used for various flying styles.

** This is the KIT version which includes only the foam model – NO servos, motor, esc, prop etc is included. It requires assembly. Glue not included. **

Features:

– The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System.
– Aerodynamic designed FPV pocket in both sides of fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition.
– Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability and crash resistance.
– Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.
– Nose camera slot compatible with all HD Auction cameras (for Gopro, DJI, Runcam etc) in the market.
– Multiple tunnels inside all quipment bays, easy to layout wire between each bay.
– Detachable main wing and wing tip, glue-free assembly, portable for outdoor flying.
– Built-in CF rod in the ailerons will give precision and sharp action to your inputs.
– High accurate ball link control system brings agile and quick response in control.
– Special-designed “servo arm built-in” structure will protect your servo arm from impact.
– Large battery bay for extended flight time and more rooms for various Flight Controller.
– Decent rear bay for ESC, isolate interference from other FPV equipment.
– Built-in plate inside fuselage for extra enhancement.
– Extra CA Hinges for DIY will bring you more stiff and agile control.
– Optimized air-cooling design will keep your gear safe from overheating.

Specifications:
– Brand Name: SonicModell
– Item Name: AR Wing Pro
– Material: High Quality EPP
– Wingspan: 1000mm (39.37”)
– Length: 450mm (17.71”)
– Wing Area: 18dm²

Recommends Parts (Not included):
– Motor: 2216-1400KV
– ESC: 40A w/5V 3A BEC
– Servos: 2pcs 9g metal gear servo
– Propeller: 2 blades 8×5

Includes:

1x SonicModell AR Wing Pro (Kit)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
