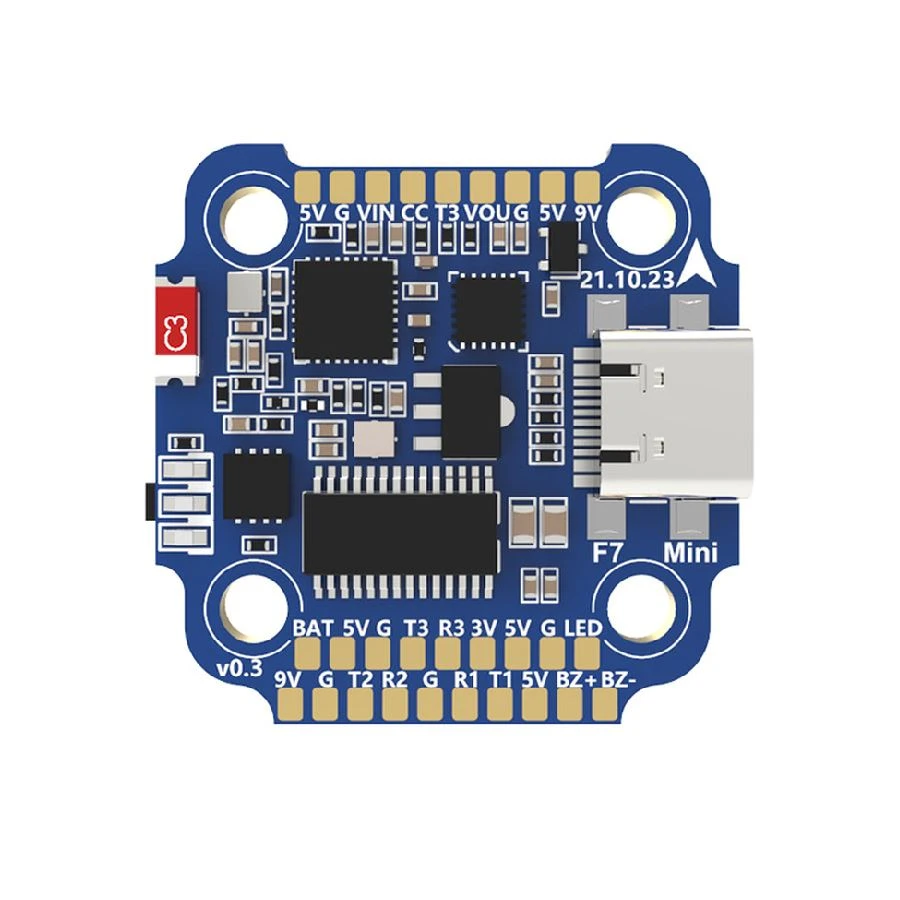

SpeedyBee F7 Mini Flight Controller (20mm)

The SpeedyBee F7 Mini Flight Controller is a high performance 20x20mm mounting flight controller compatible with the SpeedyBee configuration app. The SpeedyBee allows wireless programming without a laptop via Blueooth.

Features:
– Wireless full-featured flight controller tuning
– Wireless full-featured BLHeli_S ESC tuning
– High-performance F7 flight controller CPU
– Built-in Bluetooth 4.0 BLE chip

Hard to Access USB Port?
It’s time to say goodbye to this trouble! With this Bluetooth stack, you don’t need to connect your quad to the PC for FC and even ESC tuning, everything can be done wirelessly in the SpeedyBee app.

Tune Flight controller and ESC wirelessly!
Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller Also, every parameter of the BLHeli_S ESC in this stack can be set via the app.

Support DJI Digital Video transmitter.
The flight controller has two independent 9V 2A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI Air Unit / RunCam Link / Vista.

SpeedyBee F7 Mini Specifications:

– Product Name SpeedyBee F7 Mini Specs
– MCU STM32F722
– IMU(Gyro) BMI270
– USB Port Type Type-C
– Barometer N/A
– OSD Chip AT7456E chip
– BLE Bluetooth Supported. Used for Flight Controller configuration
– Flash FC Firmware Wirelessly Not supported. Please update firmware for this FC on the PC
– Download/Analyze Blackbox Not supported. Please download and analyze Blackbox data on the PC
– DJI Air Unit Soldering Pads Supported
– Flash(for BlackBox) 8MB
– Current Sensor Supported, Scale=250 Offset=-500
– BetaFlight Camera Control Pad Yes(CC pad)
– Power Input 3S – 6S Lipo
– 5V Output 6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). The total current load is 2.5A.
– 9V Output 2 groups of 9V output, the total current load is 2A.
– 3.3V Output Supported. Up to 500mA current load.
– ESC Signal Pads M1 – M4
– UART Full UART * 3(UART1, UART2, UART3)
– ESC Telemetry UART R4(UART4)
– I2C Not supported
– LED Pad Used for WS2812 LED
– Buzzer BZ+ and BZ- pad used for 5V Buzzer
– BOOT Button Used to enter DFU mode
– RSSI Input Not supported
– SmartPort Use any TX pad of UART for the SmartPort feature.
– Supported Flight Controller Firmware BetaFlight(Default), EMUFlight, INAV
– Firmware Target Name SPEEDYBEEF7MINI
– Mounting 20 x 20mm, 3.5mm hole diameter
– Dimension 30 x 30 x 7.5mm
– Weight 5.7g

Includes:

1x Speedybee F7 Mini FC
