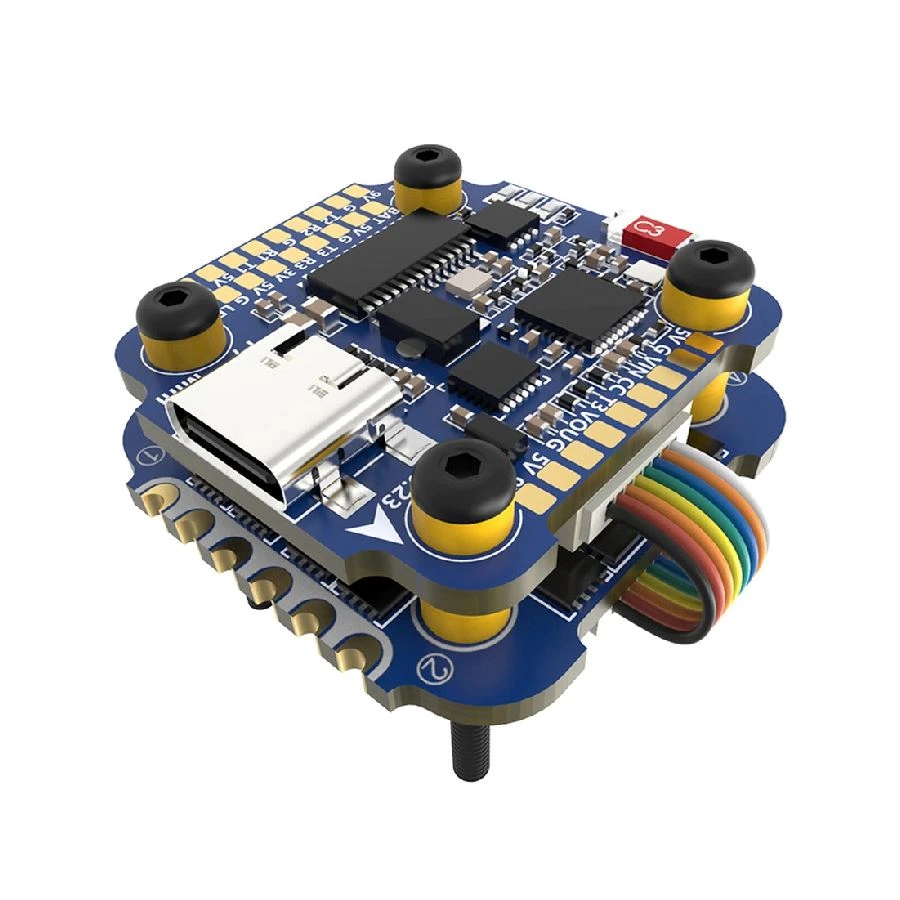

SpeedyBee Stack F7 Mini 35A Stack

The SpeedyBee stack features an F7 Mini Flight Controller and Speedybee 35A 4in1 ESC. The SpeedyBee allows wireless programming without a laptop via Blueooth. The ESC is rated at 35A. Both the FC + 4in1 mount on 20x20mm mounting.

Features:
– Wireless full-featured flight controller tuning
– Wireless full-featured BLHeli_S ESC tuning
– High-performance F7 flight controller CPU
– Real 35A BLHeli_S DSHOT600 ESC
– Built-in Bluetooth 4.0 BLE chip

Hard to Access USB Port?
It’s time to say goodbye to this trouble! With this Bluetooth stack, you don’t need to connect your quad to the PC for FC and even ESC tuning, everything can be done wirelessly in the SpeedyBee app.

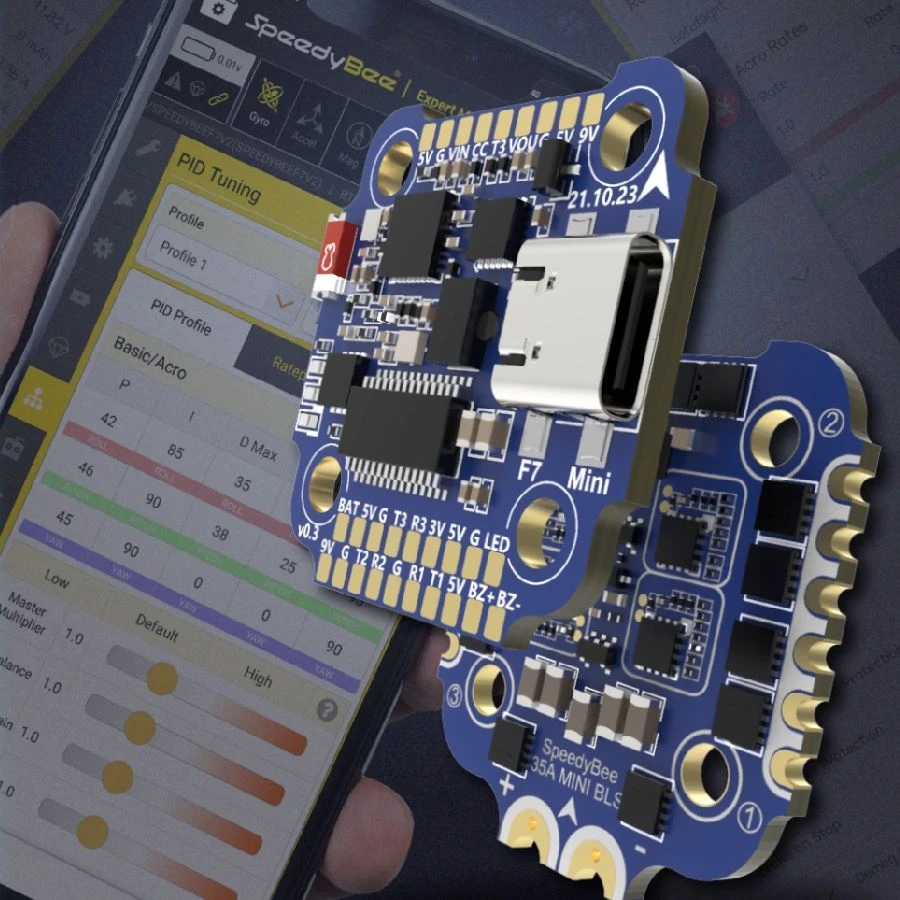

Tune Flight controller and ESC wirelessly!
Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller Also, every parameter of the BLHeli_S ESC in this stack can be set via the app.

Support DJI Digital Video transmitter.
The flight controller has two independent 9V 2A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI Air Unit / RunCam Link / Vista.

Real 35A ESC, no false labeling!
6-layer 2oz PCB plus optimized circuit design equals stable and strong current output. The four-channel continuous 140A output can reach 30 seconds.

SpeedyBee F7 Mini Specifications:

– Product Name SpeedyBee F7 Mini Specs
– MCU STM32F722
– IMU(Gyro) BMI270
– USB Port Type Type-C
– Barometer N/A
– OSD Chip AT7456E chip
– BLE Bluetooth Supported. Used for Flight Controller configuration
– Flash FC Firmware Wirelessly Not supported. Please update firmware for this FC on the PC
– Download/Analyze Blackbox Not supported. Please download and analyze Blackbox data on the PC
– DJI Air Unit Soldering Pads Supported
– Flash(for BlackBox) 8MB
– Current Sensor Supported, Scale=250 Offset=-500
– BetaFlight Camera Control Pad Yes(CC pad)
– Power Input 3S – 6S Lipo
– 5V Output 6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). The total current load is 2.5A.
– 9V Output 2 groups of 9V output, the total current load is 2A.
– 3.3V Output Supported. Up to 500mA current load.
– ESC Signal Pads M1 – M4
– UART Full UART * 3(UART1, UART2, UART3)
– ESC Telemetry UART R4(UART4)
– I2C Not supported
– LED Pad Used for WS2812 LED
– Buzzer BZ+ and BZ- pad used for 5V Buzzer
– BOOT Button Used to enter DFU mode
– RSSI Input Not supported
– SmartPort Use any TX pad of UART for the SmartPort feature.
– Supported Flight Controller Firmware BetaFlight(Default), EMUFlight, INAV
– Firmware Target Name SPEEDYBEEF7MINI
– Mounting 20 x 20mm, 3.5mm hole diameter
– Dimension 30 x 30 x 7.5mm
– Weight 5.7g

SpeedyBee 35A Mini ESC Specifications:

– Product Name SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Specs
– Firmware BLHeli_S JH40
– Continuous Current 35A * 4
– Burst Current 45A(5S)
– ESC Protocol DSHOT300/600
– Power Input 3-6S LiPo
– Power Output VBAT
– Current Sensor Support (Scale=250 Offset=-500)
– Mounting 20 x 20mm, 3.6mm hole diameter
– Dimension 35 * 35 * 5.5mm
– Weight 7g

Includes:

1x Speedybee F7 Mini FC
1x Speedybee 35A 4in1 ESC (BLHeli_S)
