Overview:
The T-Motor AT2312 is a motor designed for Fixed Wing models. The AT series design features increased cooling and efficiency.The AT series provides upgraded quality including arc magnets which increase motor performance by 5%.
This version comes with a long shaft and is 1400KV.
Specifications:
– KV: 1400KV Long Shaft
– Configuration: 12N14P
– Shaft Diameter: 4mm
– AWG: 20#
– Cable length: 100mm
– Internal Resistance: 55mΩ
– Motor Dimensions (Dia.*Len): Φ28.4×44.5mm
– Weight with wires(g): 60g
– ldle current@10v(A): 1.1A
– No.of Cells(Lipo): 2-4S
– Peak Current: 30A
– Prop recommendation 8×6 (3S) / 9×6 (3S)
Includes:
– 1x T-Motor AT2312 1400KV Long Shaft Fixed Wing Motor

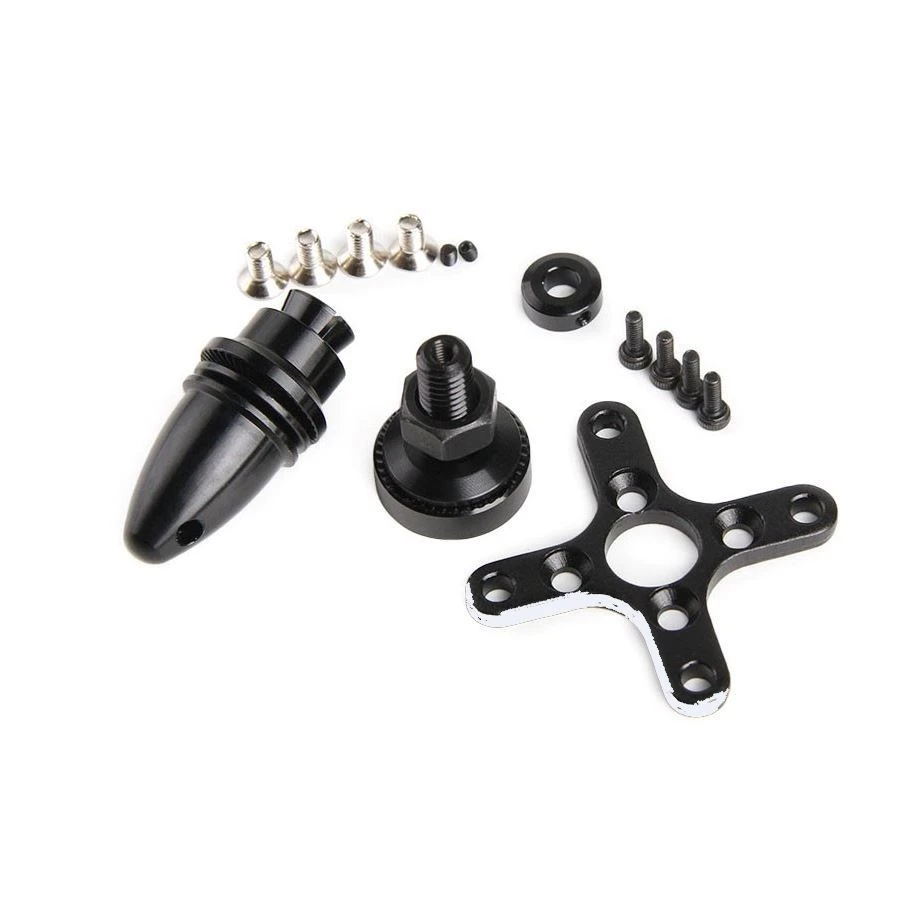

– Mounting Screws, prop adapter & Lock Nut
