T-Motor AT2317 1250KV Fixed Wing Motor

Original price was: $28.95.Current price is: $20.27.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The T-Motor AT2317 is a motor designed for Fixed Wing models. The AT series design features increased cooling and efficiency.The AT series provides upgraded quality including arc magnets which increase motor performance by 5%.

This version comes with a long shaft and is 1250KV.

Specifications:

– KV: 1250KV Long Shaft
– Configuration: 12N14P
– Shaft Diameter: 4mm
– AWG: 20#
– Cable length: 100mm
– Internal Resistance: 52mΩ
– Motor Dimensions (Dia.*Len): Φ28.8x52mm
– Weight with wires(g):79g
– ldle current@10v(A): 1.3A
– No.of Cells(Lipo): 2-4S
– Peak Current: 40A

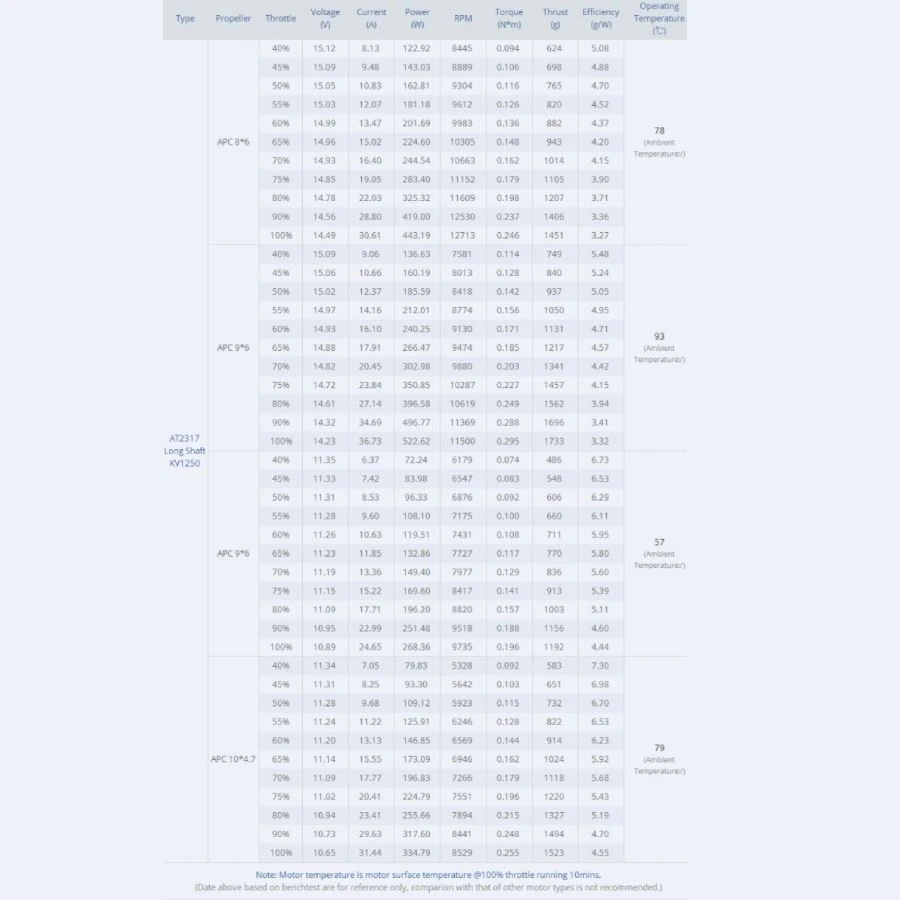

– Prop recommendation 8×6 (4S) / 9×56 (4S) / 9×6 (3S) / 10×4.7 (3S)

Includes:

– 1x T-Motor AT2317 1250KV Long Shaft Fixed Wing Motor

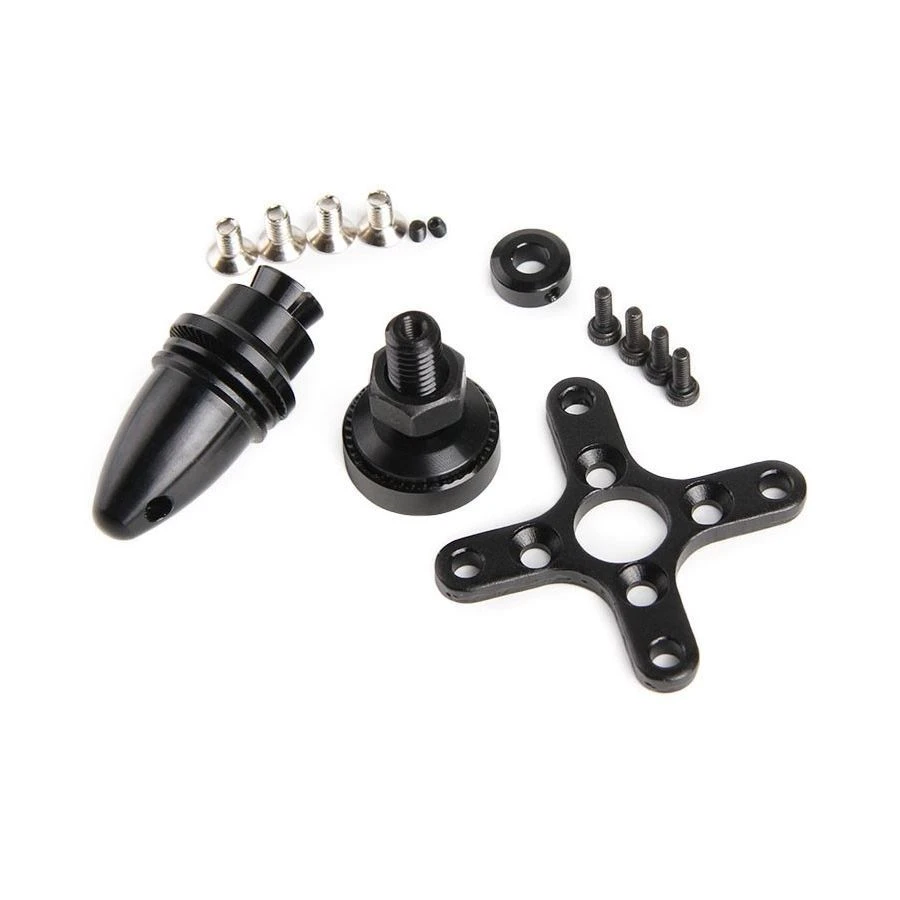

– Mounting Screws, prop adapter & Lock Nut
