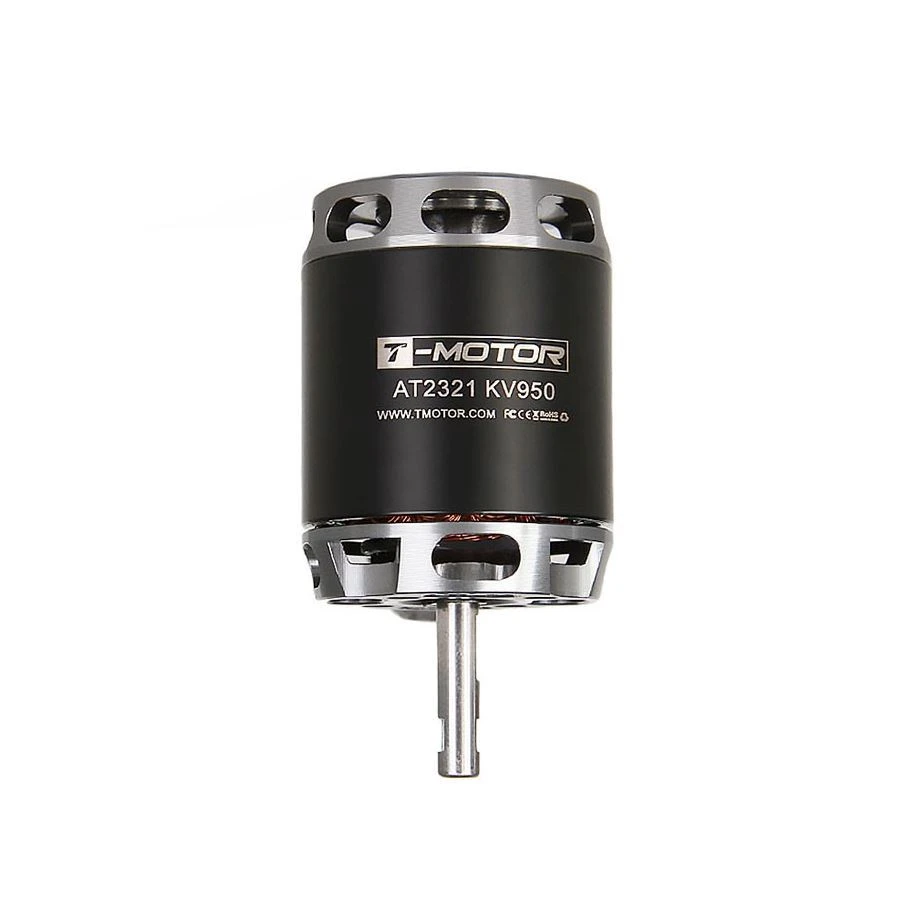

Overview:
The T-Motor AT2321 is a motor designed for Fixed Wing models. The AT series design features increased cooling and efficiency.The AT series provides upgraded quality including arc magnets which increase motor performance by 5%.
This version comes with a long shaft and is 950KV .
Specifications:
– KV: 950KV Long Shaft
– Configuration: 12N14P
– Shaft Diameter: 4mm
– AWG: 20#
– Cable length: 100mm
– Internal Resistance: 65mΩ
– Motor Dimensions (Dia.*Len): Φ28.8x56mm
– Weight with wires(g):94g
– ldle current@10v(A): 1.8A
– No.of Cells(Lipo): 2-4S
– Peak Current: 45A

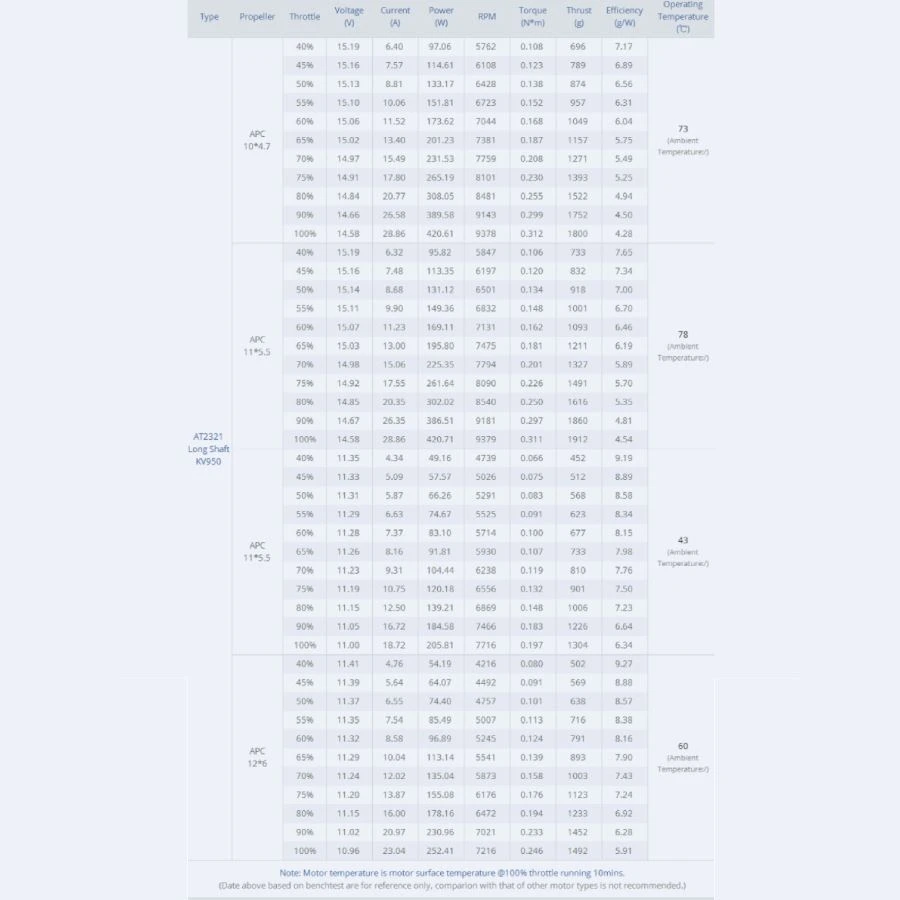

– Prop recommendation 10×4.7 (4S) / 11×5.5 (4S) / 11×5.5 (3S) / 12×6 (3S)
Includes:
– 1x T-Motor AT2321 950KV Long Shaft Fixed Wing Motor

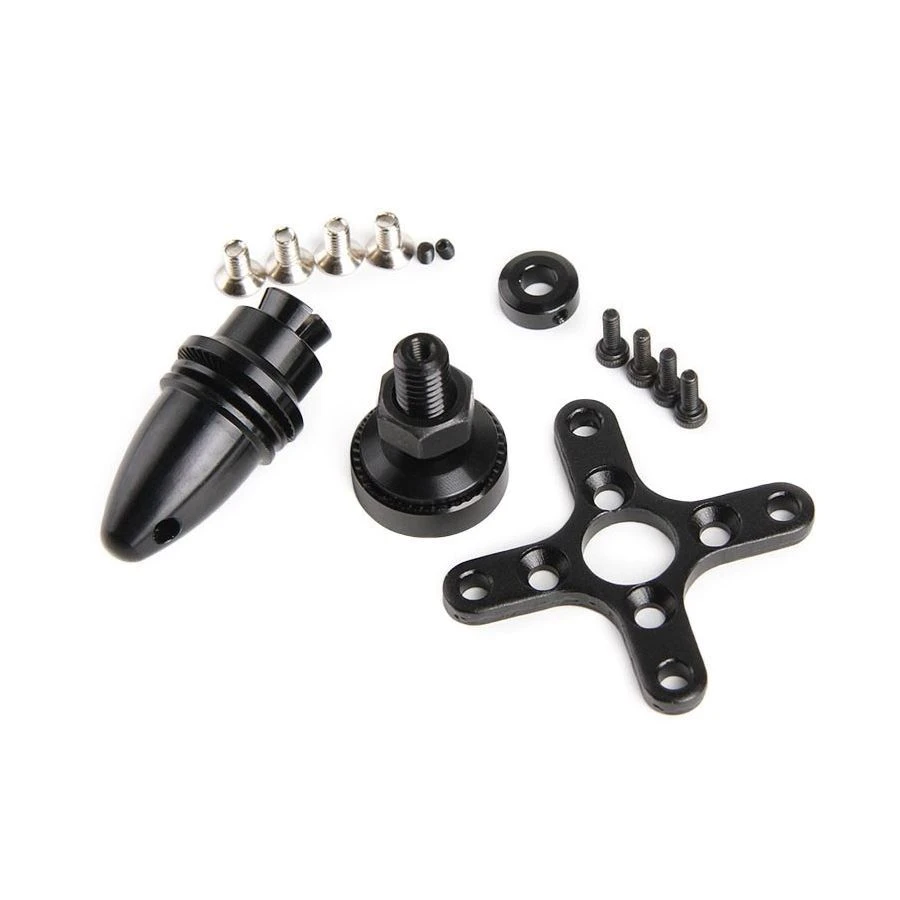

– Mounting Screws, prop adapter & Lock Nut
