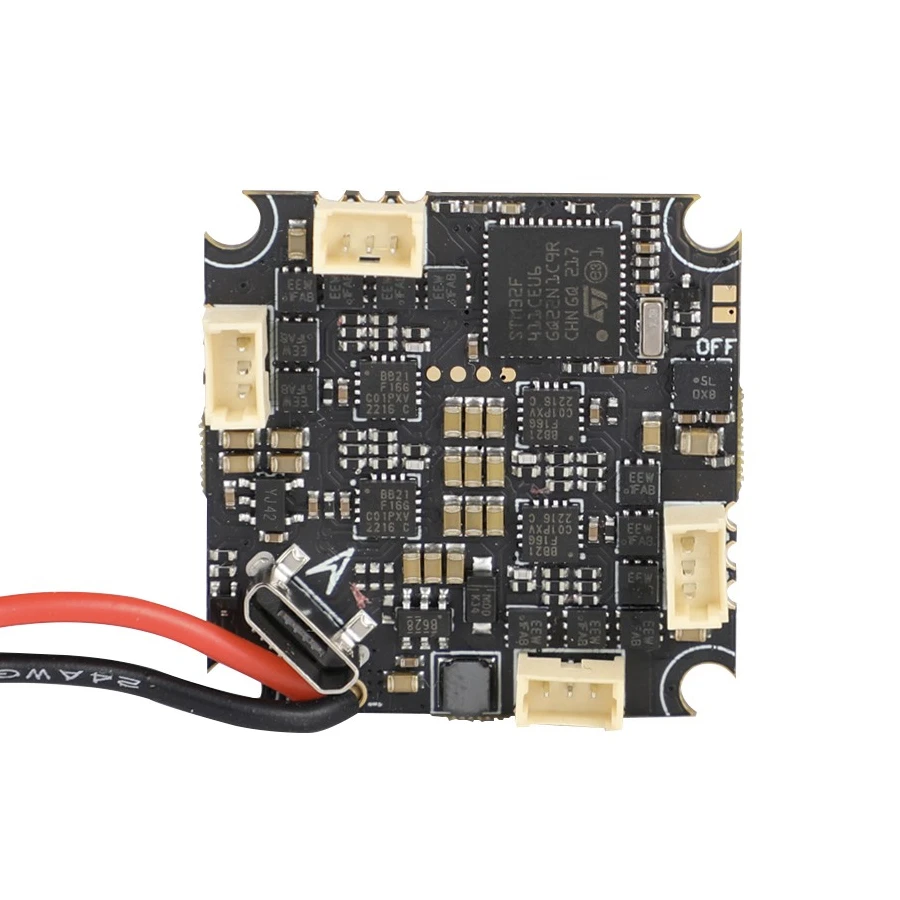

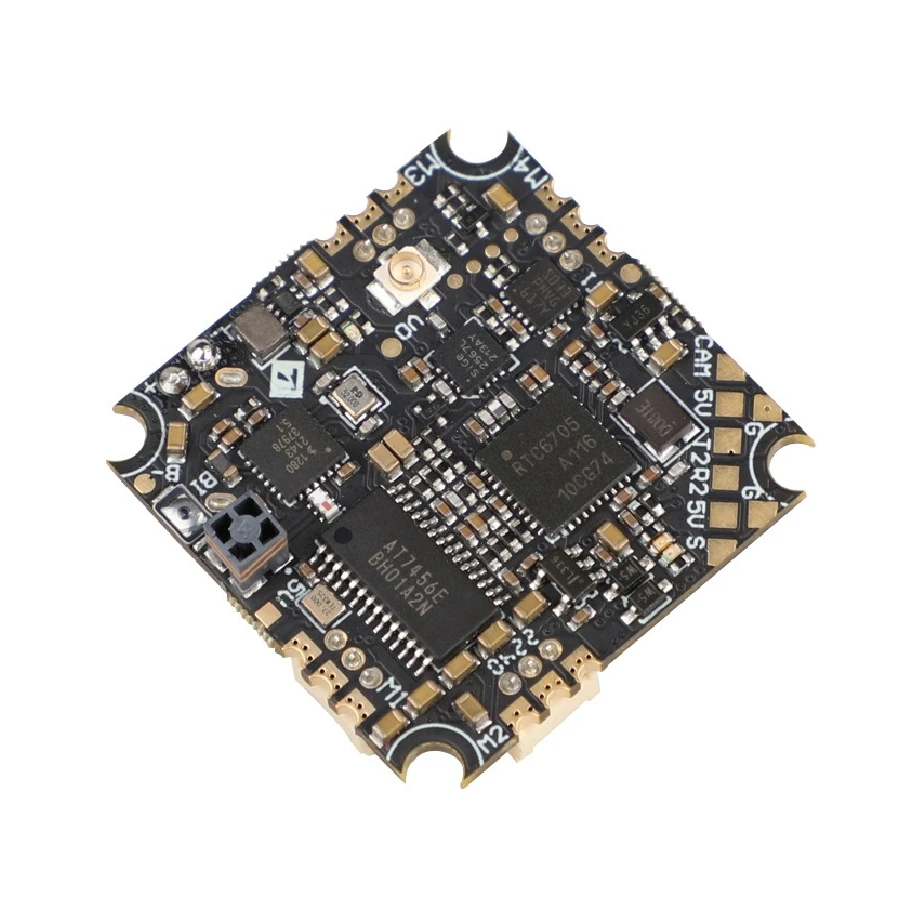

T-Motor F4 6A 1S AIO With VTX + ELRS

Original price was: $65.50.Current price is: $45.85.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The T-Motor F4 6A 1S AIO board is perfect for building small tinywhoops. It pairs perfectly with the T-Motor M0803 or M0802 motor. The 4in1 ESC is rated at 6A and has bluejay firmware installed. The F4 6A AIO has an integrated SPI ELRS Receiver with onboard chip antenna. Finally a 50mW VTX is integrated – just add a camera and you are FPV ready.

Specification:

– Input Voltage: 1S
– Continuous Current: 6A
– Peak Current: 7A
– ESC Firmware: BlueJay
– MCU: STM32F411
– Gyro: BMI270
– Receiver: SPI ELRS 2.4GHz V2
– VTX: 48CH 50mW Smartaudio 1.0
– Size: 29.5×29.5mm
– Weight: 6.7g
– Mounting Hole: 25.5×25.5mm (M2 Holes)

Includes:
– 1x T-Motor F4 6A 1S AIO With VTX + ELRS
– Accessories (Gummies, Cable, Antenna)
