T-Motor F7 45A AIO (25.5mm)

Original price was: $95.90.Current price is: $67.13.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

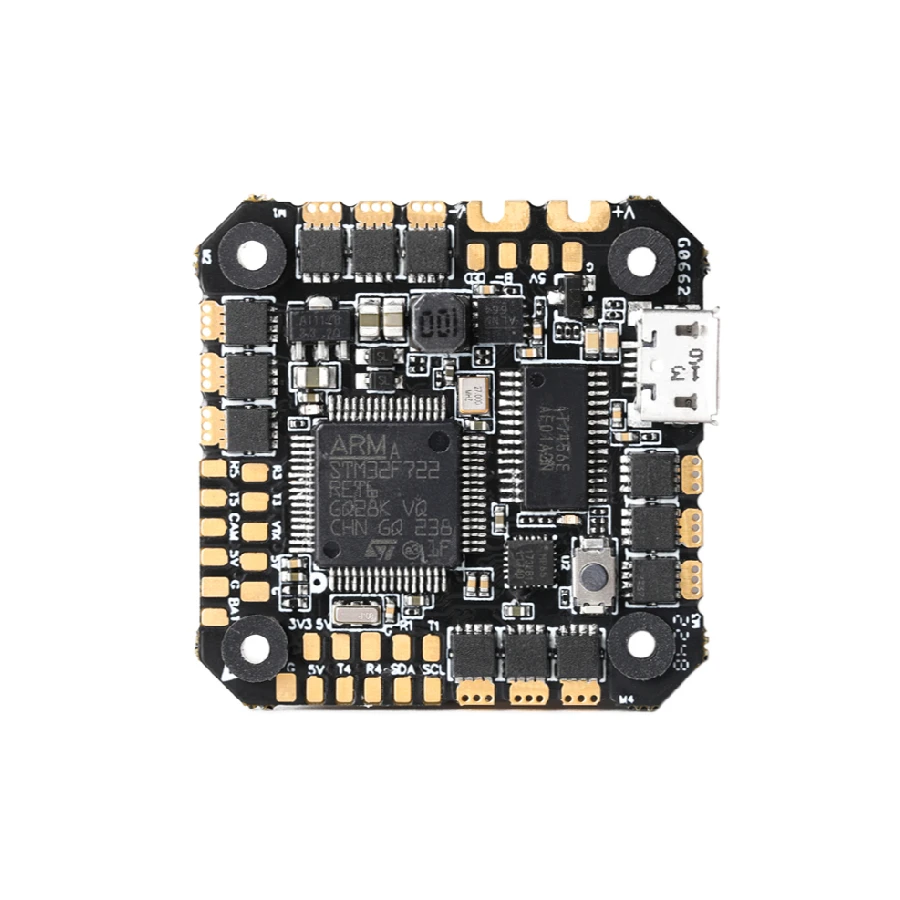

The T-Motor F7 35A AIO (all-in-one) board combines a F7 processor, 45A BLS 4in1 ESC, a built-in OSD, a 5V/2A BEC and a plug-and-play connector for DJI Air Unit. Analogue video is also supported via the AT7456 OSD chip. The F7 35A AIO can handle up to 6S LiPo batteries and has a compact size of 39x39mm. Whether you are into freestyle or racing, the T-Motor F7 35A AIO will deliver smooth and stable flight with minimal wiring and hassle.

Specifications:

– MCU: STM32F722
– Gyro: MPU6500
– Barometer: BMP280
– ESC Current: 45A
– Memory: 16M
– Input Voltage: (3-6S)
– BEC: 5V/2A
– Dimensions: 39mm x 39mm
– Mounting Holes: 25.5mm x 25.5mm
– Supports HD & Analog Video

Includes:
– T-Motor F7 45A AIO (25.5mm)
– Accessories
