Overview:

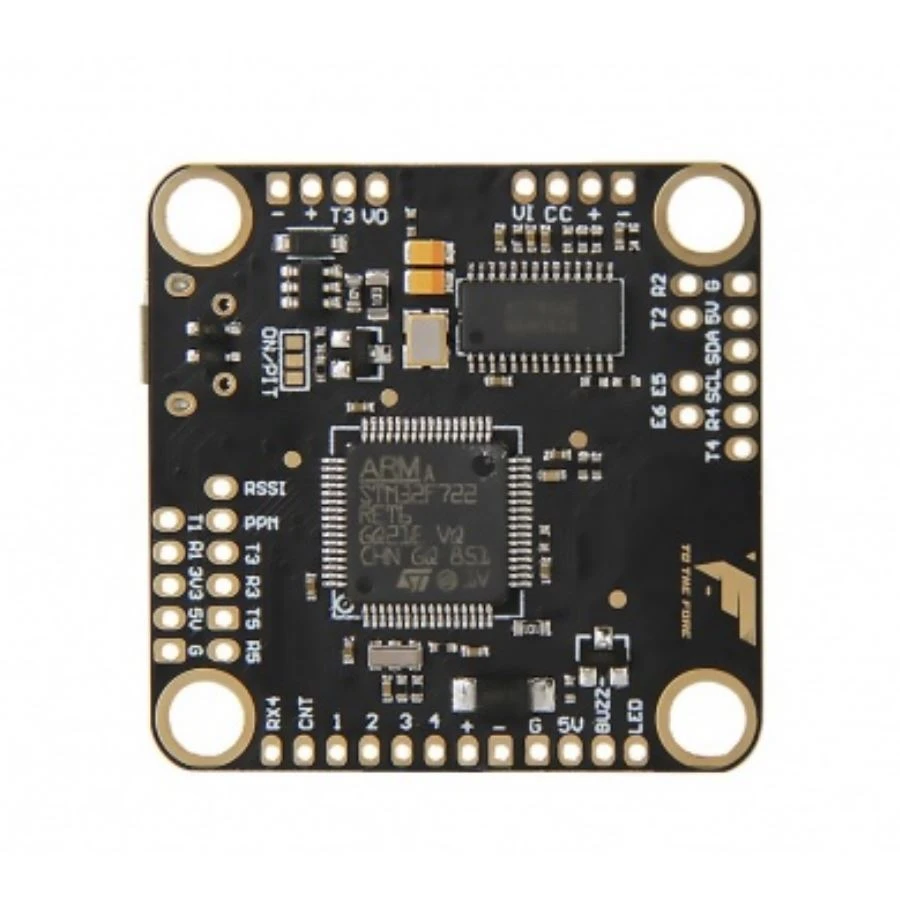

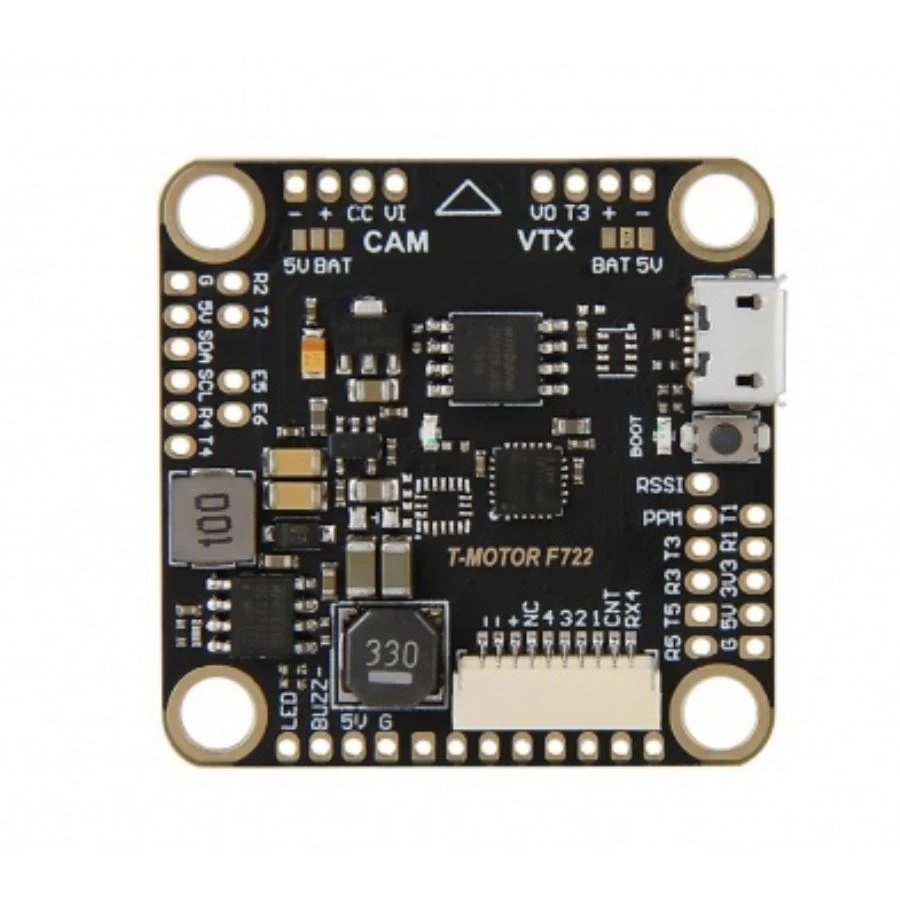

The T-Motor F7 Flight Controller comes with onboard pitmode so you can toggle power to your connected VTX. The board is loaded with 5 UARTs and is specially optimized to fit the F55A PRO II.
Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F7 is loaded with 5 UARTs and is specially optimized to fit the F55A PRO II ESC. The T-Motor F7 features an BMI270 gyro.
Specifications:
– MCU: STMF722RET6
– Gyro: BMI270
– Memory: 16M
– Input Voltage: 12v-25-2v (3-6S)
– BEC: 5V/2A
– Dimensions: 37mm x 37mm
– Mounting Holes: 30.5mm x 30.5mm
– Weight: 7.4g
– Firmware Target: TMOTORF7 (Betaflight)

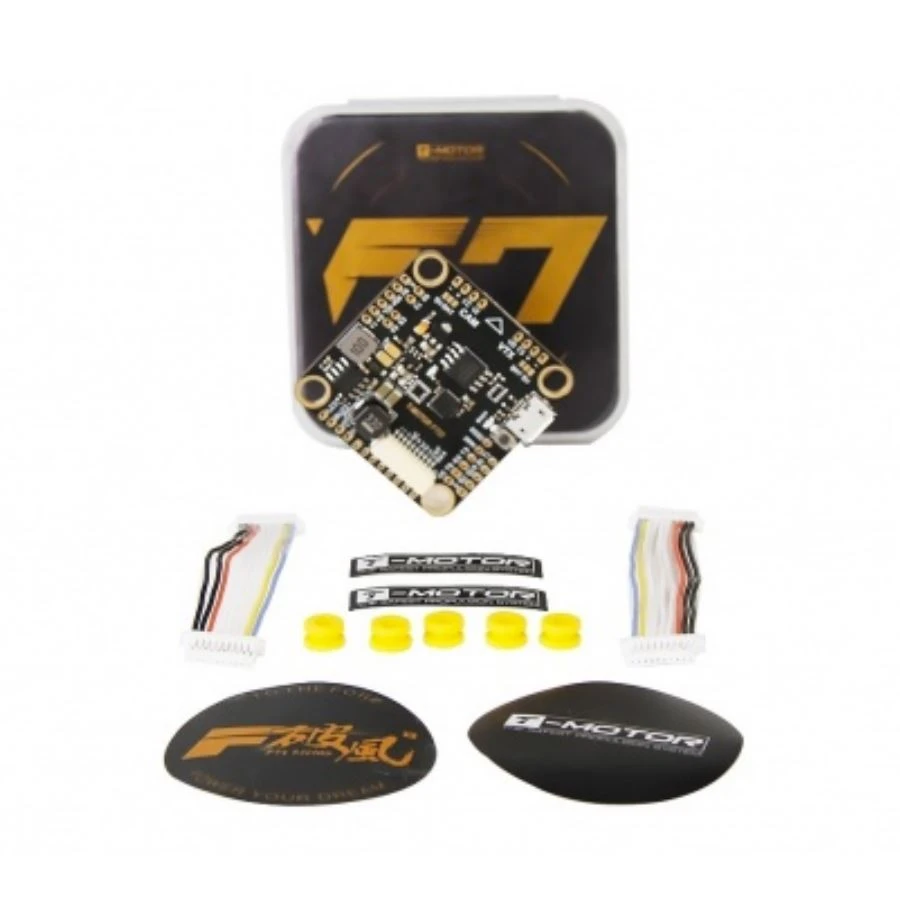

Includes:
– T-Motor F7 Flight Controller
– Rubber Mounting Grommets
– FC to ESC Cable
