T-Motor F7 HD FC & F55A Pro II Stack

Original price was: $148.50.Current price is: $97.99.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

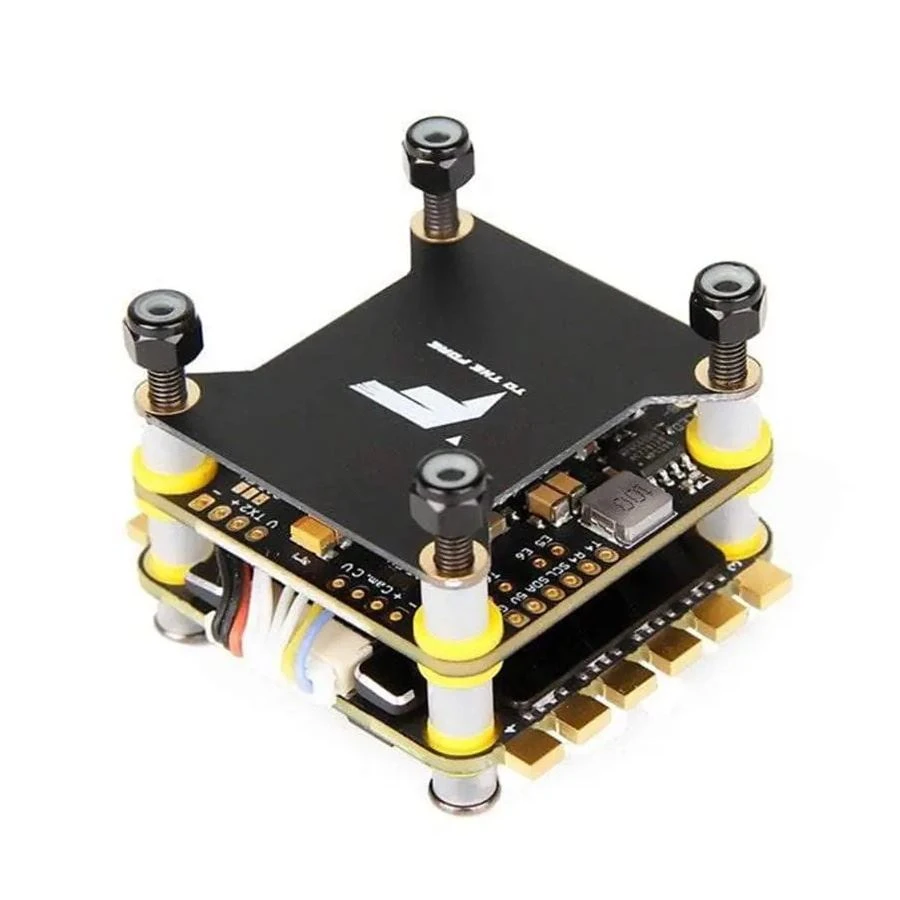

The T-Motor F7 HD flight controller + F55A 4in1 ESC / Stack combines two very good components together in one simple and easy to install package. The T-Motors F7 flight controller is a high performance FC with a logical layout and offers seamless integration with the F55A ESC. The F55A Pro II features an all new heatsink design alongside integrated LEDs and an increased BEC current (10V@2A). This 4in1 ESC is fully capable of pushing 6s with 75A bursts and a sustained 55A current draw.

** This stack is just for the DJI HD system as the flight controller doesn’t provide an analogue OSD on board. **

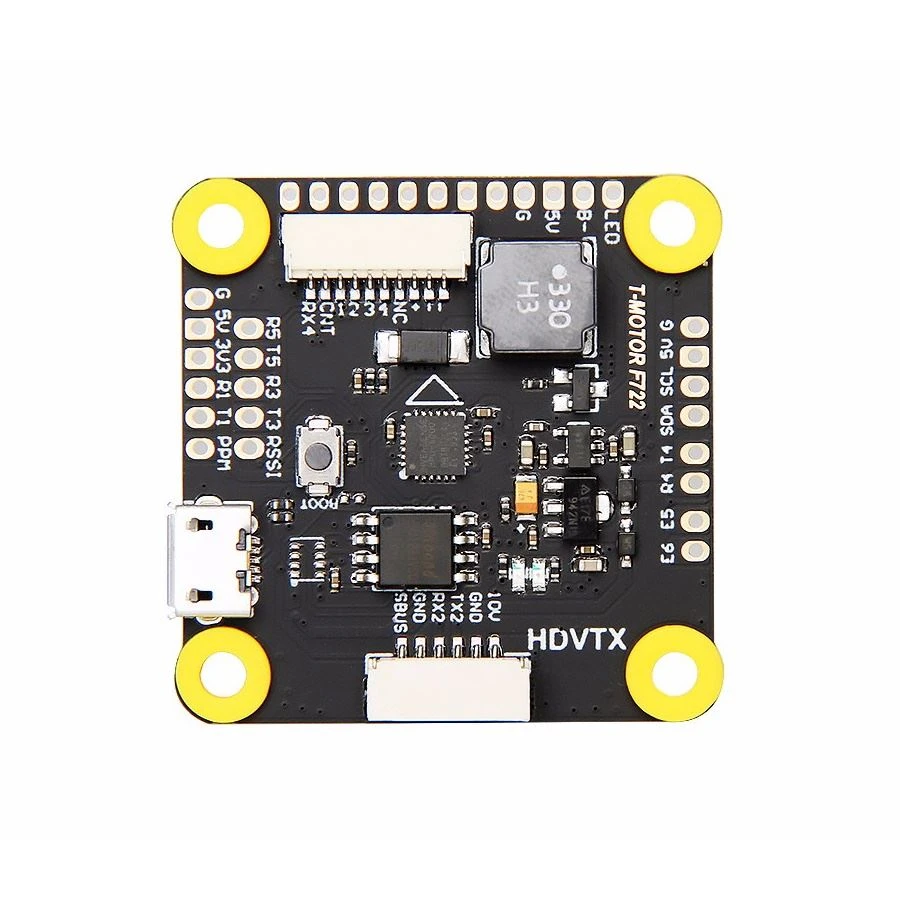

F7 HD FC Specifications:

– MCU: STMF722RET6
– Gyro: ICM270
– Memory: 16M
– Input Voltage: 12v-25-2v (3-6S)
– BEC: 5V/2A 10A/2A DJI HD system
– Dimensions: 37mm x 37mm
– Mounting Holes: 30.5mm x 30.5mm
– Weight: 8.4g
– Firmware Target: TMOTORF7 (Betaflight)

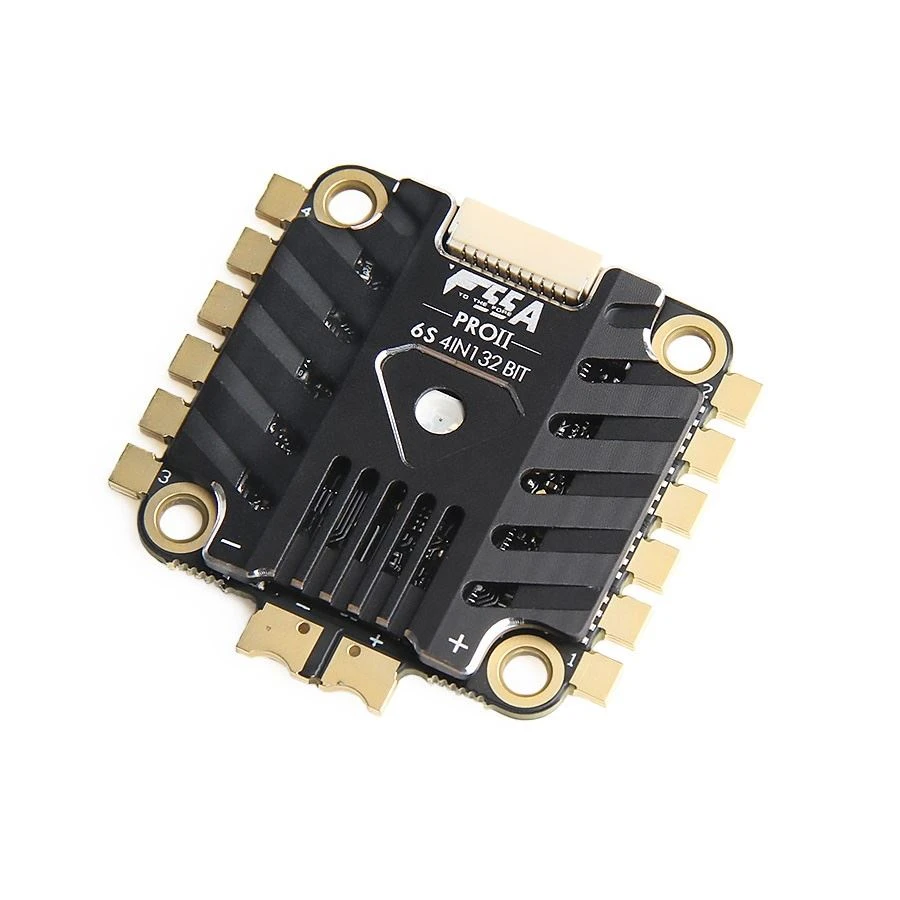

F55 Pro II 4in1 ESC Features:

– Continuous Current: 4x55A
– Burst Current: 4x75A
– BEC Output: 10V @ 2.0A
– Size: 45x41x7.3mm
– Weight: 17.5g (Including heatsink)
– BLHeli_32 32Bit
– Supports: DSHOT150/300/600

Includes:
– T-Motor F7 HD Flight Controller
– T-Motor F55A Pro II ESC
– Accessories
