TBS Crossfire Sixty9

Overview:

The TBS Crossfire Sixty9 is a combined Crossfire receiver and an improved Unify Pro32 video transmitter all in one package.

Introducing the TBS Crossfire Sixty9, a VTX and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20×20, but we do include adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

Features:

– Integrated video transmitter control with long range and (team-)race functions
– Dedicated low-noise power supply for receiver and video transmitter
– Sleek 20×20 mounting form factor
– Plug&play connection and solder pads connectivity

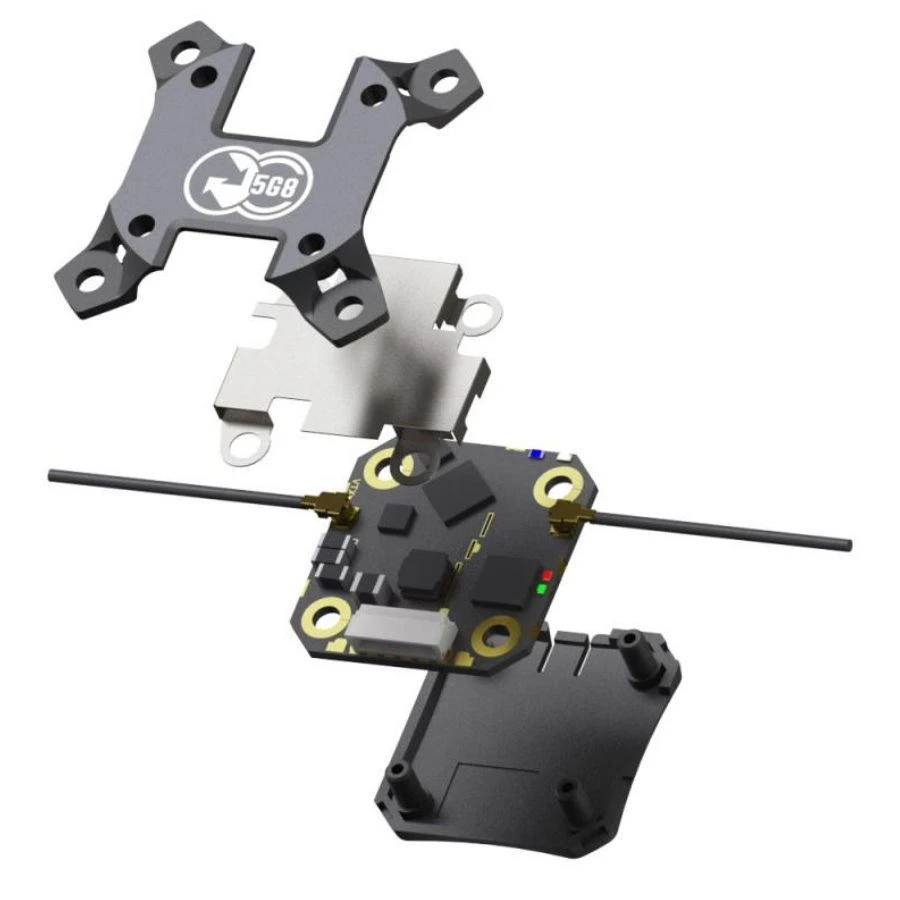

– 3 different mounting flavors, RF tin shields, and other accessories included
– High power analog adjustable video transmitter (up to 1W with perfect cooling)
– 5V regulator bulti-in, takes up to 6S

Specifications:

– Weight: 4.1g (board only)
– Antenna ports: 1x video transmitter, 1x R/C receiver
– Size: 24mm x 24mm
– Requires: Firmware V4.62 and above
– CRSF V3 ready
– Input voltage: 8-25V (2-6S)

Included :

– 1x TBS Crossfire Sixty9
– 1x TBS Crossfire Immortal-T antenna
– 1x u.FL to SMA mount (for VTx)

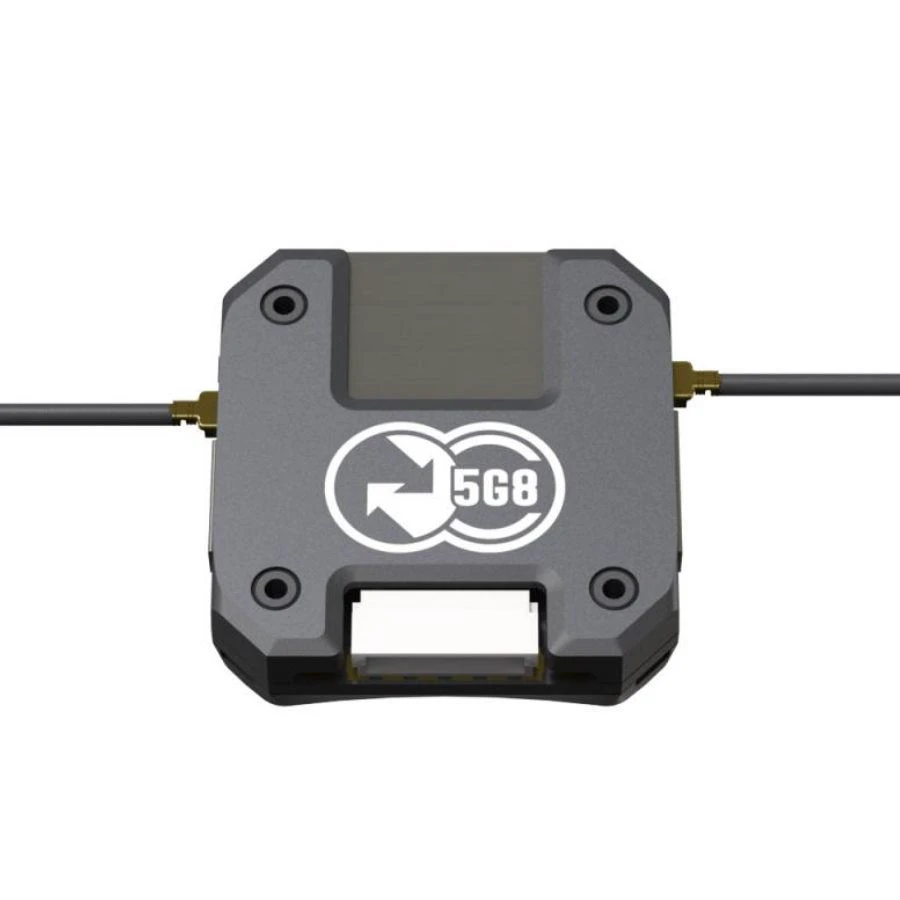

– 1x 30×30 heatsink / case
– 1x 20×20 heatsink / case
– 1x optional tin-shield (for added low-noise tolerance)
– 1x JST-SH x 9 connector
