ToolkitRC M6DAC Dual Smart Charger

Overview:

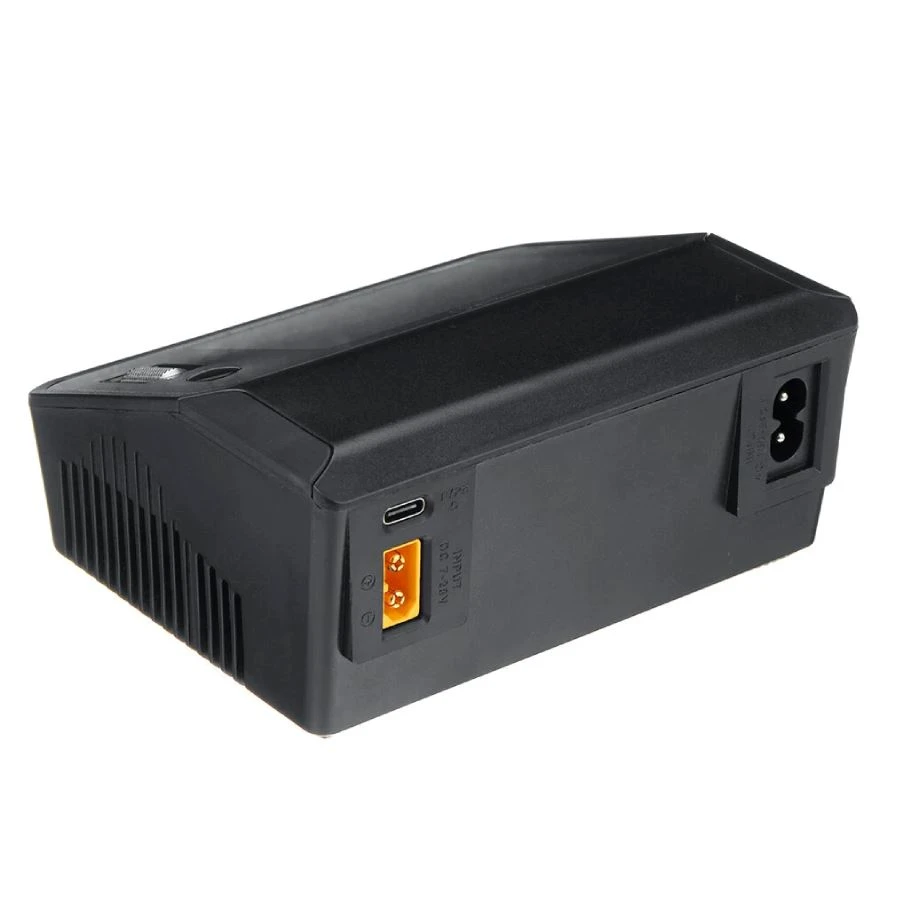

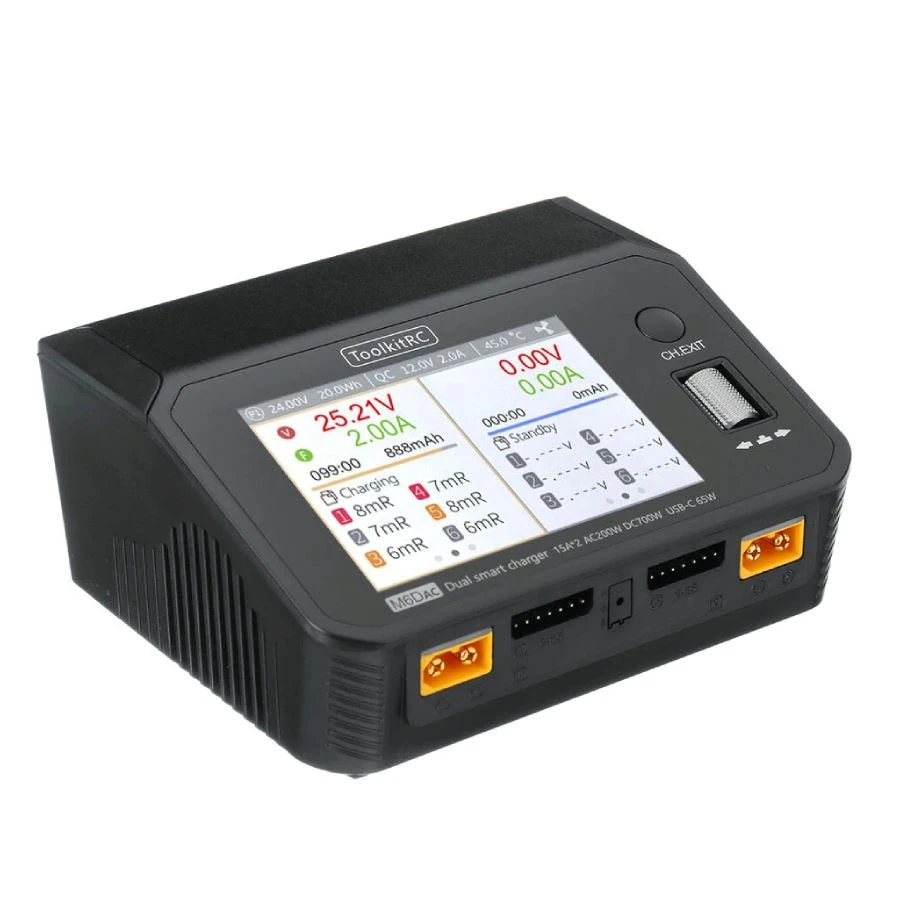

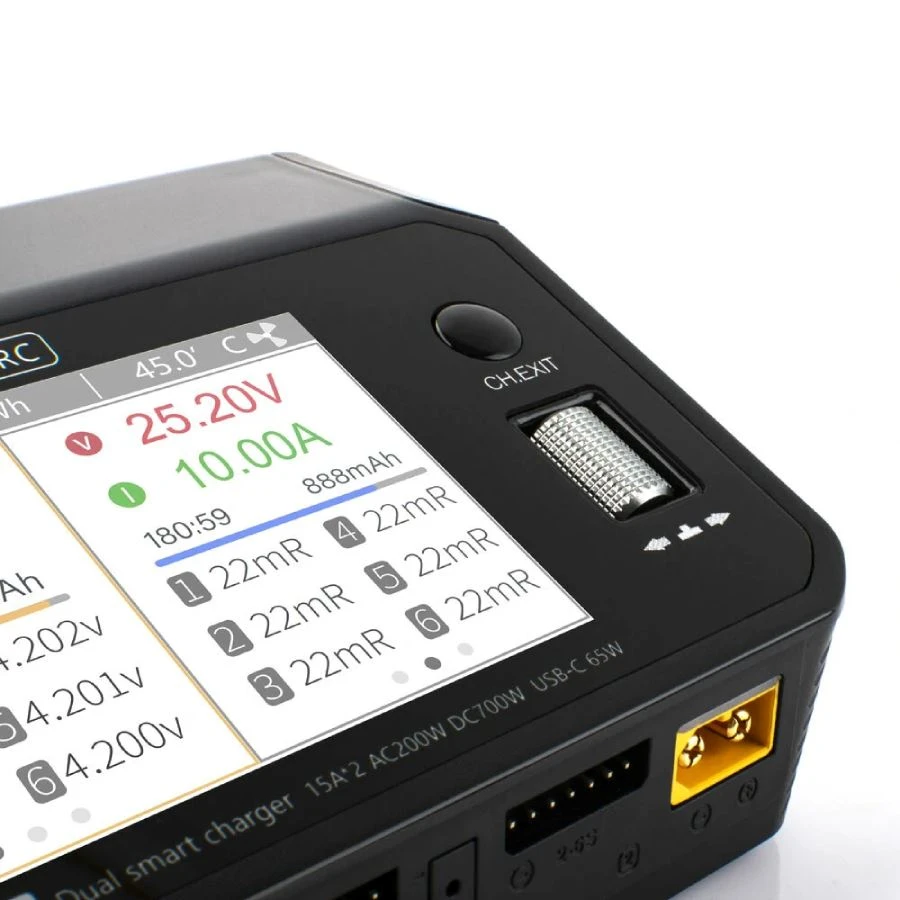

The ToolkitRC M6DAC is a dual channel (two batteries at once) smart charger that can be powered from AC(200W) or DC (700W) so can also be used as a field charger. In DC mode the charger operates as two individual 350W channels or in syncronous mode allowing two channels to be linked as one for a massive 700W output (25A max). The M6DAC includes a 3.5″ 480×320 IPS panel and metal dial wheel.

The M6DAC also features Smart battery support for the Mavic2, MavicS, Phantom and Inspire.

Specifications (General):

– Product Size: 127x106x57 mm
– Product Weight: 520g
– LCD: IPS  3.5 inch LCD 480*320 Pixel

Specifications (Charger):

– Input voltage: DC 7.0-28.0V @MAX 30A / AC 100-240V @ MAX 2.5A
– Battery type: (Lipo LiHV LiFe Lion LTO) 1-6S / (NiMh) 1-16S (Pb) 1-10S
– Balance current: 1000mA @2-6S
– Charging power: 0.1-15A @350W *2 (Asynchronous mode) / 0.1-25A @700W (Synchronous mode)
– Discharge power: 350W @MAX 15A *2（Recycle mode) / 15W@3A *2 (Normal mode)
– USBC: MAX 65W 3.25A @20.0V or Upgraded
– USBC Protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
– Battery Voltage: 1.0V-5.0V 1-6S
– Internal Resistance: 1-100mR@1-6S

Included:

– ToolkitRC M6DAC Dual Smart Charger
– UK IEC C7 Cable

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
