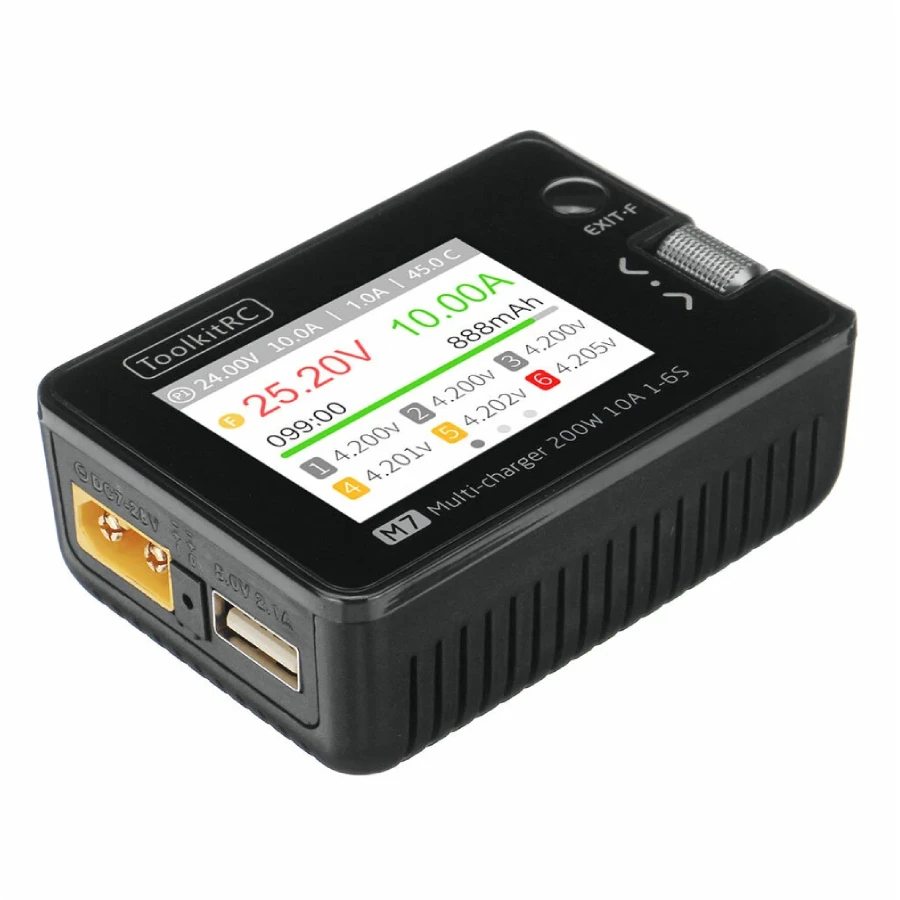

ToolkitRC M7 Multifunction Charger

Overview:

The ToolkitRC M7 is a compact, portable multifunction DC battery charger. The M7 is the same size as the M6 but offers 33.3% more output power – a massive 200W / 10A. The M7 is includes a 2″ IPS panel and scroll wheel for navigation. The maximum charger power is 200W when powered by a suitable DC input. The charger also includes a host of additional features included signal measurer for PWM, PPM SBUS, ESC test, Voltage and battery IR. The M7 can also act as a signal generator outputting PWM, PPM and SBUS signals. Finally the ToolkitRC M7 can also act as an adjustable bench power supply that can operate in both constant current and constant voltage modes.

Specifications (General):

– Product Size: 71x51x27 mm
– Product Weight: 90g
– LCD: IPS 2″ LCD 320×240 pixel

Specifications (Charger):

– Input voltage: 7.0-28.0V MAX 12A
– Battery type: (Lipo LiHV LiFe) 1-6S / (NiMh) 1-16S (Pb) 1-10S
– Balance current: 400mA 2-6S
– Charging power: 200W MAX 10A
– Discharge power: 200W MAX 10A Recycle / 10W 3A (Normal mode)
– USB: 2.1A  5.0V

Specifications (Measurer):

– PWM: 880-2200us @ 20-400Hz
– PPM: 880-2200us x8CH @ 20-50Hz
– SBUS: 880-2200us x16CH @ 20-100Hz
– Voltage: 1.0-5.0V @ 1-6S
– Internal Resistance: 1-99mR @ 1-6S
– ESC: 200W 10A PWM Output

Specifications (Output):
– PWM: 500-2500us @ 20-1000Hz
– PPM: 880-2200us * 8CH @ 20-50Hz
– SBUS: 880-2200us * 16CH @ 20-100Hz
– Power Supply:1.0-28.0V @1.0-10A mode:CC CV
– Overcurrent Response: <5ms

Included:

– ToolkitRC M7 Multifunction Charger

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
