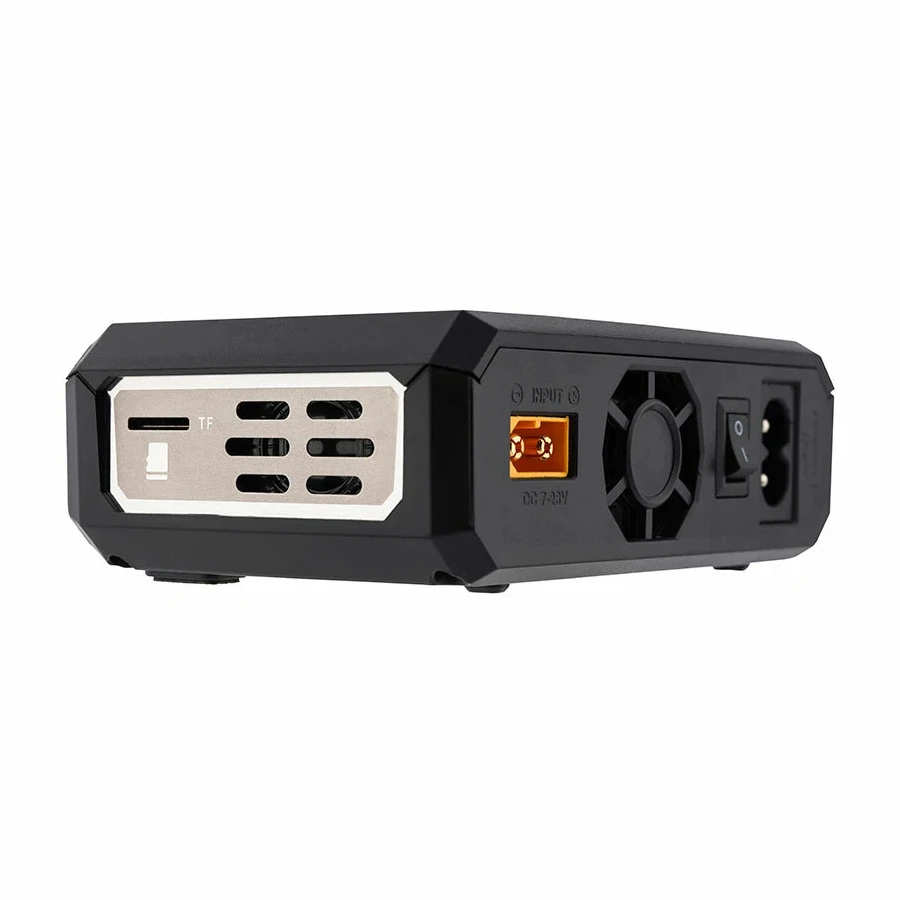

ToolkitRC M7AC Multifunction Charger

Overview:

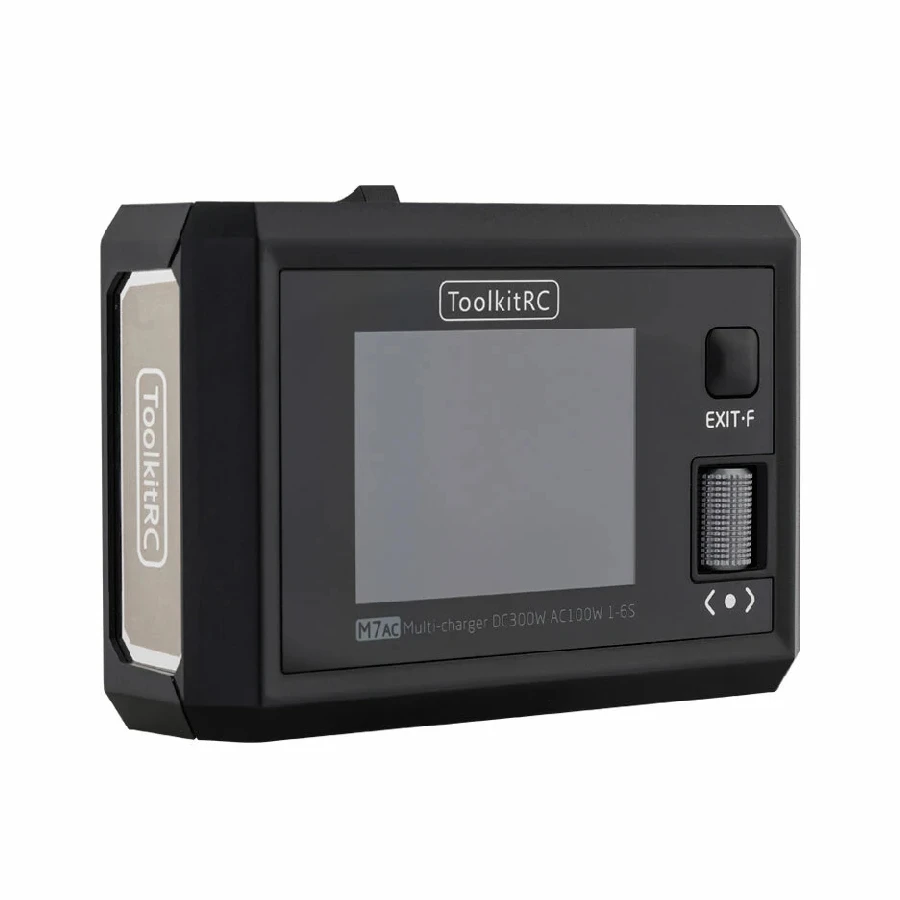

The ToolkitRC M7AC is a compact, portable multifunction AC/DC battery charger. The M7AC offers a massive 100W(AC) or 300W(DC) output. The charger features dual output puts with both XT30 and XT60 connectors which reduces the need for adapters. The M7AC is includes a 2.4″ IPS panel and scroll wheel for navigation. The charger also includes a host of additional features included signal measurer for PWM, PPM SBUS, ESC test, Voltage and battery IR. The M7AC can also act as a signal generator outputting PWM, PPM and SBUS signals. Finally the ToolkitRC M7AC can also act as an adjustable bench power supply that can operate in both constant current and constant voltage modes.

Specifications (General):

– Product Size: 112x73x38 mm
– Product Weight: 380g
– LCD: IPS 2.4″ LCD 320×240 pixel

Specifications (Charger):

– Input voltage: DC 7.0-28.0V MAX 20A
– Input voltage: AC 100-240V MAX 100W  1.5A
– Battery type: (Lipo LiHV LiFe) 1-6S / (NiMh) 1-16S (Pb) 1-10S
– Balance current: 800mA 4.2V
– Charging power: 300W MAX 15A
– Discharge power: 300W MAX 15A Recycle / 15W 3A (Normal mode)
– USB: 10W  5.0V

Specifications (Measurer):

– PWM: 880-2200us @ 20-400Hz
– PPM: 880-2200us x8CH @ 20-50Hz
– SBUS: 880-2200us x16CH @ 20-100Hz
– Voltage: 1.0-5.0V @ 1-6S
– Internal Resistance: 1-99mR @ 1-6S
– ESC: 300W 15A PWM Output

Specifications (Output):
– PWM: 500-2500us @ 20-1000Hz
– PPM: 880-2200us * 8CH @ 20-50Hz
– SBUS: 880-2200us * 16CH @ 20-100Hz
– Power Supply:1.0-28.0V @0.5-15A mode:CC CV
– Overcurrent Response: <5ms

Included:

– ToolkitRC M7AC Multifunction Charger
– UK IEC C7 Cable

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
