Overview:

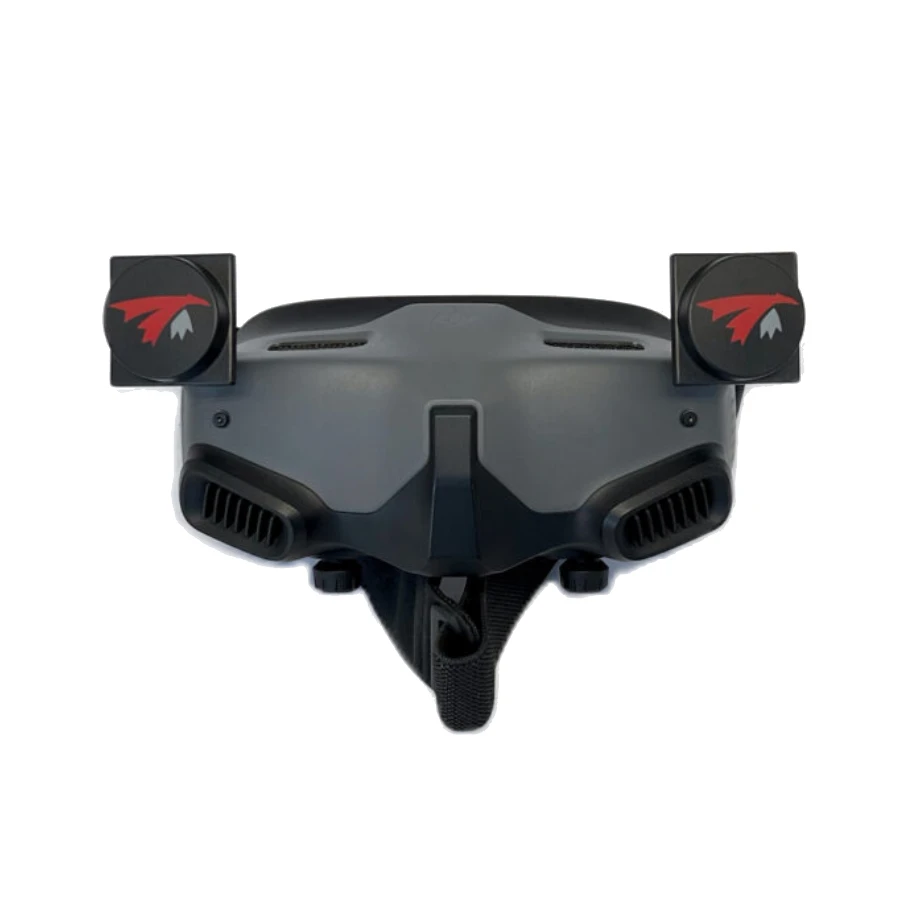

The TrueRC X-AIR MK II Antenna Pair is a slick low profile antenna pair for face mounting onto the DJI Goggles 2. Simply pull out the stock antennas and push the X-air in. Great 10dBic gain combined with a healthy flyable beam width of 120deg, yield an amazing flight experience in compact and low profile package. Fill the remaining ports with a pair of OCP and you got the antennas full house.
Features:
– Circularly Polarized
– Sector type beam shape (widest on horizontal)
– High 10 dBic for long range and signal penetration
– Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
– Super wide 120 degree beam for each antenna combining to 135deg beam width
Specifications:
– Bandwidth: 5.1GHz-6.7GHz
– Gain: 9.5-10.5 dBic
– Polarization: LHCP
– Beam-width*: 120deg
– Beam-width @-3dB**: 68deg.
– Connector: MCX male
– Dimension: 34 x 34 x 24mm
Package Contents:

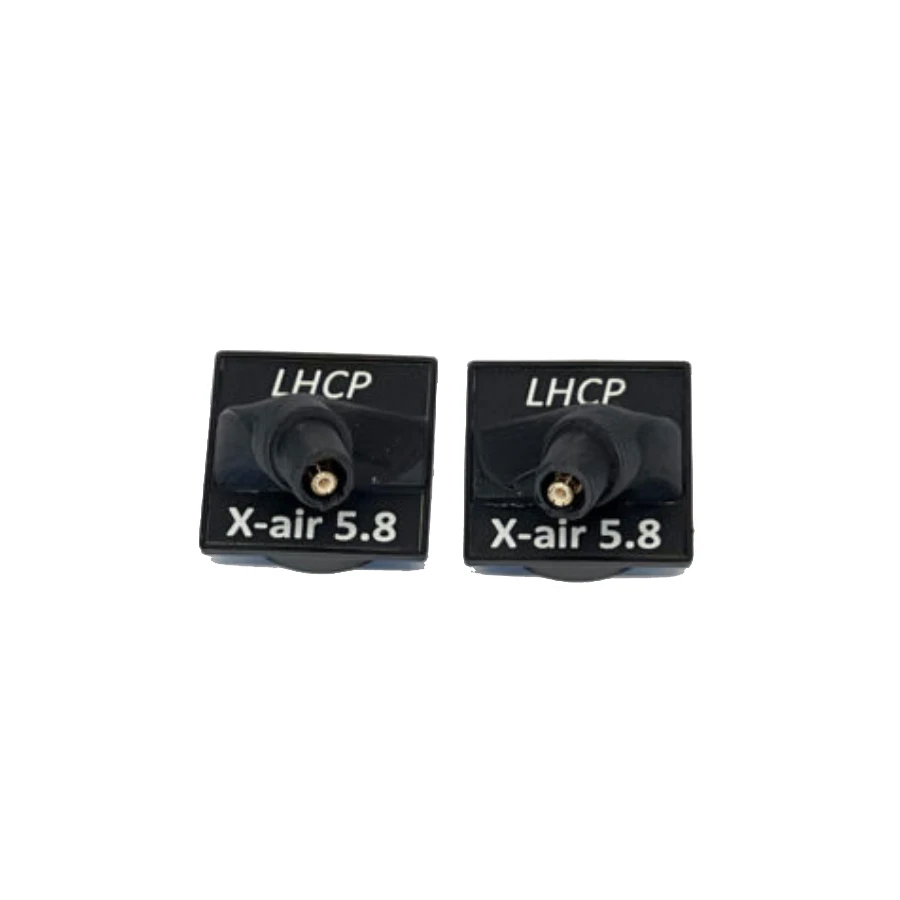

– 1x TrueRC X-AIR MKII 5.8GHz Antenna Pair For DJI Goggles 2 (Pair)
