Overview:

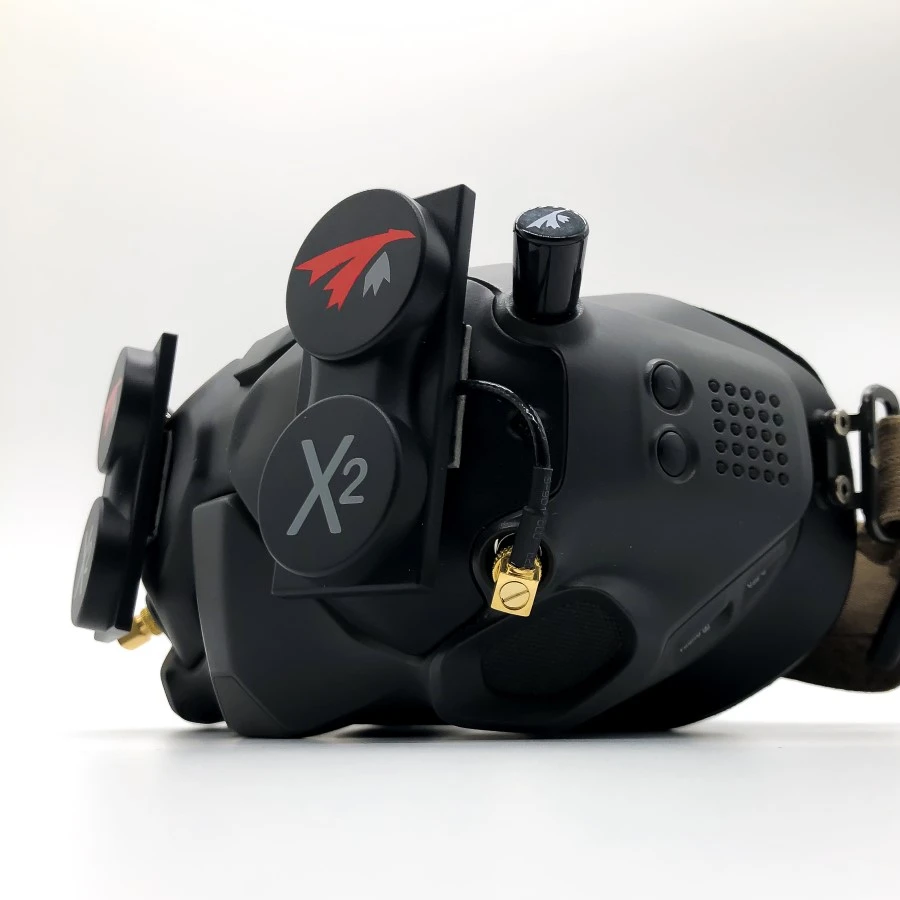

TrueRC Combo antenna pack for DJI Goggles. More gain and more convenience! This is the adaptation of the all mighty X2-AIR into a slick low profile face mount for the DJI goggles . Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubby and performances never been so convenient!
Features:
– Circularly Polarized
– Sector type beam shape (widest on horizontal)
– Mount direct on DJI faceplate with included adhesive backing
– Compact low-profile design on your goggles, easy to store and transport
– High 13 dBic for unsurpassed long range and signal penetration
– Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
– Super wide 150 degree beam for each antenna combining to 180deg beam width
– Custom knurled RP-SMA connectors
– Highly compact included stubby antennas for combined directional and omnidirectional coverage
Specifications (X2-Air):
– Bandwidth: 5.1GHz-7.0GHz
– Gain: 13 dBic
– Polarization: LHCP or RHCP
– Beam-width Horizontal*: 150deg
– Beam-width Vertical*: 62deg
– Hor. beam @-3dB**: 75deg.
– Vert. beam @-3dB**: 34deg.
– Connector: Custom knurled RP-SMA
– Dimension: 72mm x 34mm x 15mm
– Weight: 20g each
– Include adhesive mount for installation onto DJI FPV goggles.
Specifications (Stubby):
– Gain: 1.9dbic
– Polarization: RHCP or LHCP (Stock DJI is LHCP)
– Cross-Polar Rejection: -15 to -30dB (1.9%)
– Bandwidth: 5.6GHz-6.0GHz
– Radiation Efficiency: 99%
– SWR: <=1.5:1
– Weight: 3.7 g
– Size: 12.7mm x 20mm
– Connector: RP-SMA

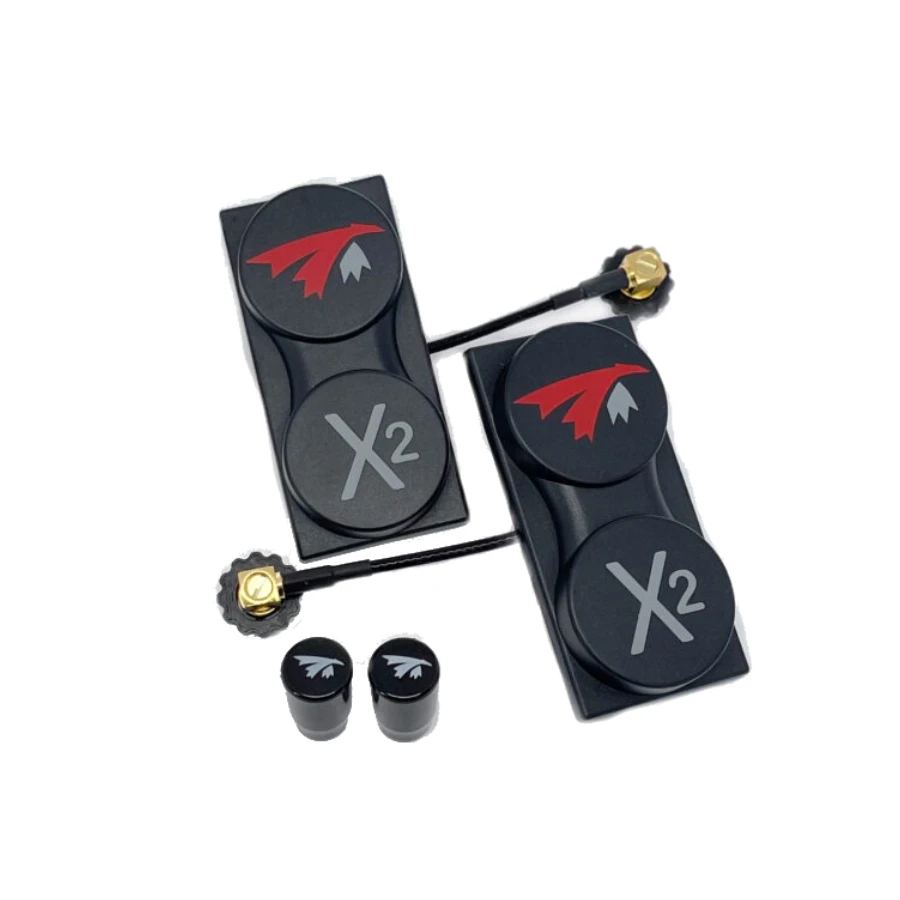

Package Contents:
– 2x TrueRC X2-AIR MKII 5.8GHz Antennas (LHCP)
– 2x TrueRC Singularity Stubby Antennas (LHCP)
