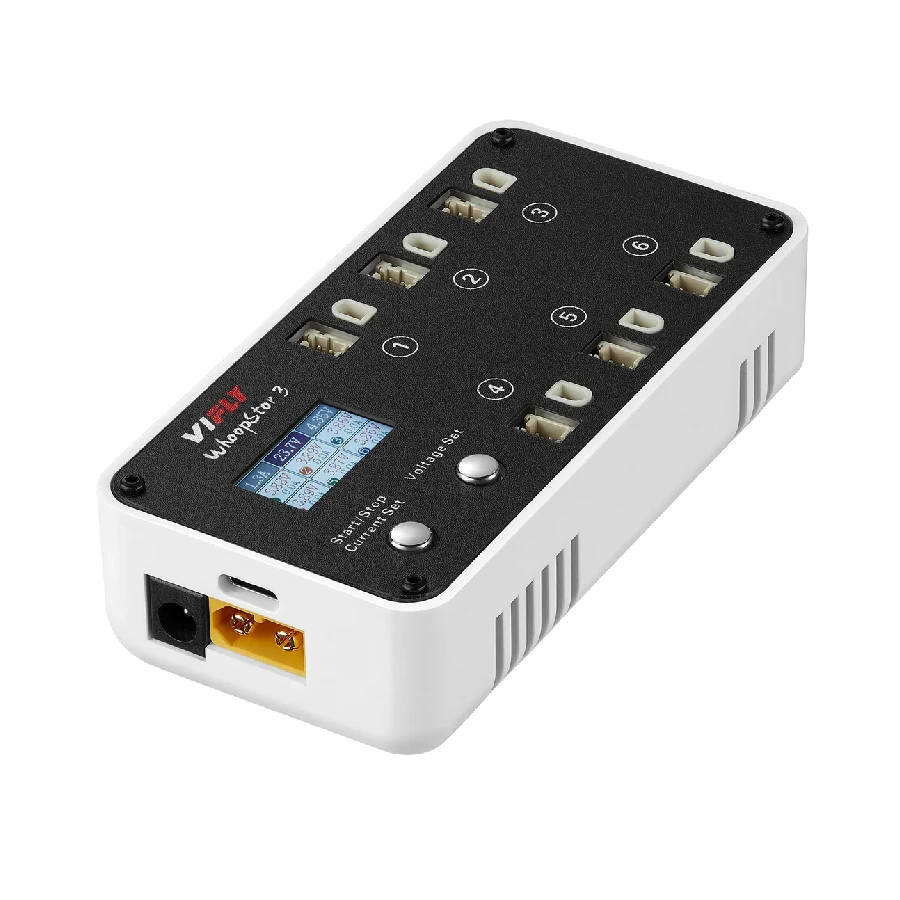

VIFLY WhoopStor 3 1S LiPo Battery Charger (PH2 / BT2.0)

Overview:

The VIFLY WhoopStor 3 is a 1S LiPo/LiHV battery charger that can charge upto 6 batteries at once and can be powered from DC, USB Type-C (PD3.0, QC2.0,BC1.2) or direct from an 2-5S XT60 battery. The charger is compatible with both PH2.0 and BT2.0 batteries. The Whoopstoor 3 includes a colour screen and built in buzzer.

Storage Charger and Discharge
VIFLY WhoopStor 3 is the first 1S LiPo charger with storage function. It includes both charging and discharging functions. Just select your target voltage, it will do it for you automatically.

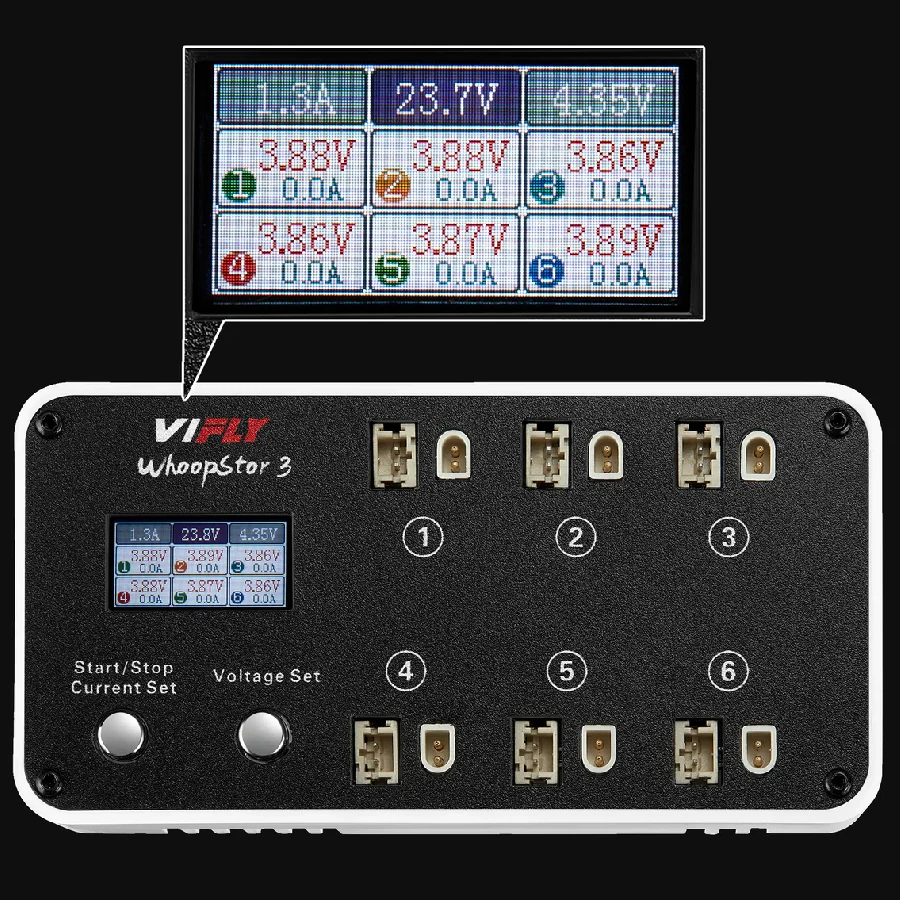

Colorful LCD Screen, Intuitive Interface
VIFLY WhoopStor 3 installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

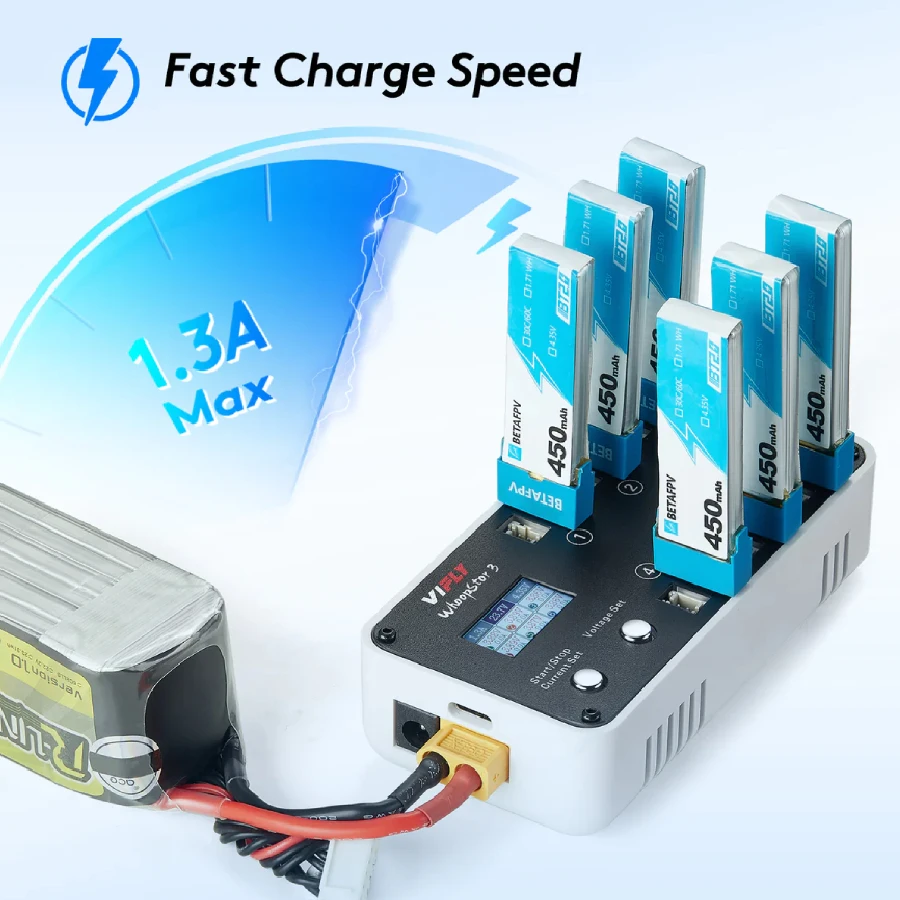

Fast Charge Speed
The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to charge the battery with 2C rate.

6 Independent Ports
6 independent charging channels, not necessary to ensure the batteries are all the same voltage and same size. You also can unplug one that’s done and plug in another while the others are still charging.

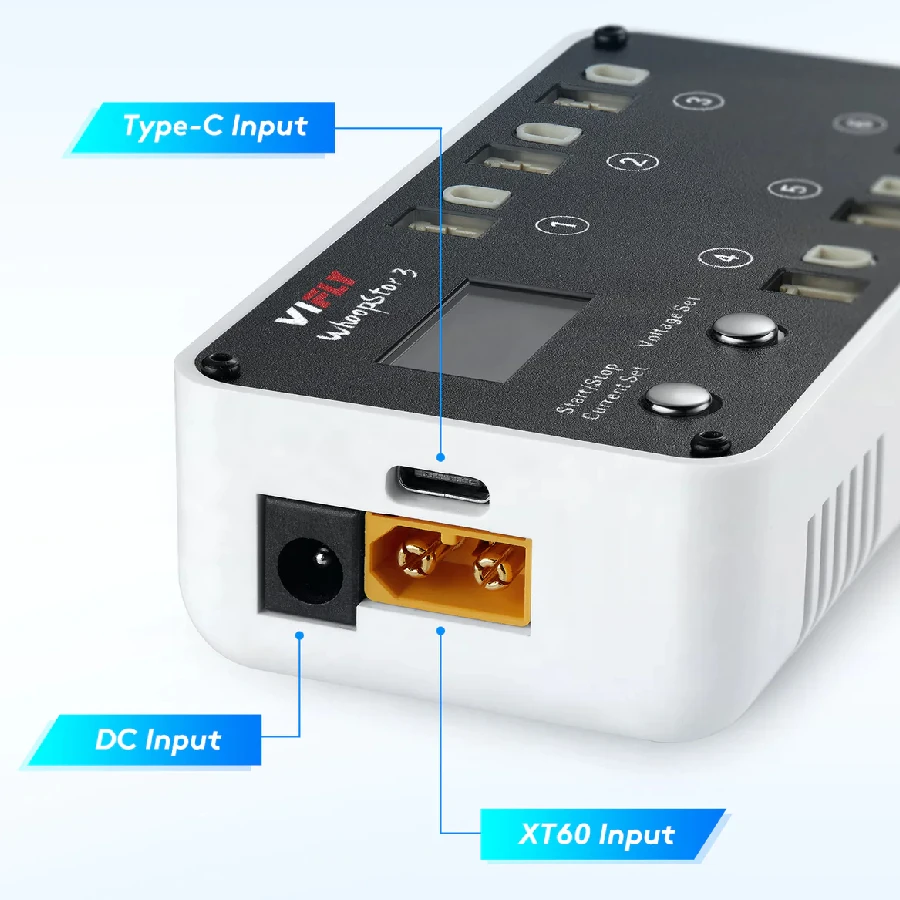

Multiple Power Input
It supports Type-C, XT60 and DC power input. Type-C used PD and QC protocol that supports fast charge at 9V and 12V, but it not supports regular 5V USB charge.

Memory Function
VIFLY WhoopStor 3 added the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.

Buzzer Indication
VIFLY WhoopStor 3 added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.

Specifications:

– Dimensions: 108*55*30mm
– Weight: 140g
– Input connector: XT60, DC(5.5*2.1mm), USB-C(PD3.0)
– Input voltage range: 6V-26V (XT60 2S-6S Battery, DC), 9V-20V (USB-C)
– Minimum input power: 40W
– Max charging current: 1.3A/port
– Support battery connector: PH2.0 & BT2.0
– Battery type: LiPO 4.20V(±0.05V) / LiHV 4.35V (±0.05V)
– Storage voltage: 3.80V (±0.05V) / 3.85V (±0.05V)
– Max discharge power: 1.1W/port

Includes:

1x VIFLY WhoopStor 3 Charger

Battery Safety: Please take LiPo battery safety seriously, please see our safety sheet.
