ZOHD Alpha Strike EDF Jet (PNP)

Overview

The ZOHD Alpha Strike EDF Jet (PNP) is a unique and innovative FPV plane that features a sharp airfoil and an aerodynamic airframe. It is part of the ZOHD MKIII series of FPV wings that combine sleek design, high performance and immersive experience.

The ZOHD Alpha Strike EDF Jet (PNP) is made of high-quality EPP material with a wingspan of 620mm and a length of 650mm. It weighs around 900g and can reach speeds of up to 150 km/h with a 4S LiPo battery. It comes with a 2216-2200kv motor, a 40A ESC with 5V/3A BEC, two 4.3g servos and a 6×4.5 propeller pre-installed. You only need to add your own receiver, battery and FPV gear to complete the plane.

The ZOHD Alpha Strike EDF Jet (PNP) is designed to be easy to assemble, fly and land. It has a detachable wing and tail fins that can be snapped together without glue. It has an innovative twin bay design that offers limitless options for setup. It has a specially-designed servo arm “bunker” structure that will protect your servo arm from impacts and minimize drag. It has excellent flight characteristics, allowing you to glide smoothly in light wind conditions and perform agile maneuvers with precision.

This PNP edition includes pre-installed motor, ESC, Servos and hardware. Some assembly will still be required.

Features:

– Innovative designed Sharp Airfoil and aerodynamic airframe.
– ZOHD MKIII blended wing body configuration
– Improved air rolling design to protect your gear
– Innovative Twin Bay Design: Limitless options for setup

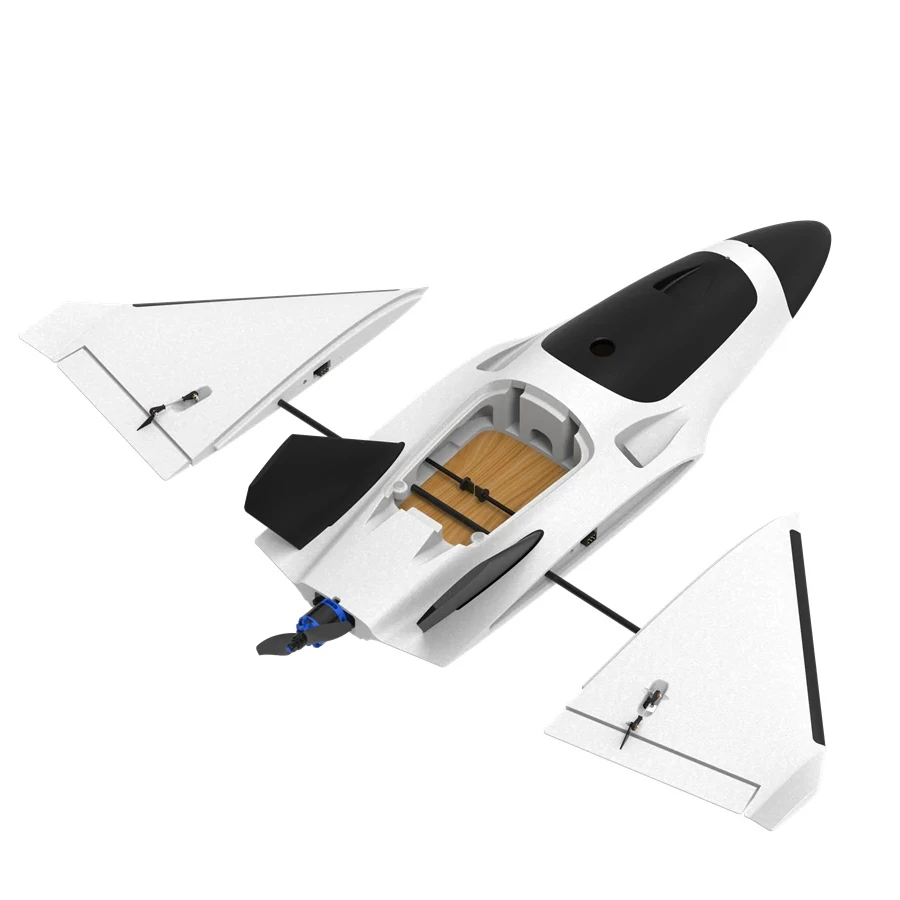

– Detachable wing and tail fins, portable and easy to pack
– EPP molded airframe, built-in carbon fiber spar for enhancement
– Specially-designed servo arm “bunker” structure will protect your servo arm from impacts and minimize drag
– Compatible with most of the racing quad power systems and FPV gear
– Skin protection to avoid scratches when landing
– Molded marks for “CG” under the wing
– Molded hand grip slots for a worry-free hand launch
– Super stable flying performance
– Looks AMAZING in the sky!

Specifications:

– Item Name: Alpha Strike
– Material: High-Quality EPP
– Wingspan: 620mm (24.41”)
– Length: 650mm (25.59’’)
– Wing size: 15.6 dm²
– MAX Flying Speed: 185+km/h
– Recommended MAX takeoff weight: 900g
– Recommended Battery: – Battery: – 4S 2200-3200mAh 50C or higher. Consider CG.

Included PNP Parts
– Motor: 2216-2200kv
– ESC: 40A w/5v 3A BEC with XT60
– Servos: 4.3g *2PCS
– Propeller: 6*4.5

Includes:

1x ZOHD Alpha Strike EDF Jet (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
