ZOHD Dart 250G (Kit)

Overview

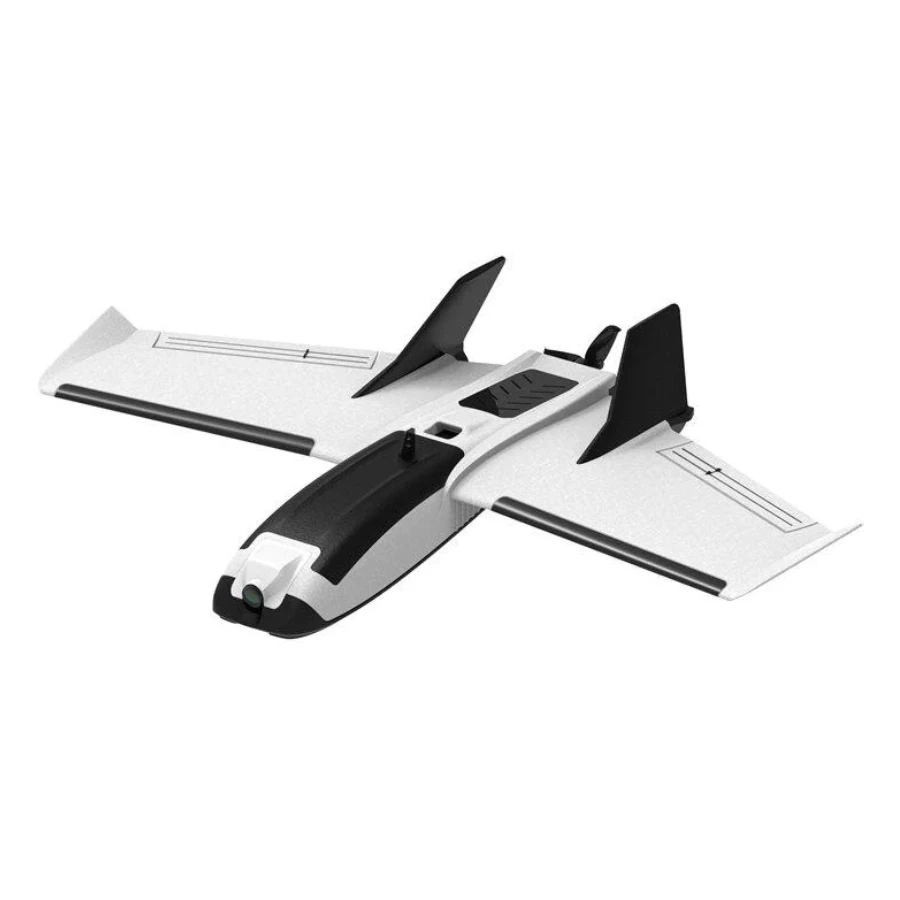

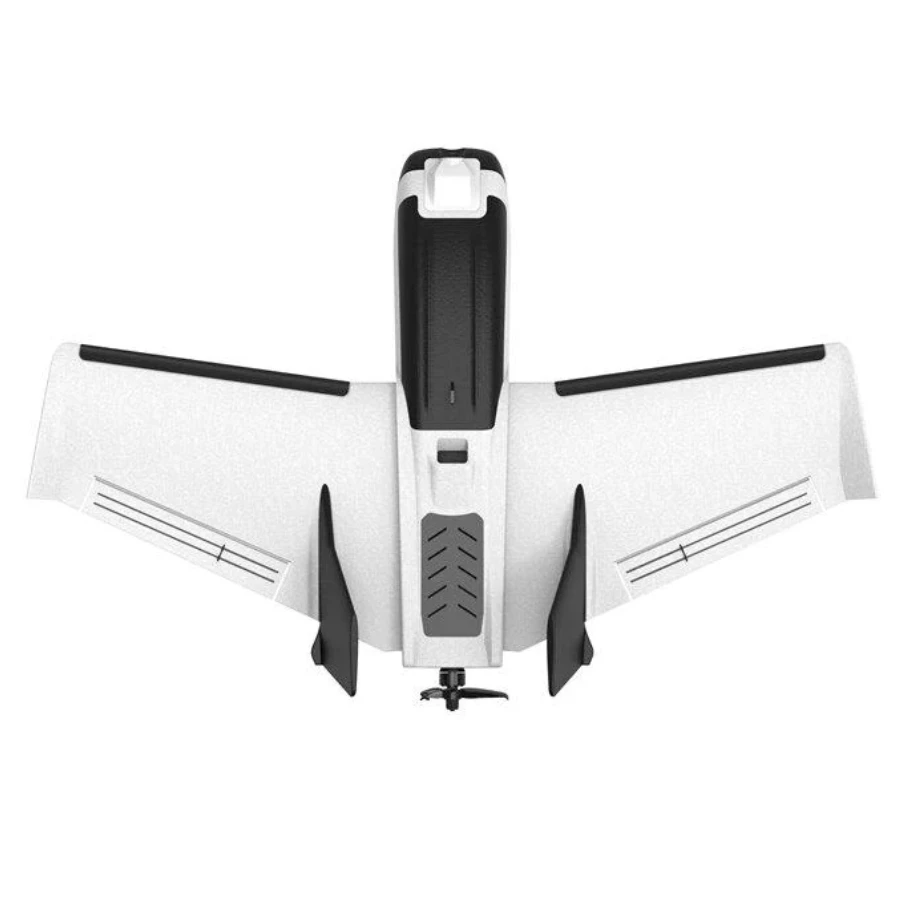

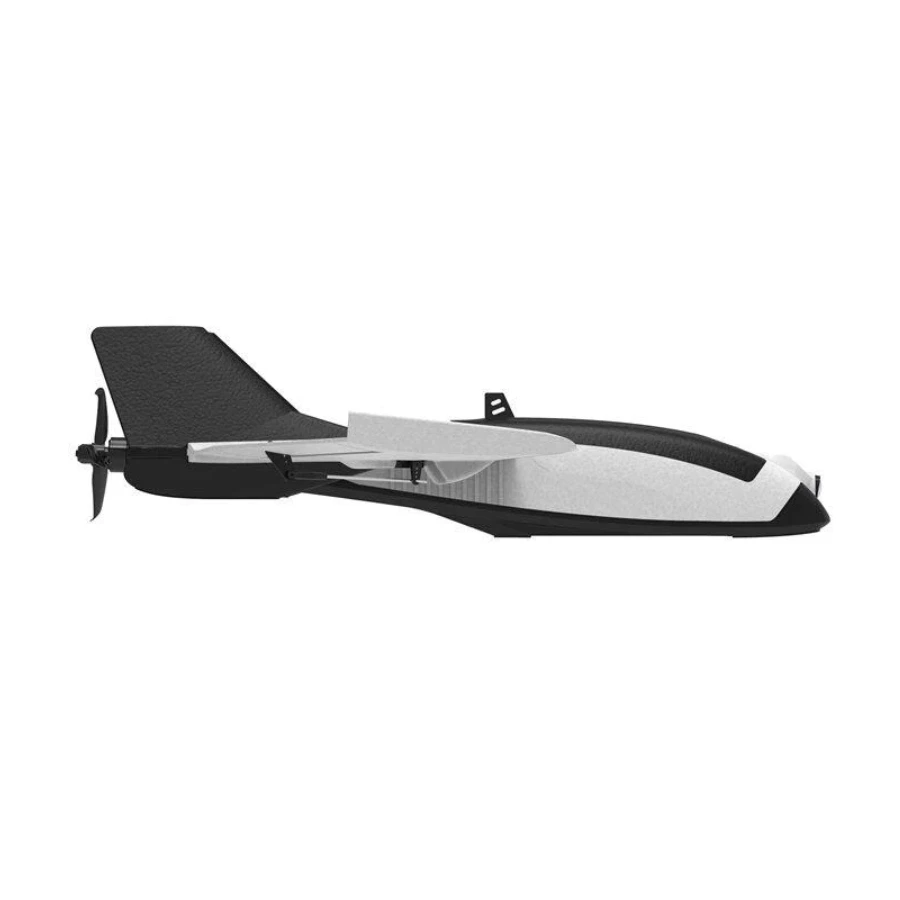

The ZOHD Dart 250g (Kit) is a small and lightweight FPV wing that can fly under 250 grams with full FPV gear. It is made of durable EPP material with a built-in carbon fiber spar for reinforcement. It has a wingspan of 570mm and a length of 379mm, making it easy to transport and fly in small areas.

The plane has a large battery bay that can fit Lipo or Li-ion batteries, and a nose camera bay that is compatible with many FPV and AIO cameras in the market. It also has a Teflon cover for the fuselage bottom, a servo arm protection, and a main wing leading edge cover for crash resistance.

The ZOHD Dart can fly at speeds of 18-80km/h and has a bump mark for CG under the main wing. The ZOHD Dart 250g (Kit) is a great choice for beginners, proximity flyers, and long range pilots who want a fun and versatile FPV win

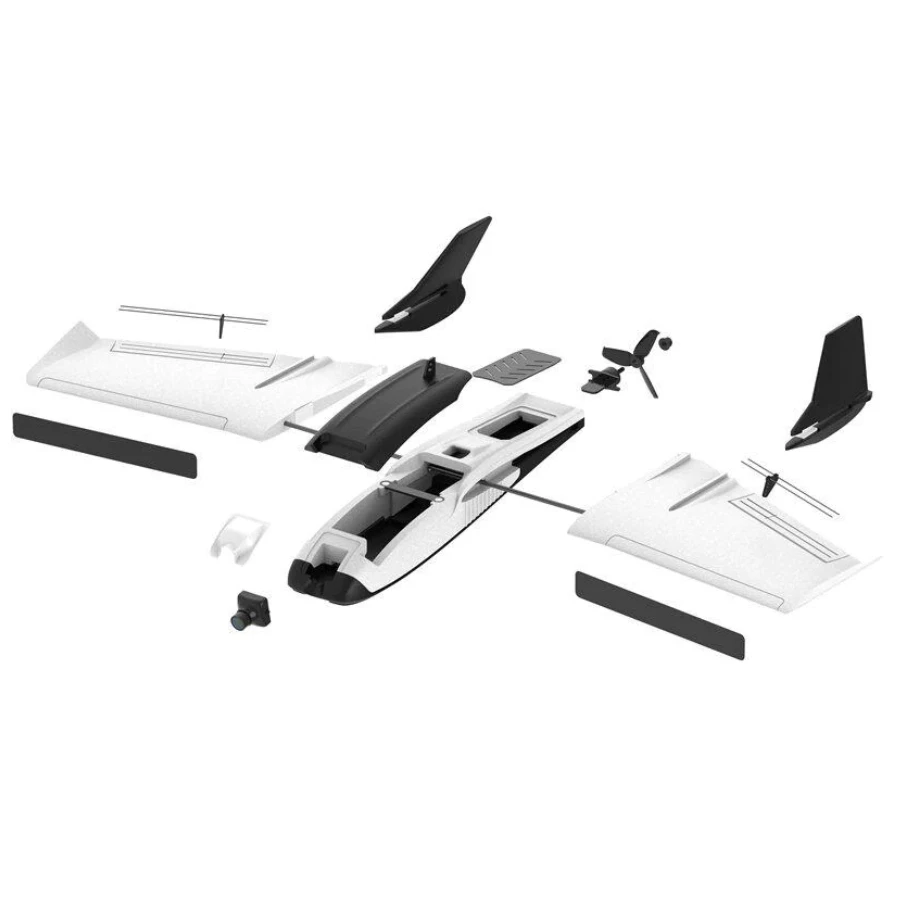

This Unassembled Kit edition is foam only (NO motor, Servos or ESC etc included). Assembly required.

Features:

– AUW is less than 250g, ideal to comply with Sub250g regulations
– Durable EPP material, built-in CF spar for enhancement, crash resistant
– Being light-weight will be safe to fly anywhere, anytime.
– Glue-free assembly, the main wing and tails come with pre-applied 3M adhesive, just peel it off and install them
– Large battery bay for extended flight time
– Nose camera bay compatible with many FPV and AIO cameras on the market
– Teflon cover for the fuselage bottom, super durable, protecting the fuselage bottom from scratches
– Servo arms are well protected by an EPP hump
– Built-in CF rod in the ailerons will give precision and sharp action to your inputs
– Dedicated equipment bay for Flight Controller and GPS
– Main wing leading edge cover for those unexpected impacts
– Textured areas on both side of the fuselage, for more secure hand launch grip
– Optimized air-cooling design will keep your gear safe from overheating

Specifications:

– Item Name: Dart 250G
– Material: High-Quality EPP
– Wingspan: 570mm (22.44”)
– Length: 379mm (14.92in”)

Recommended Parts (Not included)
– Motor: 1406-2600kv
– ESC: 30A w/5v 2A BEC
– Servos: 4.3g *4PCS
– Propeller: 5×5 prop for 2S battery  / 3×5 3-blade prop for 3S battery.

Includes:

1x ZOHD Dart 250G (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
