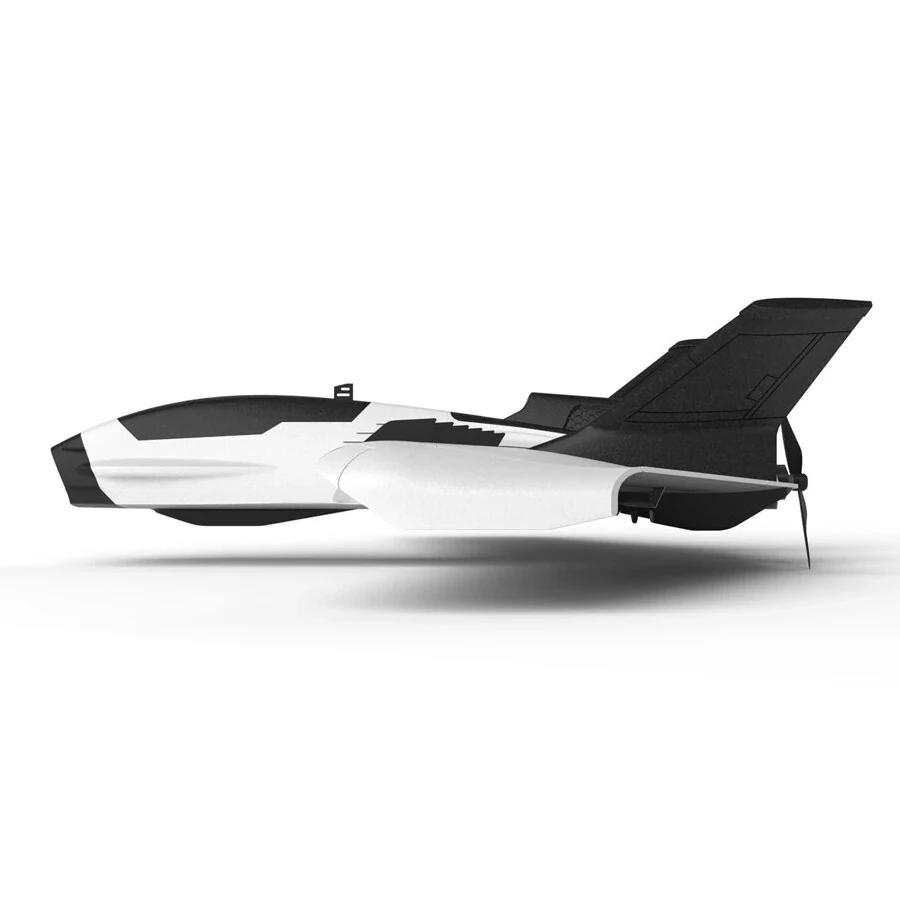

ZOHD Dart XL Extreme V2 (PNP)

Overview

The ZOHD Dart XL Extreme V2 (PNP) is a forward swept FPV wing that combines style, performance and portability. It is made of biodegradable BEPP material that is durable and eco-friendly. It features a multi-camera nose that can fit most FPV and HD cameras, a powerful motor and ESC, metal gear servos, and a large equipment bay. It also has a detachable wing and vertical fins for easy transport and storage.

The ZOHD Dart XL Extreme V2 (PNP) has a wingspan of 1000mm (39.37”) and a length of 596mm (23.4”). It has a wing area of 19.8dm² and a wing load of 60.6g/dm² (Max.). It can fly with a 4S 3300mAh battery (not included) for long range and endurance. It has a propeller size of 9×4.5 and a motor size of 2216-1300KV. It has a 30A ESC with 5V 3A BEC and 9g metal gear servos.

The ZOHD Dart XL Extreme V2 (PNP) is designed to work with modern flight controllers, high power video transmitters, and long range systems. It has reversed wingtips, vortex generators, and a computer optimized air flow pod for improved aerodynamics and stability. It has impact resistant protection covers for the main wings leading edge and landing skids. It also has exclusive VTX / RX bays with excellent air flow and away from interferences.

This PNP edition includes motor, ESC, Servos, propeller and hardware. Some assembly will still be required.

Features:

– Precision is the name of the game: Thanks to its revolutionary and careful design, the plane performs and looks like no other wing in the market.
– Small size airframe optimized for long range and portability… not to mention the COOL factor!
– Carefully chosen airfoil gives the aircraft an incredible lift power and excellent handling
– Detachable wing and vertical fins make it portable for an easy transport and deploy
– Keeping the tradition: Dart means swept-forward wing and swept-forward wing means stylish design and natural stability in turns and low speeds
– Fly Green: New ZOHD’s exclusive BEPP material isn’t only crash resistance, but even more important: 100% biodegradable. Future generations will thank you for that.
– Light-weight composite hard nose for better protection of your expensive camera gear
– Multi-camera nose: Compatible with 99% of the FPV and HD cameras in the market: Runcam HD, 2, 3S, Swift, Split, GoPro H4-5-6-7, Session and much more!
– Reversed wingtips, provide more lift force and ensure a super efficient wing surface
– Vortex generators for improving lift efficiency and gain higher control at low speeds. Use them straight and you will have even better Yaw stability!
– Load it as much you want with a huge equipment bay!
– Computer designed optimized air flow pod, that maximizes cooling, reducing the risk of crashes for overheated electronics
– Impact resistant protection cover for main wings leading edge and landing skids
– Built-in carbon fiber tube inside main wings for enhanced performance and rigidity
– Exclusive VTX / RX bays with excellent air flow and away from interferences

Specifications:

– Item Name: ZOHD Dart XL “Extreme” V2
– Material: Biodegradable BEPP
– Wingspan: 1000mm (39.37”)
– Length: 596mm (23.46”)
– Flying speed: 25-100+km/h
– Wing area: 19.8dm²
– Wing load: 60.6g/dm² (Max.)
– Recommended Max. Flying weight: 1200g
– Recommended Battery: 4S 3300mAh  (not included)
– Max. Flying time: 40 minutes (with recommended battery)

Included PNP Parts:
– Motor: 2216 1300KV
– ESC: 30A w/5V 3A BEC
– Servos: 9g Metal Gear Digital
– Prop: 9X4.5

Includes:

1x ZOHD Dart XL Extreme V2 (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
