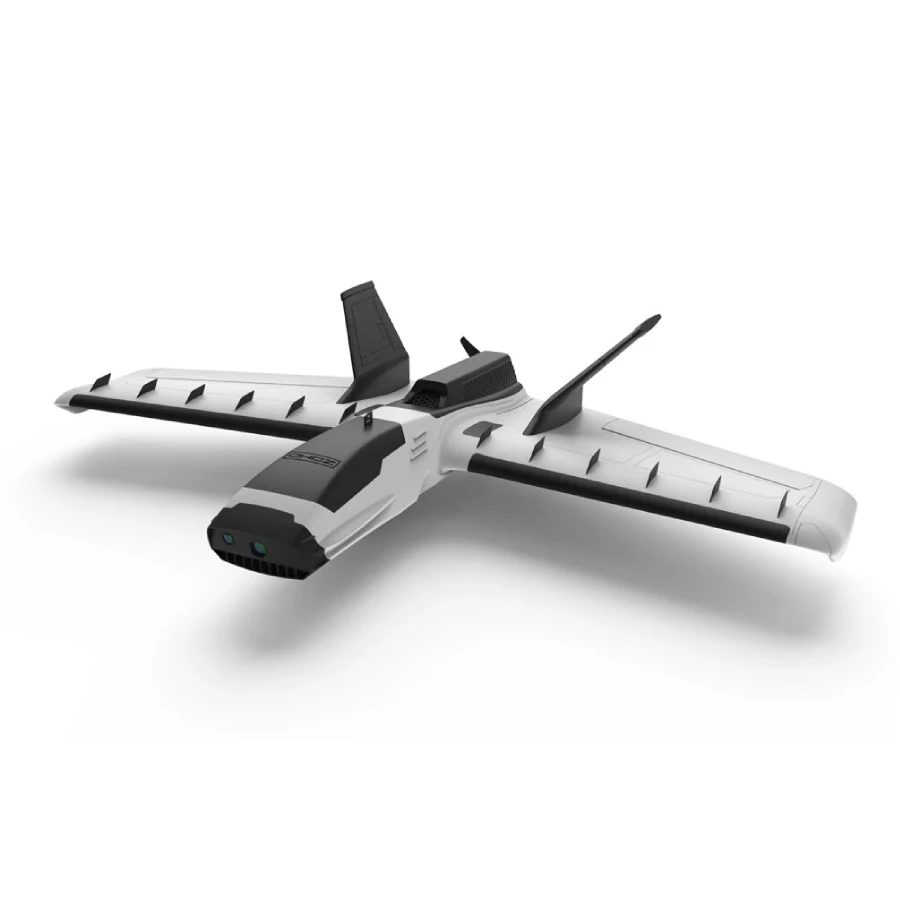

ZOHD Dart XL (Kit)

Overview

The ZOHD Dart XL is a 1000mm wingspan BEPP FPV aircraft that can fly fast and agile with a 3S or 4S battery. This RC airplane is an enhanced version of the ZOHD Dart XL Extreme, with a new motor mount, vortex generators, and detachable wings and vertical fins. It has a sleek and aerodynamic design that makes it stable and efficient in flight. It also has a large equipment bay with a multi-camera nose for FPV and HD cameras.

The ZOHD Dart XL features a biodegradable BEPP material that is durable and crash resistant. It also has a carbon fiber tube inside the main wings for enhanced performance and rigidity. It has pre-molded servos locations for rudders if you plan on using them. It has pre-cut hatches for cameras, video transmitter, GPS, and rudder servos. It also has multiple camera mount options, compatible with various FPV and HD cameras in the market.

The ZOHD Dart XL comes in kit version, which means you need to assemble it from scratch and add your own electronics. You can customise your plane with different color decals (red or black) that are included in the package. You also need to add your own motor, ESC, servos, propeller, battery, radio system, and FPV equipment

This Unassembled Kit edition is foam only (NO motor, Servos or ESC etc included). Assembly required.

Features:

– Precision is the name of the game: Thanks to its revolutionary and careful design, the plane performs and looks like no other wing in the market.
– Small size airframe optimized for long range and portability… not to mention the COOL factor!
– Carefully chosen airfoil gives the aircraft an incredible lift power and excellent handling
– Detachable wing and vertical fins make it portable for an easy transport and deploy
– Keeping the tradition: Dart means swept-forward wing and swept-forward wing means stylish design and natural stability in turns and low speeds
– Fly Green: New ZOHD’s exclusive BEPP material isn’t only crash resistance, but even more important: 100% biodegradable. Future generations will thank you for that.
– Light-weight composite hard nose for better protection of your expensive camera gear
– Multi-camera nose: Compatible with 99% of the FPV and HD cameras in the market: Runcam HD, 2, 3S, Swift, Split, GoPro H4-5-6-7, Session and much more!
– Reversed wingtips, provide more lift force and ensure a super efficient wing surface
– Vortex generators for improving lift efficiency and gain higher control at low speeds. Use them straight and you will have even better Yaw stability!
– Load it as much you want with a huge equipment bay!
– Computer designed optimized air flow pod, that maximizes cooling, reducing the risk of crashes for overheated electronics
– Impact resistant protection cover for main wings leading edge and landing skids
– Built-in carbon fiber tube inside main wings for enhanced performance and rigidity
– Exclusive VTX / RX bays with excellent air flow and away from interferences

Specifications:

– Item Name: ZOHD Dart XL “Extreme”
– Material: Biodegradable BEPP
– Wingspan: 1000mm (39.37”)
– Length: 596mm (23.46”)
– Flying speed: 25-100+km/h
– Wing area: 19.8dm²
– Wing load: 60.6g/dm² (Max.)
– Recommended Max. Flying weight: 1200g
– Recommended Battery: 4S 3300mAh  (not included)
– Max. Flying time: 40 minutes (with recommended battery)

Recommended Parts (Not included)
– Motor: 2216-1300KV
– ESC: 30A w/5V 3A BEC
– Servos: 9g Metal Gear Digital
– Prop: 9X4.5

Includes:

1x ZOHD Dart XL (Kit) (Unassembled)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
