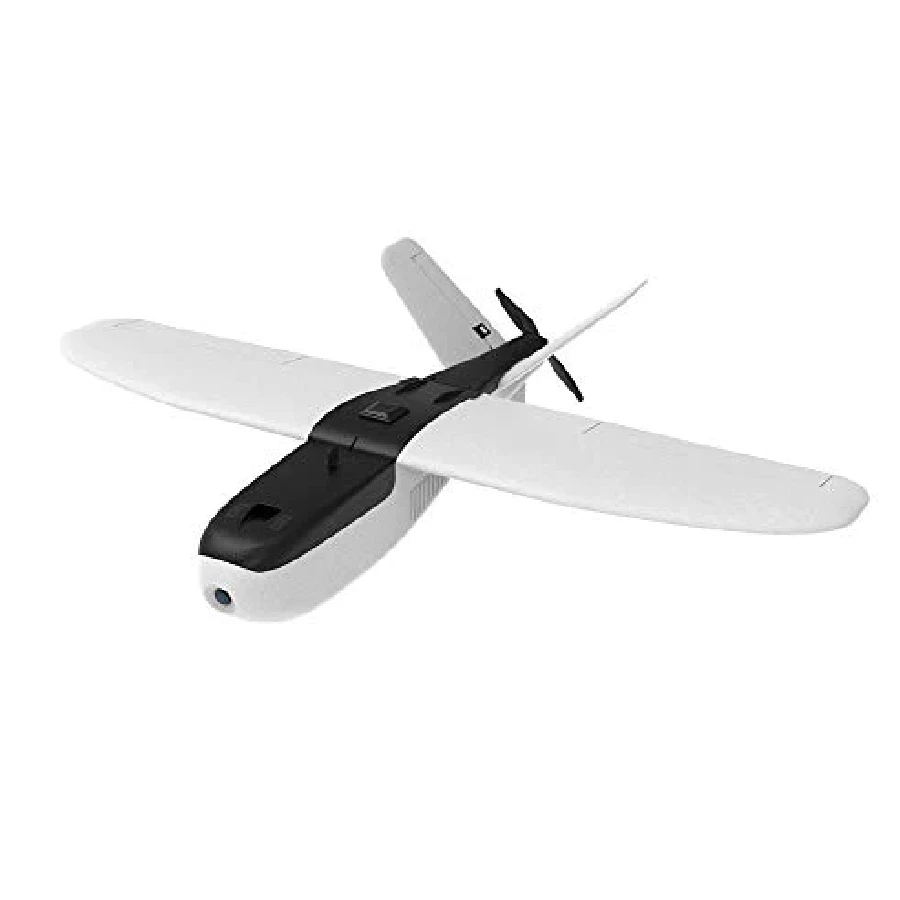

ZOHD Nano Talon EVO (PNP)

Overview

The ZOHD Nano Talon EVO (PNP) is a compact and versatile FPV plane that can be easily transported and assembled. It features a straight wing design for stable and agile flight, a powerful SunnySky motor with a 30A ESC, and four metal gear servos. The plane has a large battery bay that can accommodate 3S to 4S LiPo batteries or 4S Li-Ion batteries, and a built-in carbon fiber spar and plywood reinforcement for durability. The plane also has an optional Teflon cover for the fuselage bottom, a NACA air-inlet for cooling, and a belly mapping camera bay for aerial photography. The ZOHD Nano Talon EVO (PNP) is an ideal choice for FPV enthusiasts who want a reliable and easy-to-fly plane.

This PNP edition includes pre-installed motor, ESC, Servos, Propeller and hardware. Some assembly will still be required.

Features:

– EPP molded wing, built-in CF spar for enhancement, light, flexible and crash-resistant.
– Straight wing instead of an anhedral wing to get more stable and agile attitude.
– Updated SunnySky motor with a longer shaft, compatible with regular propellers.
– Updated 9g servos from plastic gear to metal gear.
– Updated ESC from 30A with 5V 1A Linear BEC to 30A with 5V 2A Switch BEC.
– Detachable main wing and tail wing for easy transport, easy to install. Improve connections for better aileron and tails stability
– Enlarged battery bay for Lipos from 3S to 4S, and Li-Ions 18650 4S 2P 3500mAh
– Bigger NACA air-inlet provides more air cooling for FPV gear inside the fuselage.
– Built-in carbon fiber spar and extended plywood inside the fuselage for more strength in case of an impact.
– Texture marked on both sides of fuselage for a more secure hand launch grip.

Specifications:

– Brand: ZOHD
– Item Name: Nano Talon EVO
– Version: PNP
– Material: Crash Resistant EPP
– Wingspan: 860mm (33.85”)
– Length: 570mm (22.44in”)
– Flying Weight: 361g (w/o FPV gear)

Included PNP Parts
– Motor: 2204-1870KV
– ESC: 30A w/5V 2A BEC with XT60
– Servos: 9g Metal Gear
– Propeller: 6×3

Includes:

1x ZOHD Nano Talon EVO (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **
